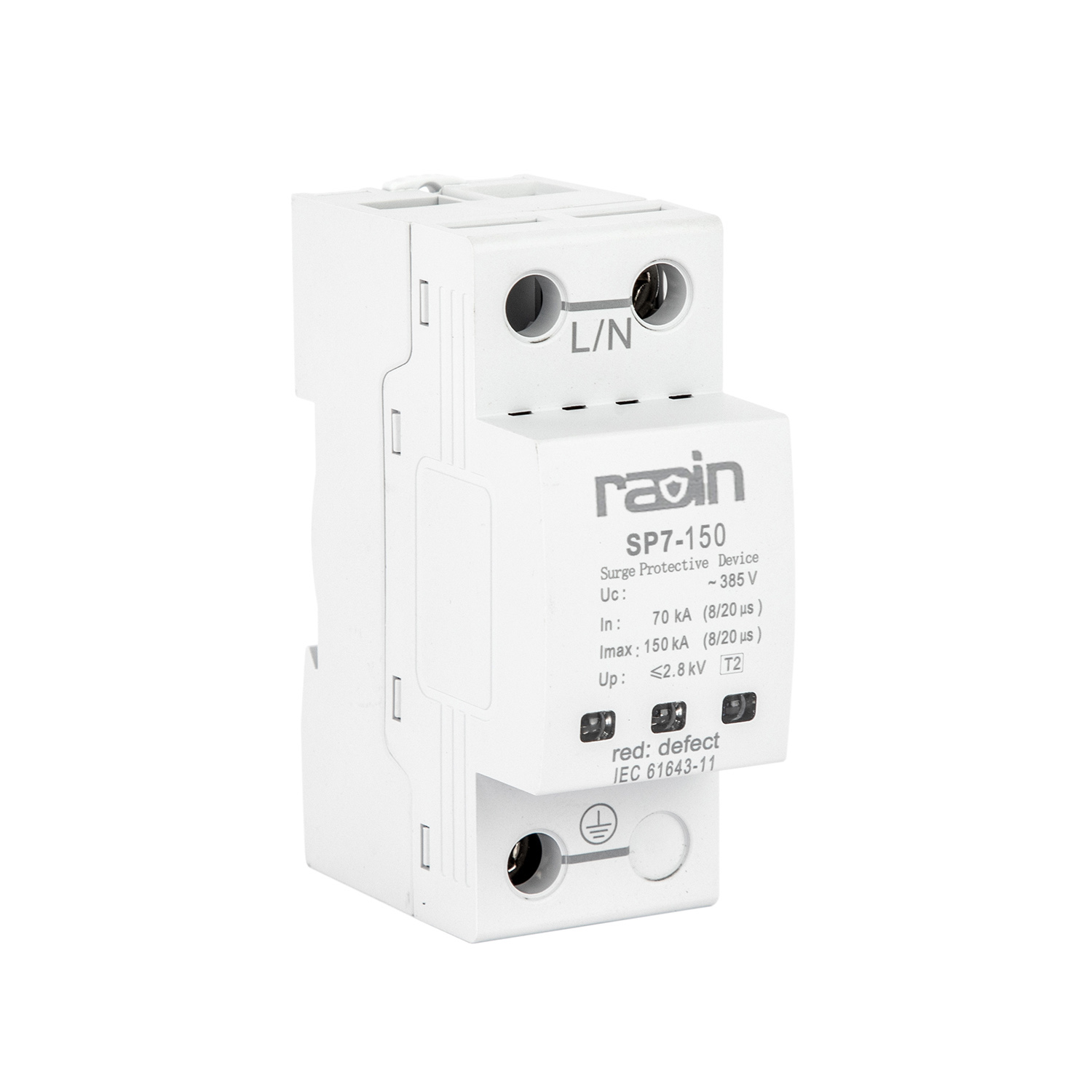

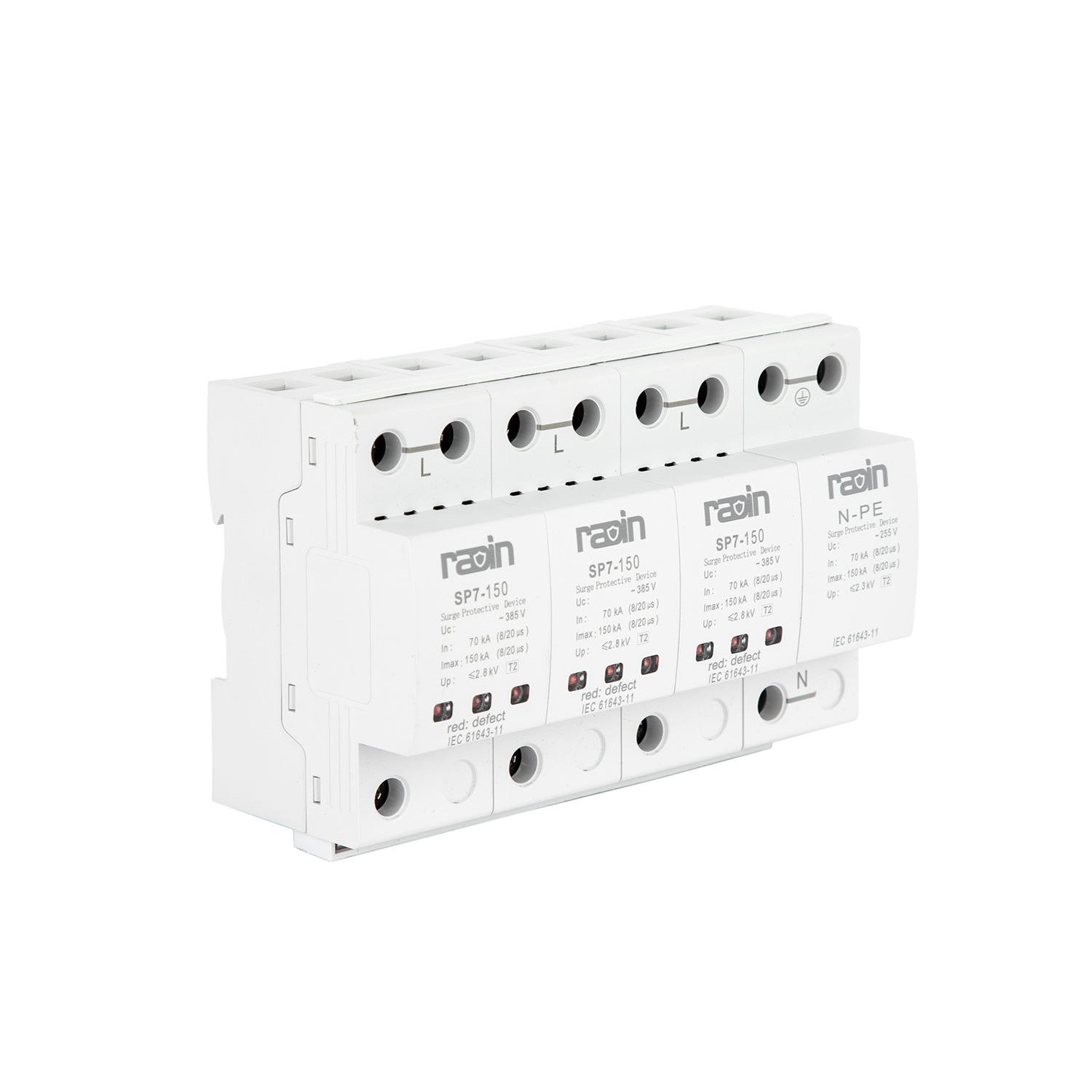

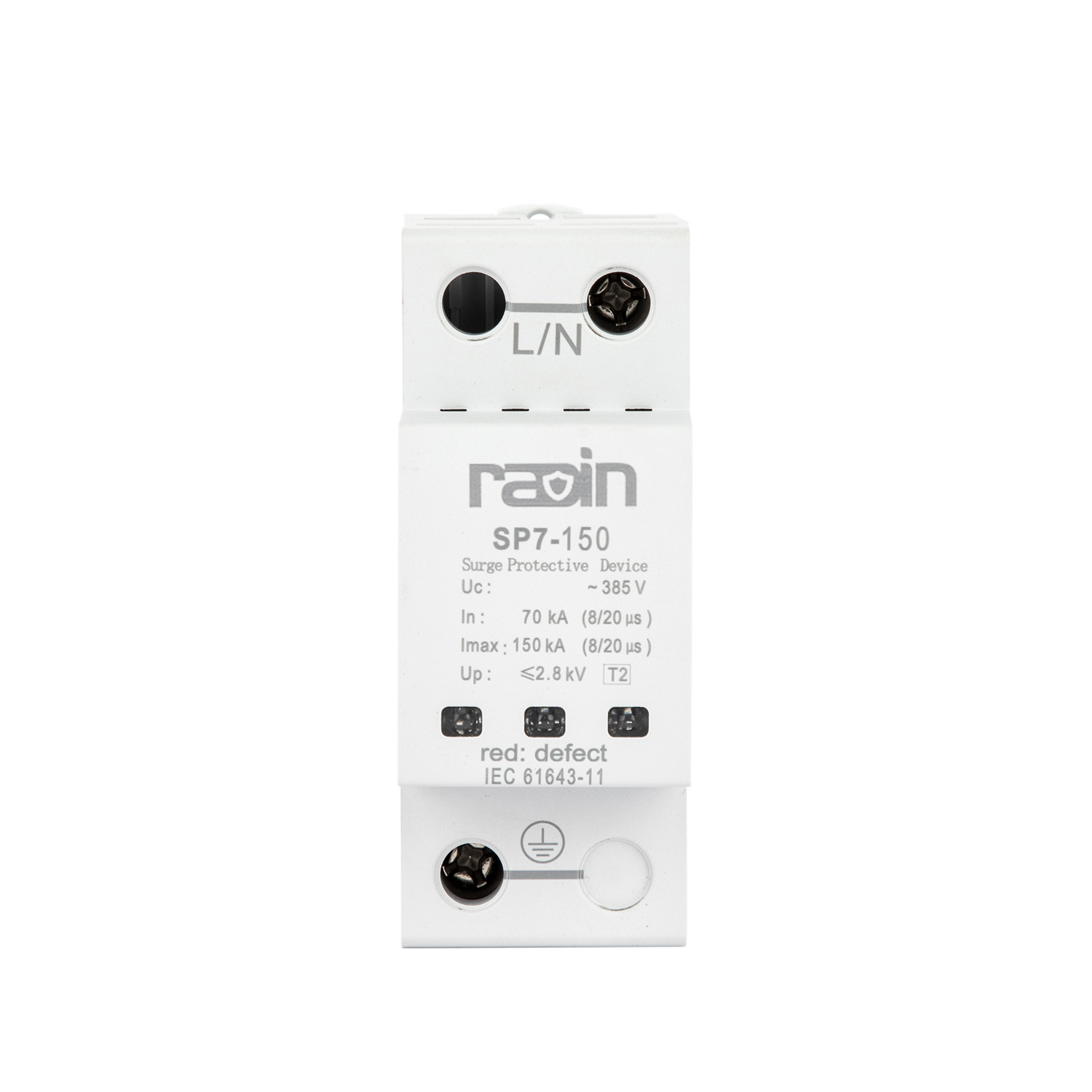

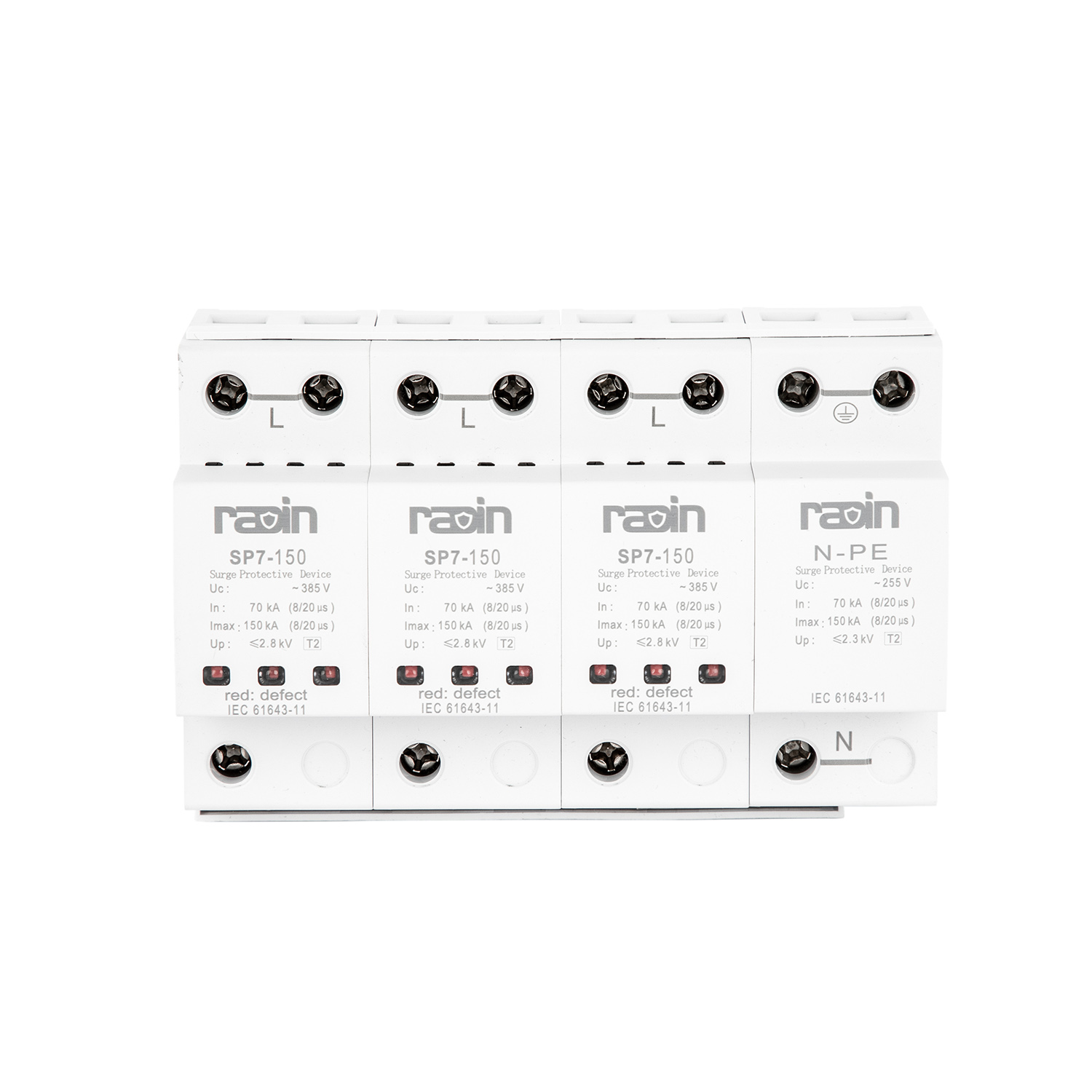

100kA Surge Protector

SP7 series surge protection device is suitable for TT, IT, TN-S, TN-C, TN-C-S and other power supply system under AC 50/60Hz and 230/400V, able to release 100kA lightning overcurrent
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button


Features

  • Optimized structure design

  • Low residual voltage of impulse current and high endurance

  • Action response time is less than 25ns

  • The color of window shows the status of the protector (red when it failing)

  • 35mm Din Rail mounting, comply with general installation requirement

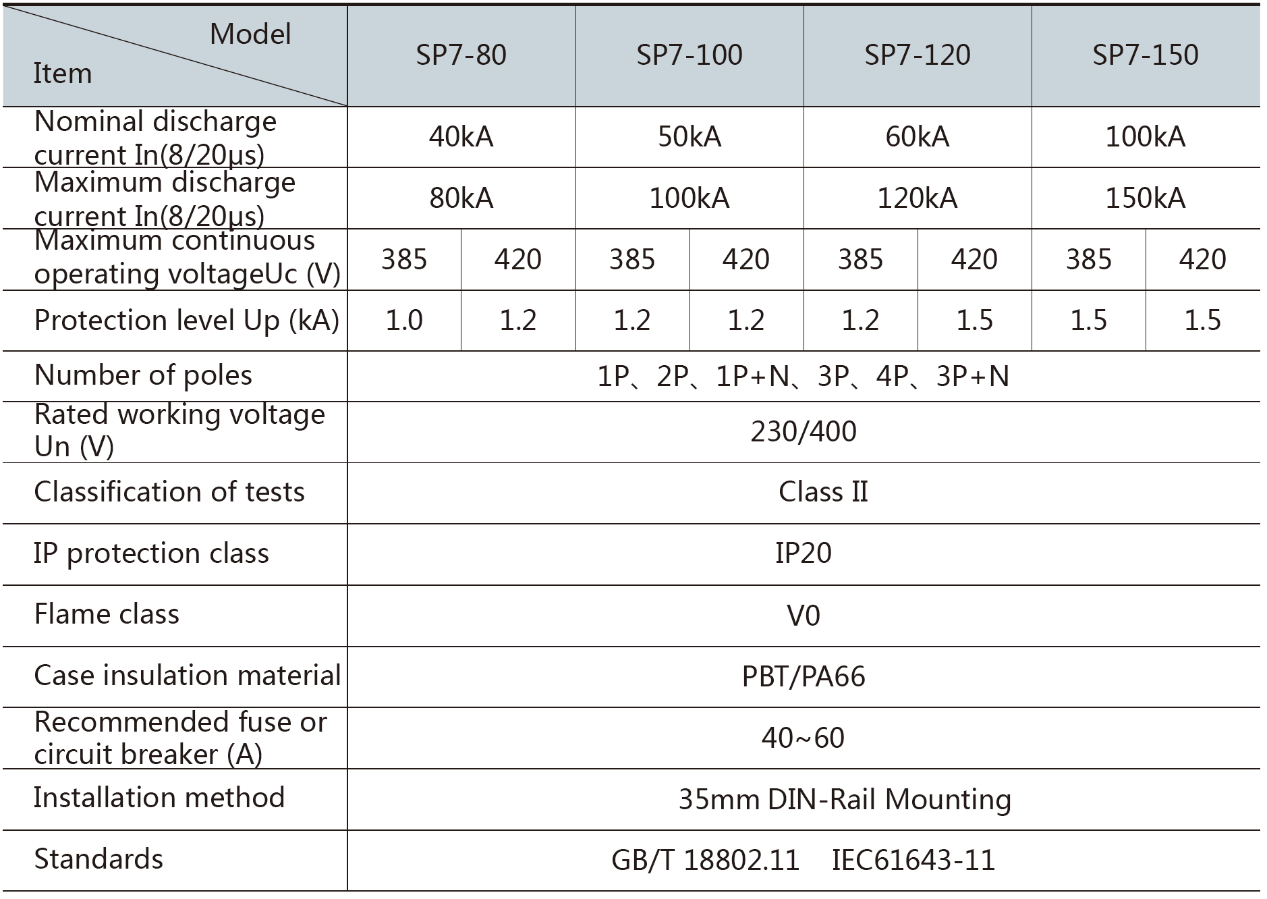

Technical Data

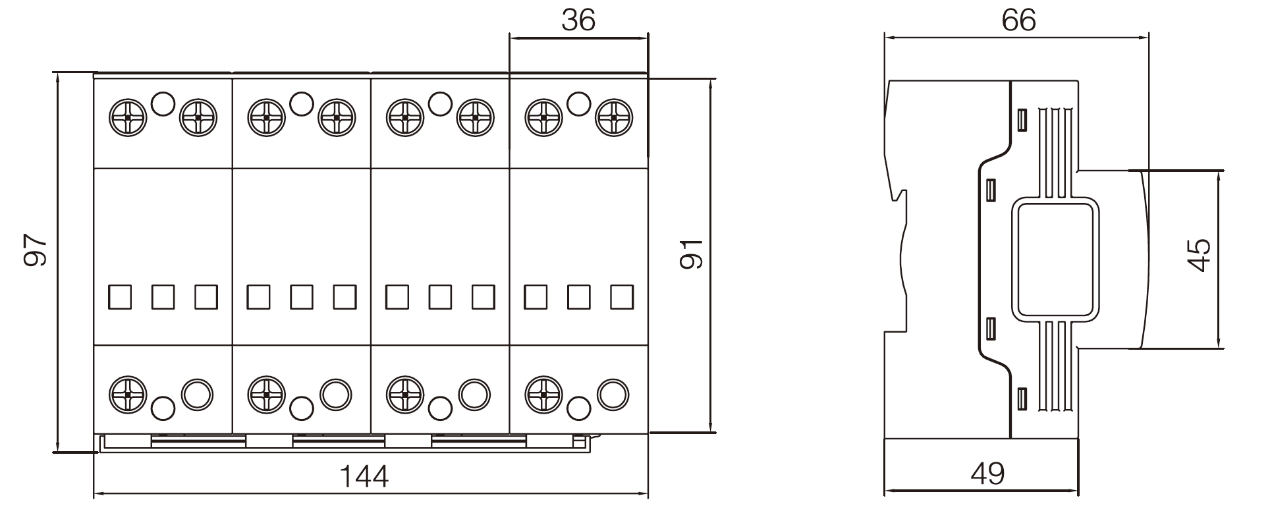

Dimensions (mm)
