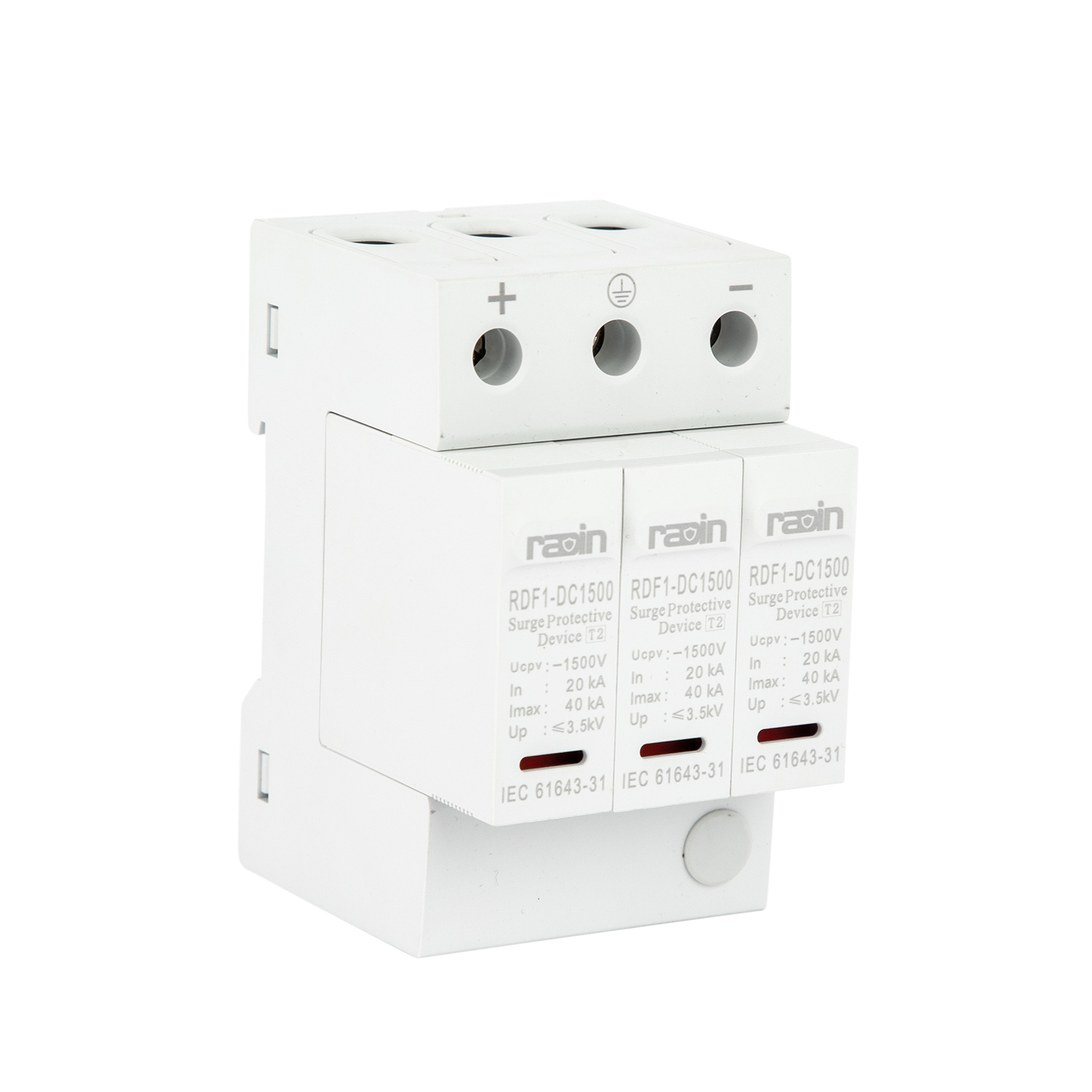

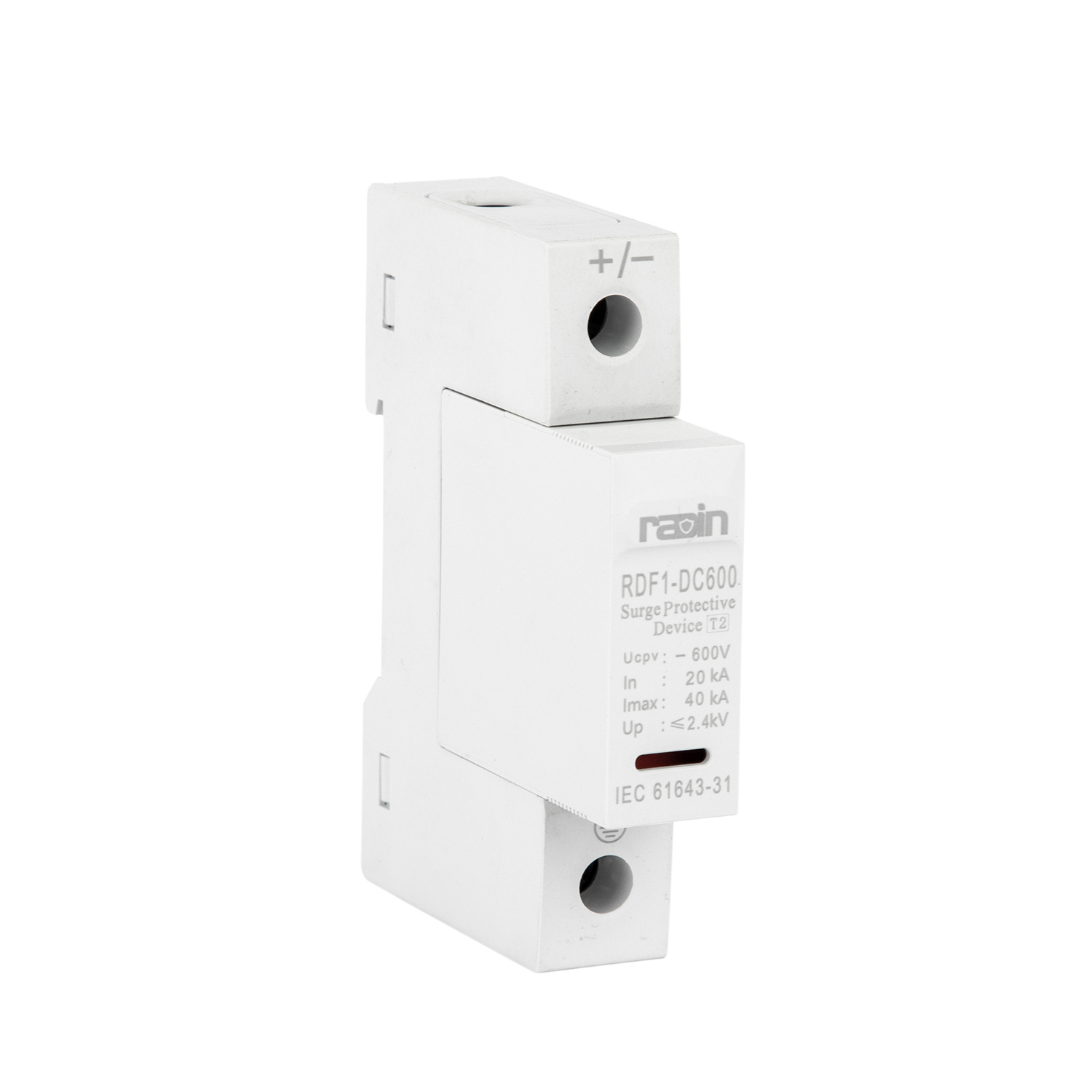

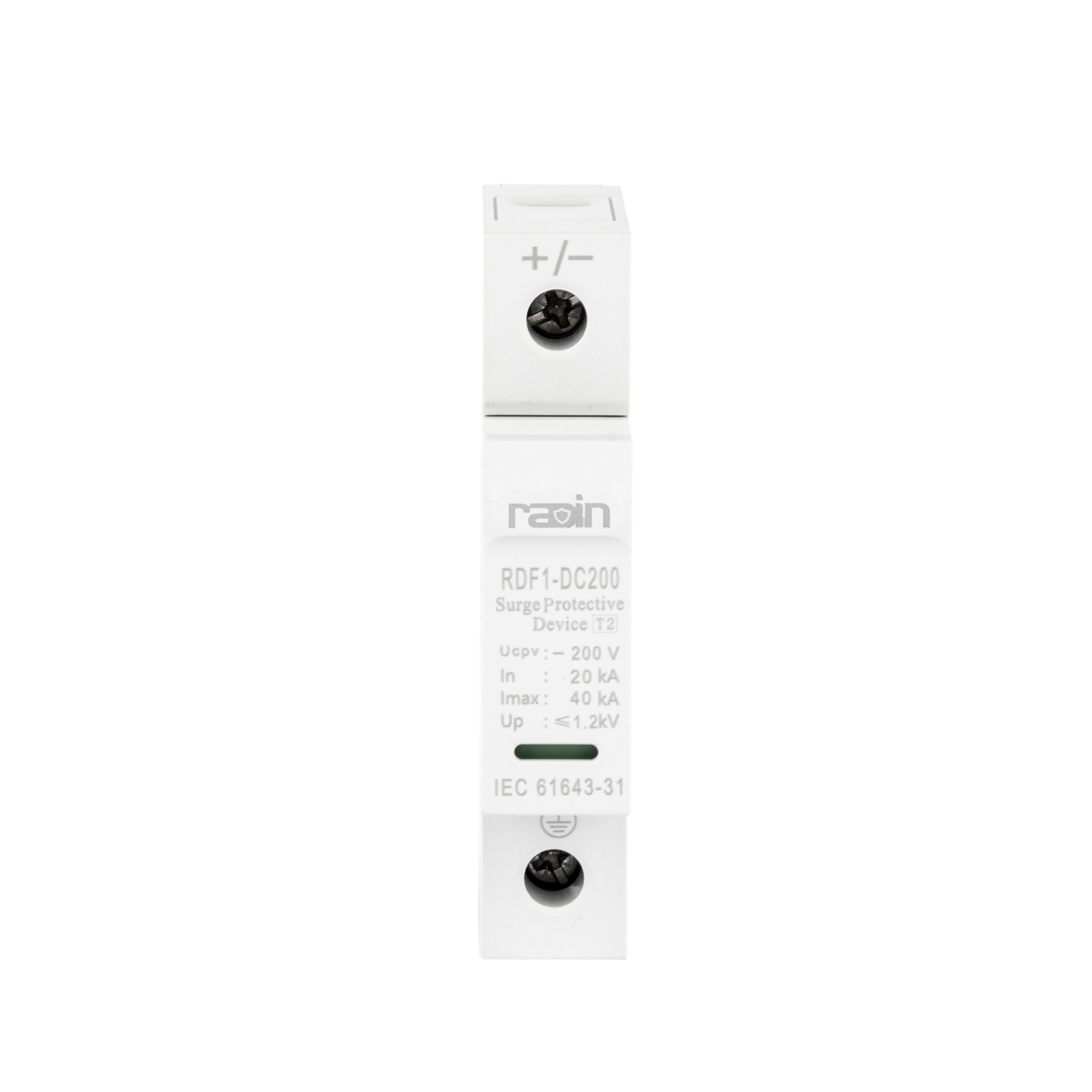

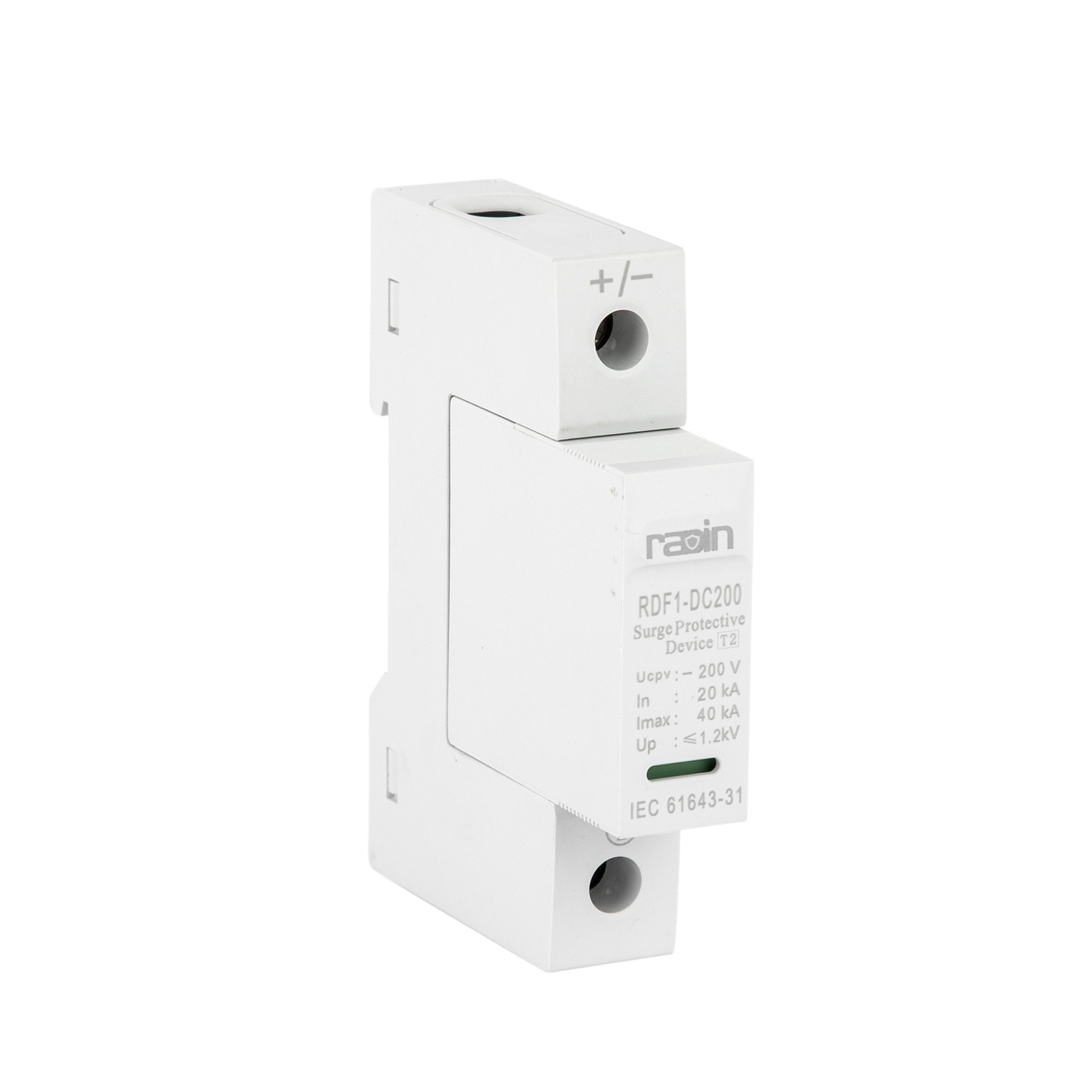

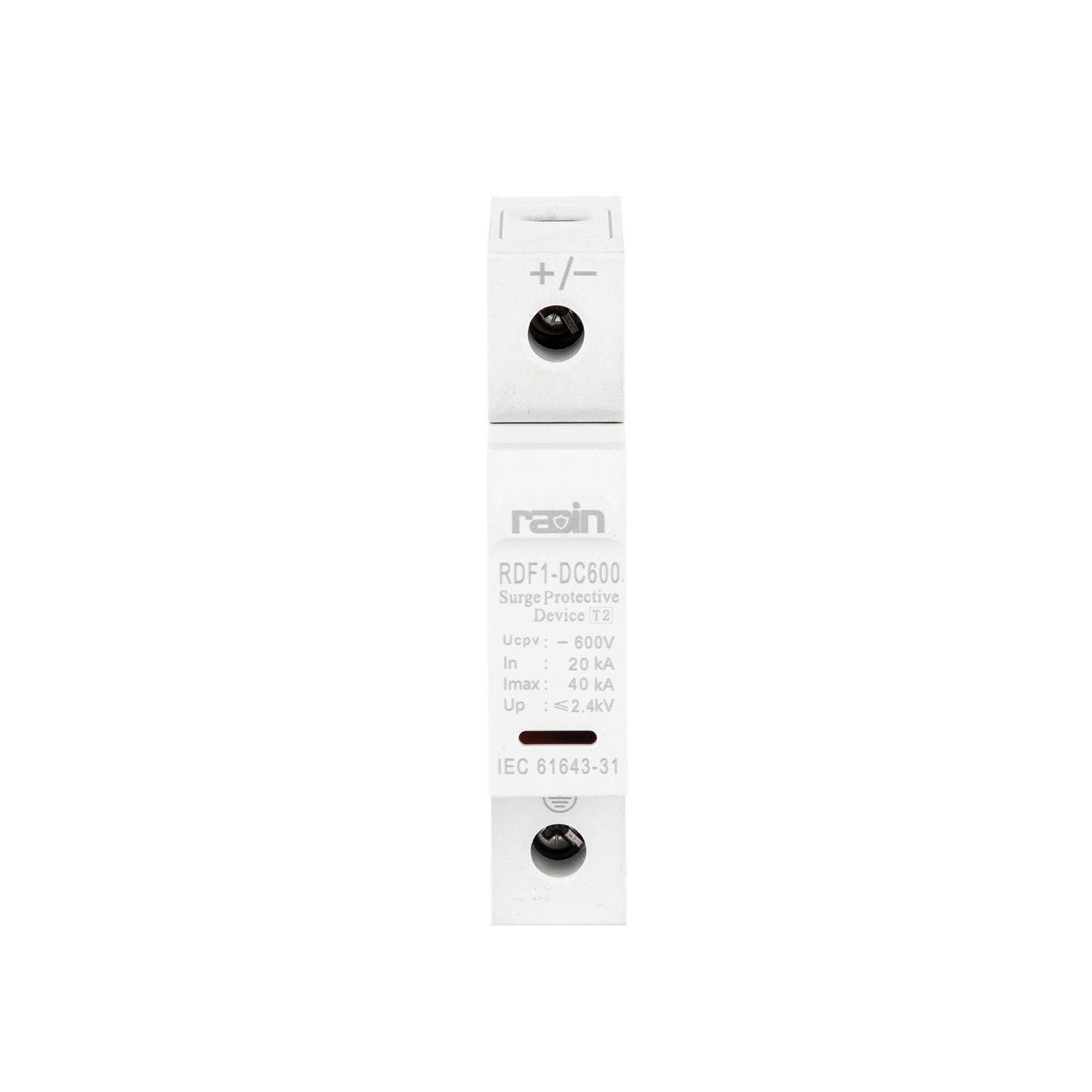

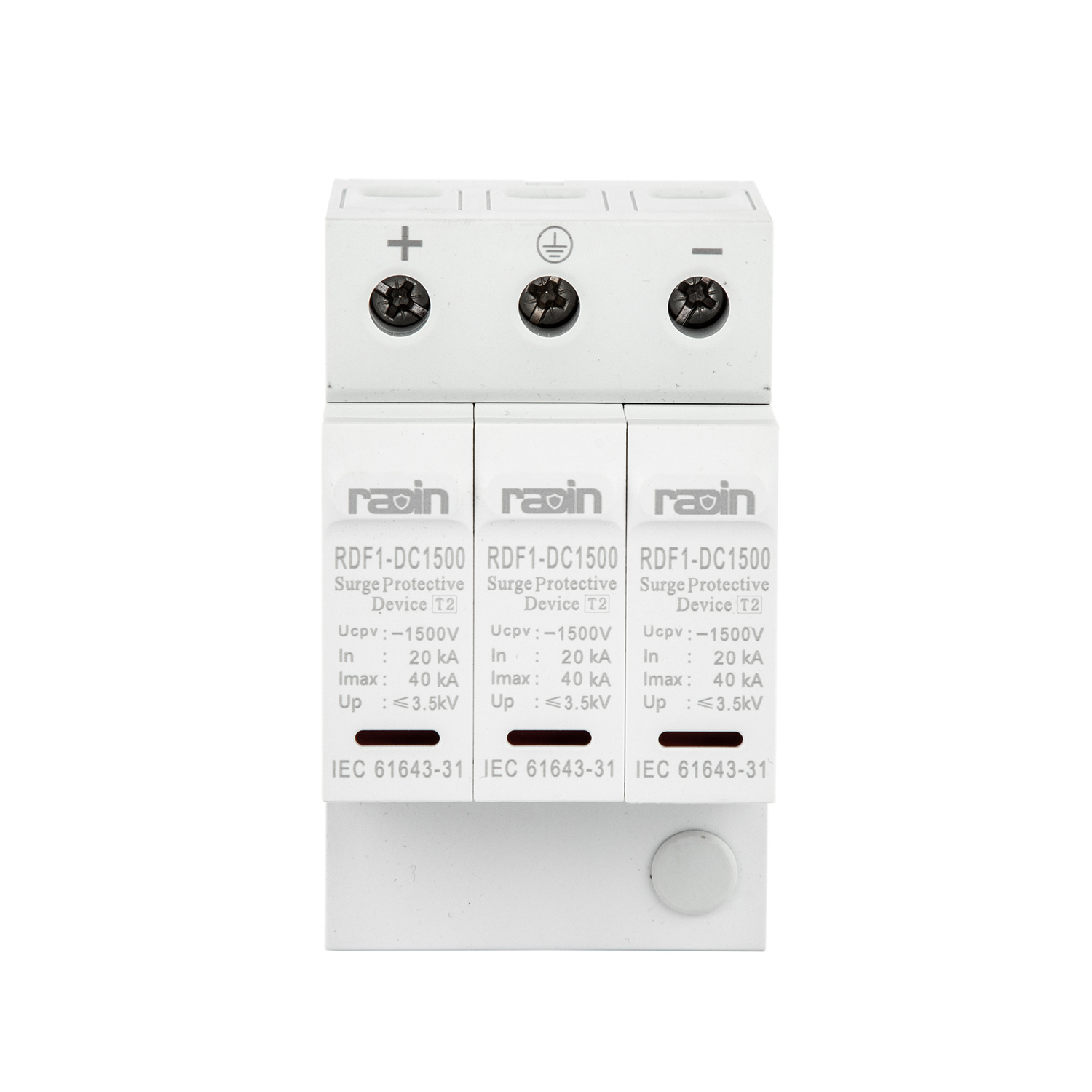

RDF1-DC Photovoltaic DC Surge Protector

RDF1-DC photovoltaic DC surge protection device suitable for solar photovoltaic system with working voltage up to DC1500V.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button


Features

  • Adopt fast heat conduction structure

  • Large creepage distance after tripping (>20mm)

  • Sensitive tripping and less risk of fire

  • Visible window for the SPD status

  • Optional dry contact for remote signalling.

  • 35mm Din Rail installation comply with general installation requirements.

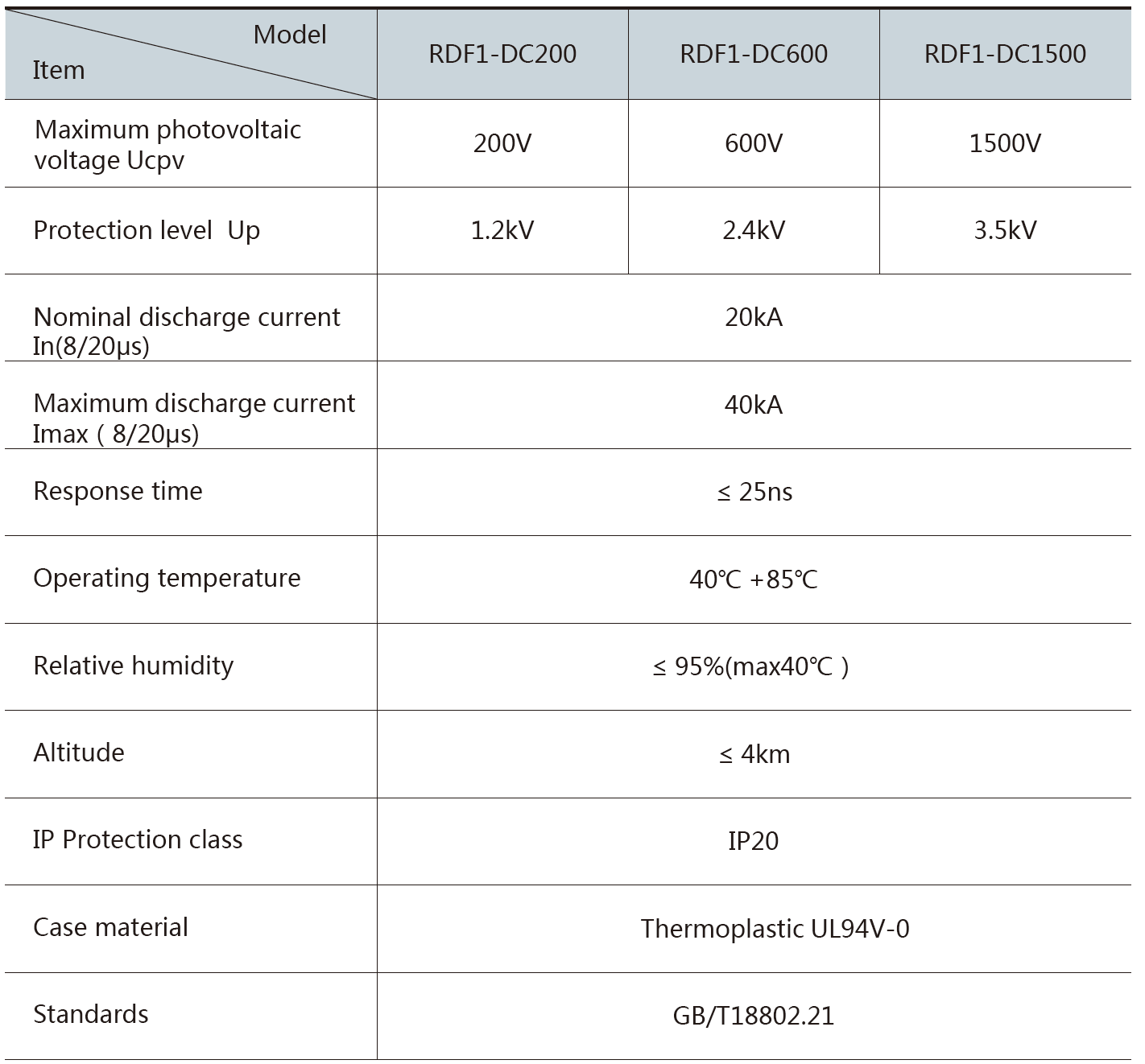

Technical Data

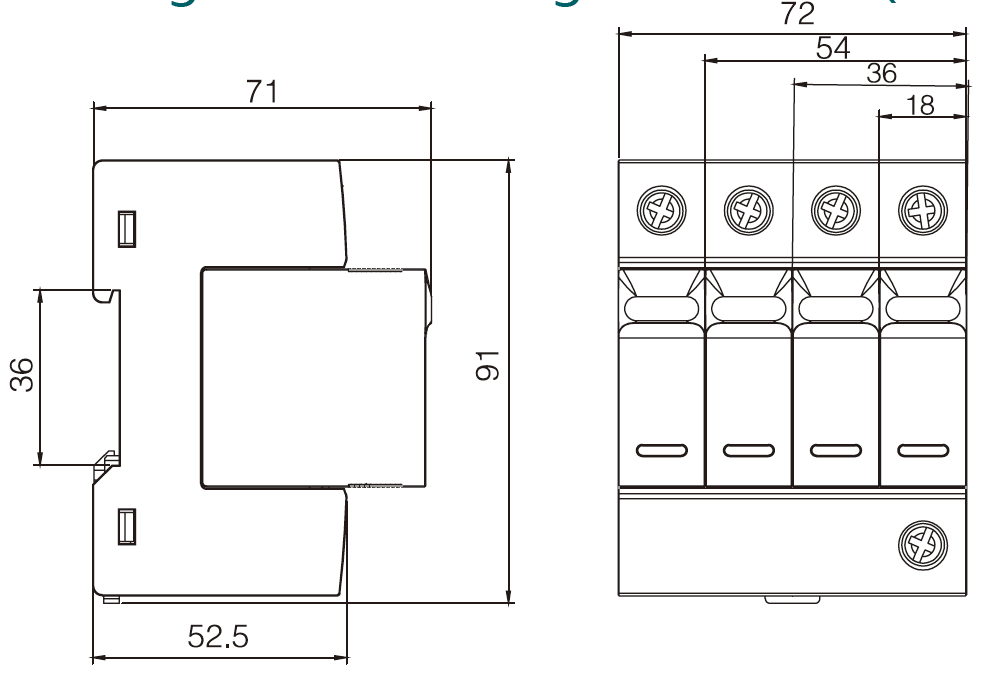

Dimensions (mm)
