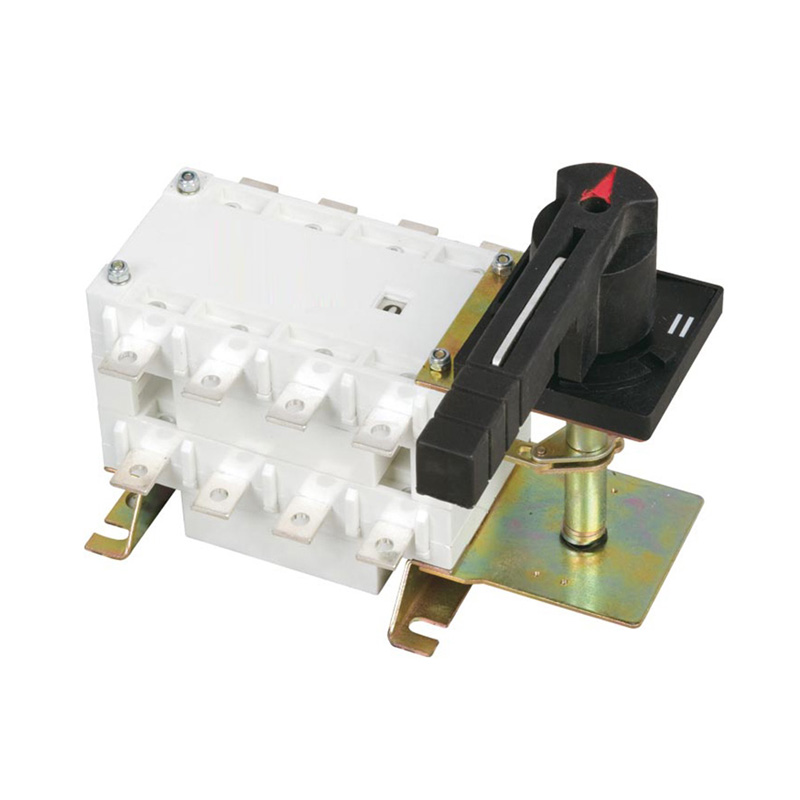

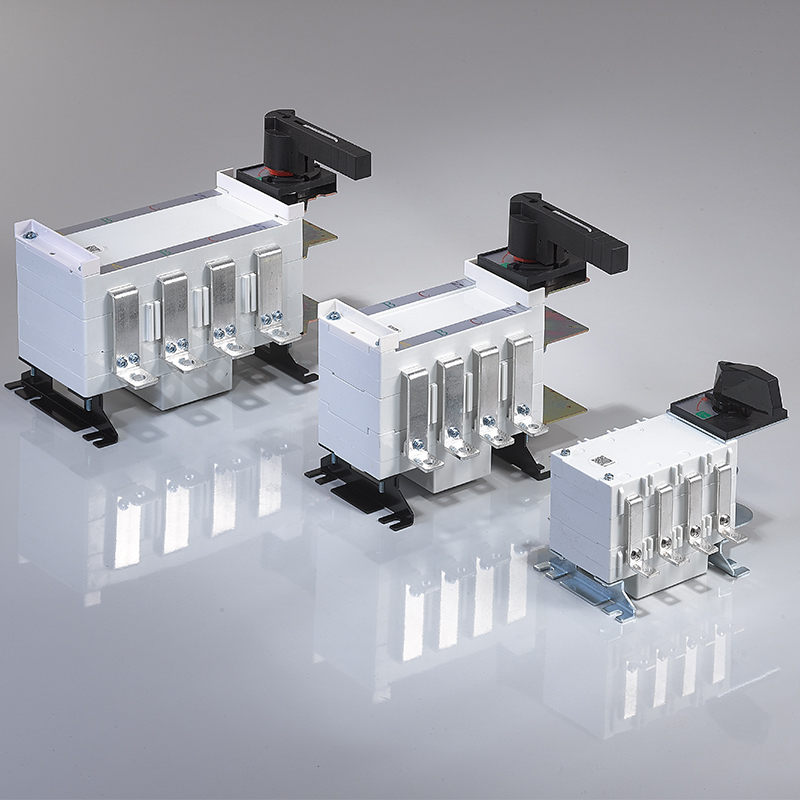

RDGLZ series manual changeover switch is applicable for AC 50Hz, rated voltage AC 660V and below, rated current up to 3150A. Used for manually infrequent making and breaking electric circuit.
Composed of two isolation switch, adopts modular design structure and fiber glass reinforced casing, with high dielectric property, and safe operation, the operation mechanism is a spring-accumulating and accelerating instant-release device which makes instant making and breaking of the double gap contact.

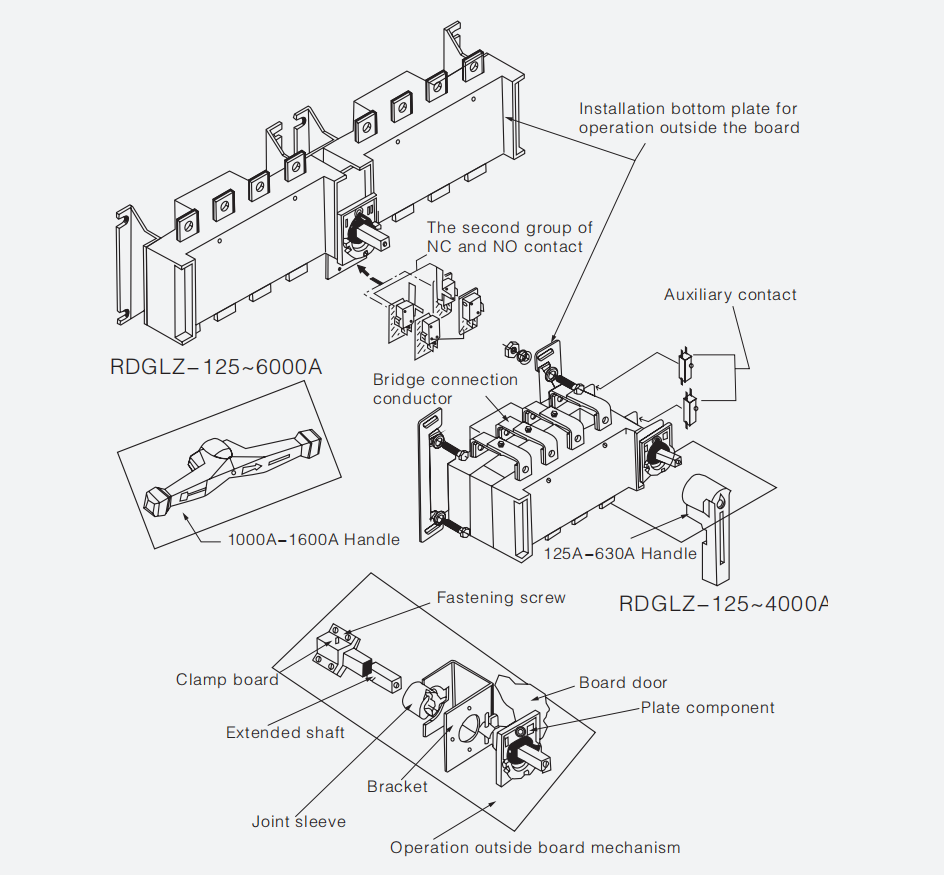

Product Structures

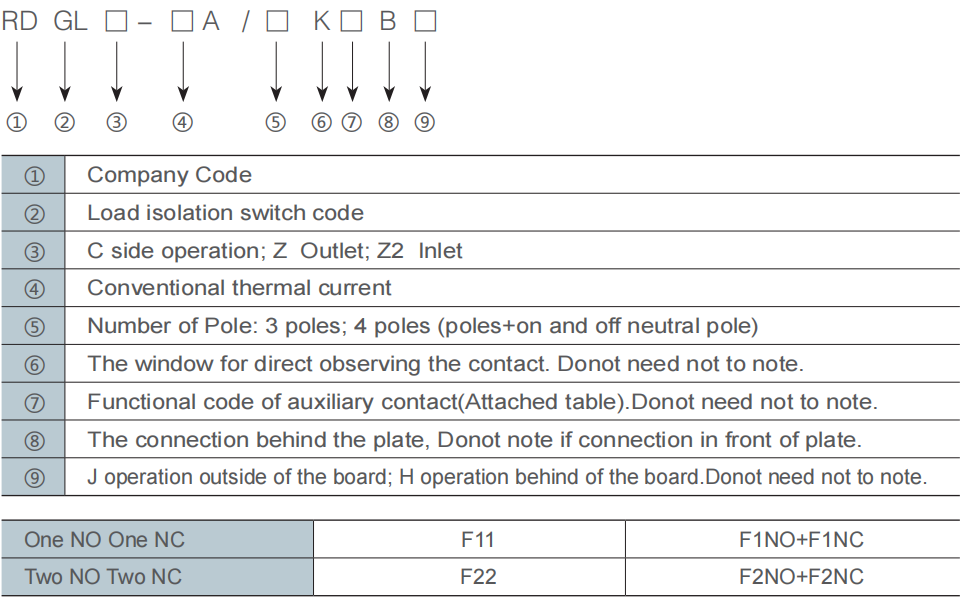

Model Definition

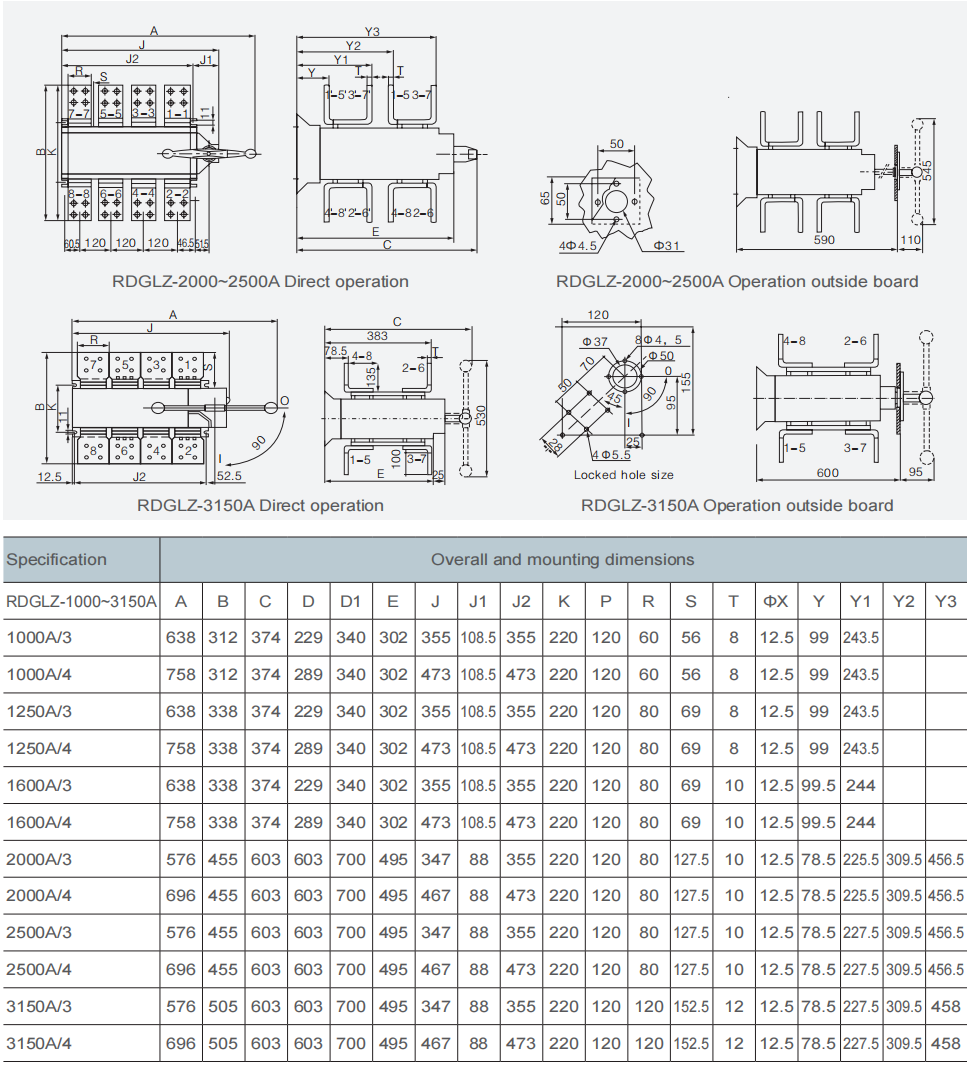

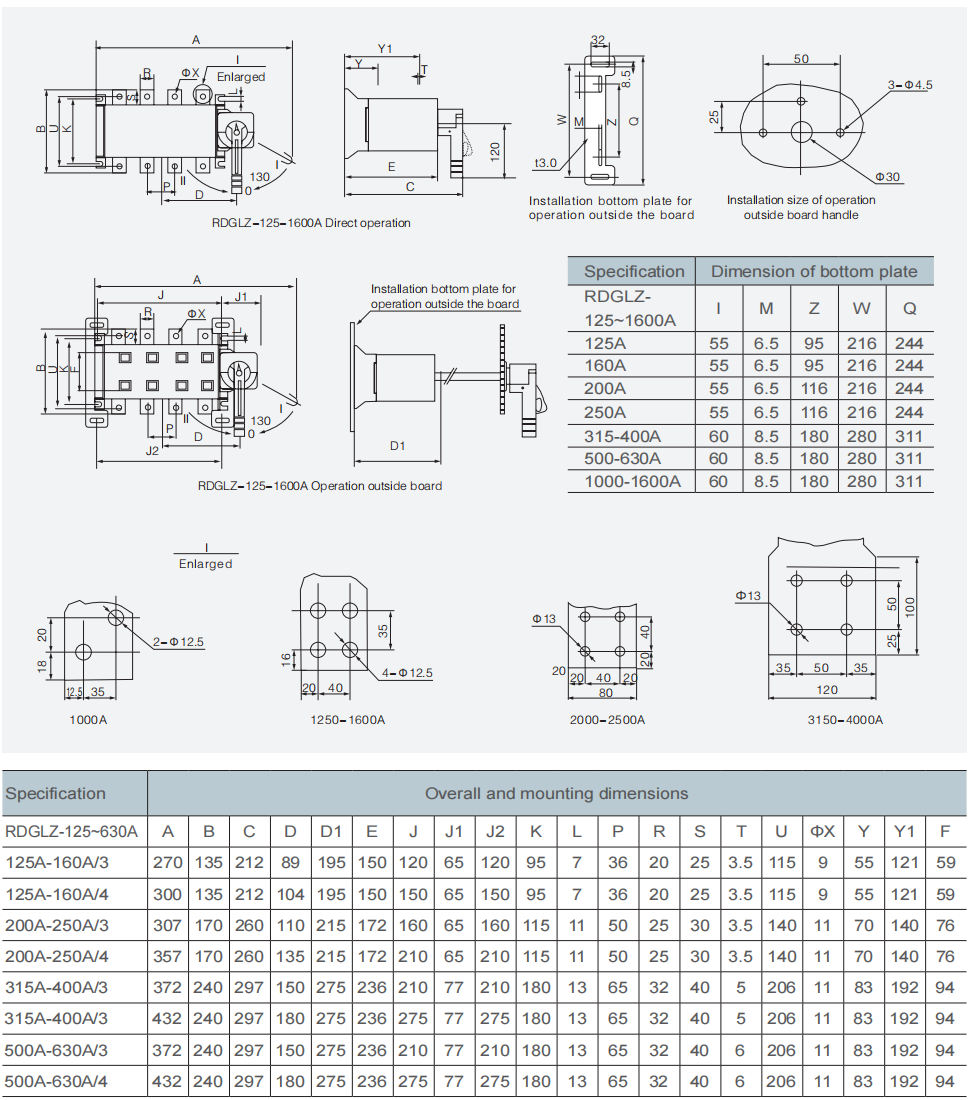

Dimensions
RDGLZ series manual changeover switch is applicable for AC 50Hz, rated voltage AC 660V and below, rated current up to 3150A. Used for manually infrequent making and breaking electric circuit.
Composed of two isolation switch, adopts modular design structure and fiber glass reinforced casing, with high dielectric property, and safe operation, the operation mechanism is a spring-accumulating and accelerating instant-release device which makes instant making and breaking of the double gap contact.
Product Structures
Model Definition
Dimensions
