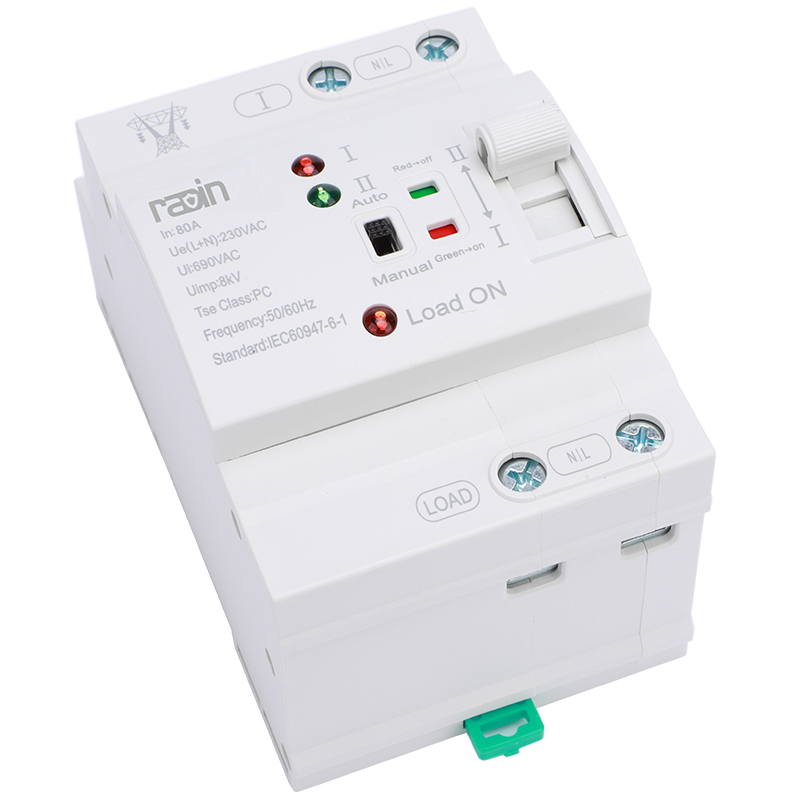

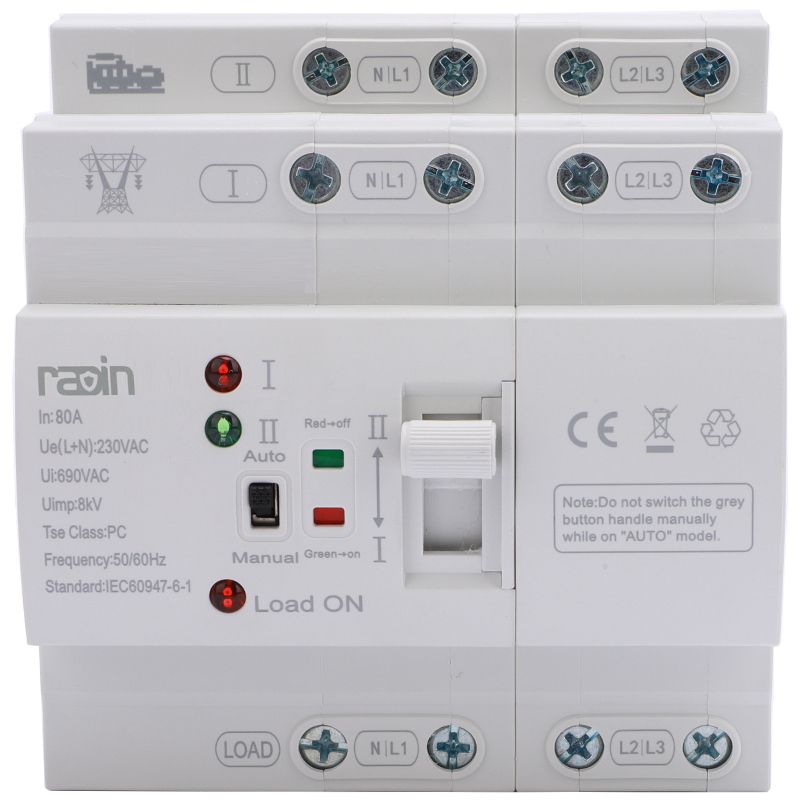

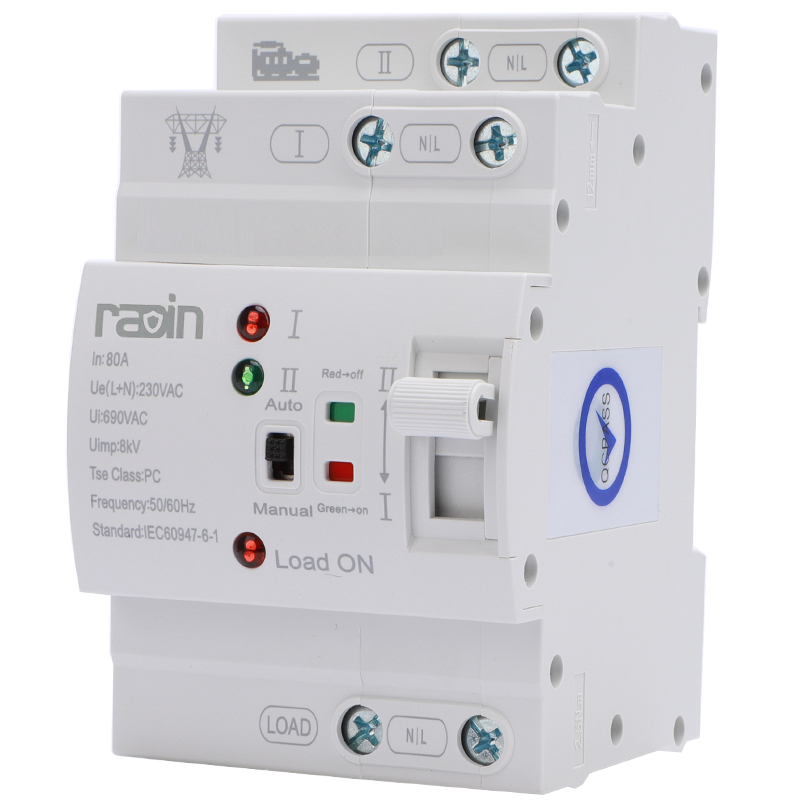

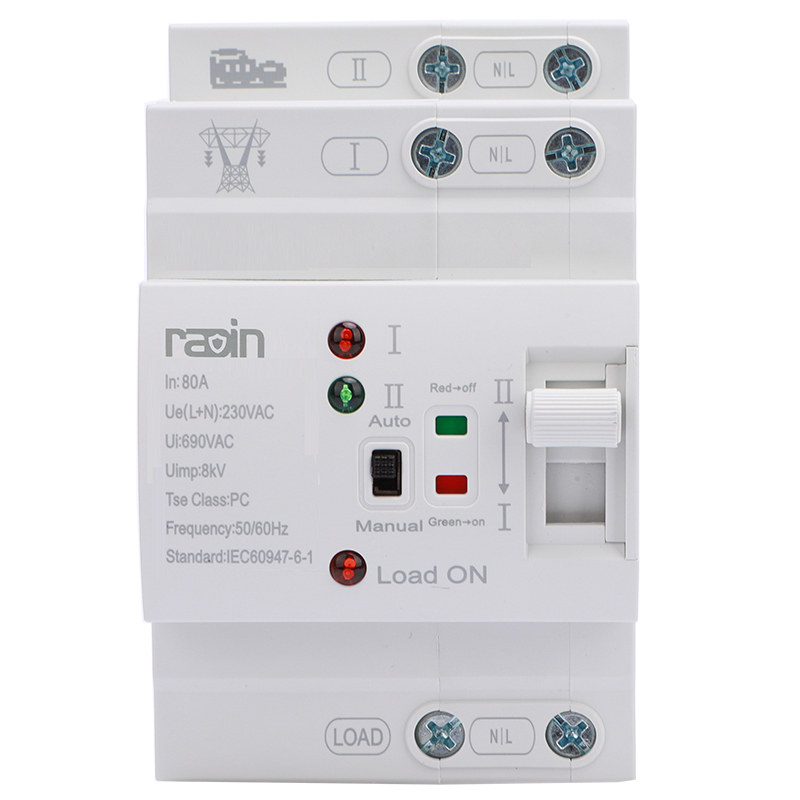

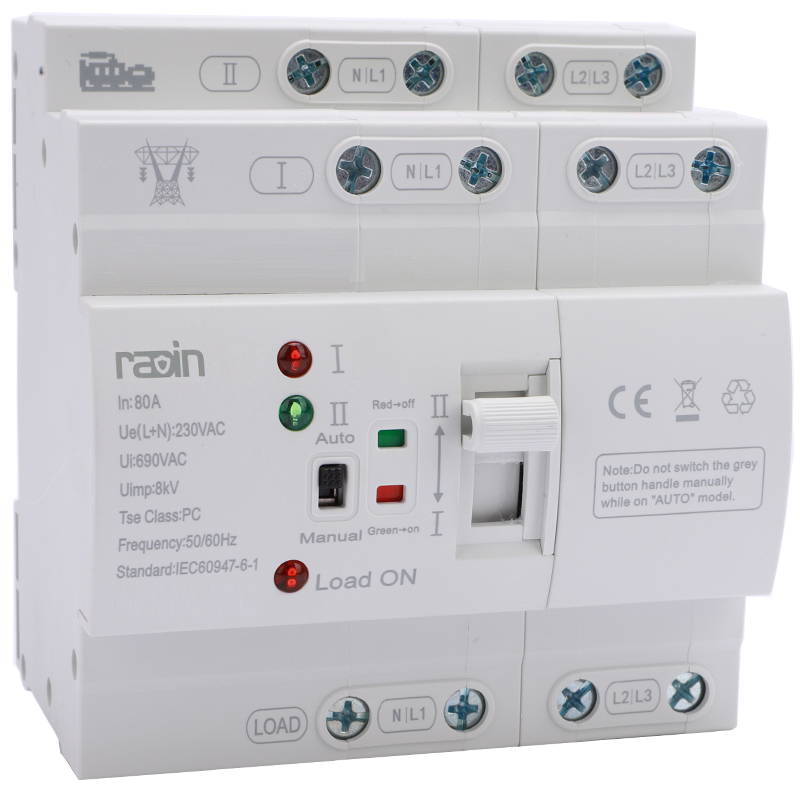

RDQ1-80AE Miniature Auto Transfer Switch

RDQ1-80AE series automatic transfer switch is a PC class household application changeover switch, with two position design (source I and source II), suitable for AC230V single phase or AC400V three phase system with frequency 50/60Hz, rated current from 10A to 80A. The main function of automatic transfer switch is when the main power source I fails, the ATS will automatically switch to source II power supply to ensure the continue working of load equipment, the switching speed <50ms which effectively solve the problem caused by power outages.
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button


Product Features

• With solenoid driving, fast switching time, the default control voltage is AC220V ( other voltage can be customized)

• With LED indicator on the switch body for clear indication of switch status

• With auto transfer auto recovery function, when both power available, source I is the priority power

• Modular structure design, source I and source II power input at same side, easy for wiring connection, compact sizes easy for installation and maintenance

• Build in arc extinguish chamber

• Pre-wired power sensing cable inside, no need extra control wiring job.

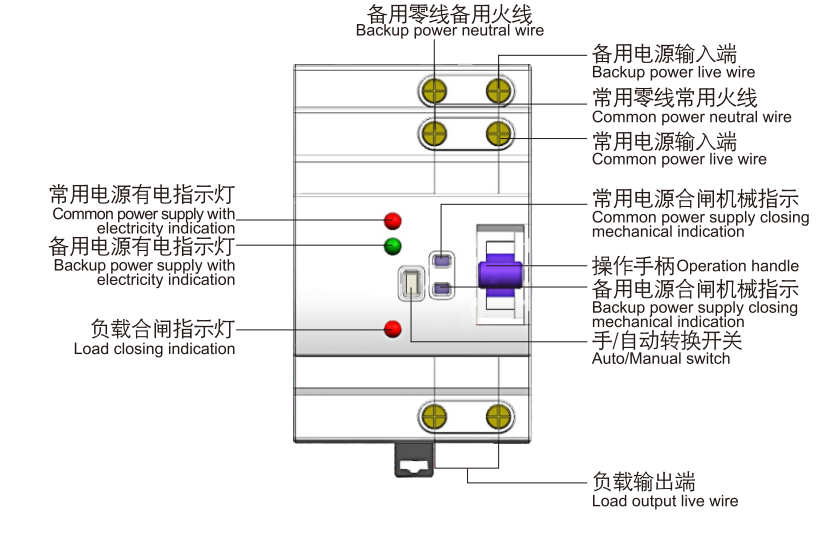

Wiring Instructions

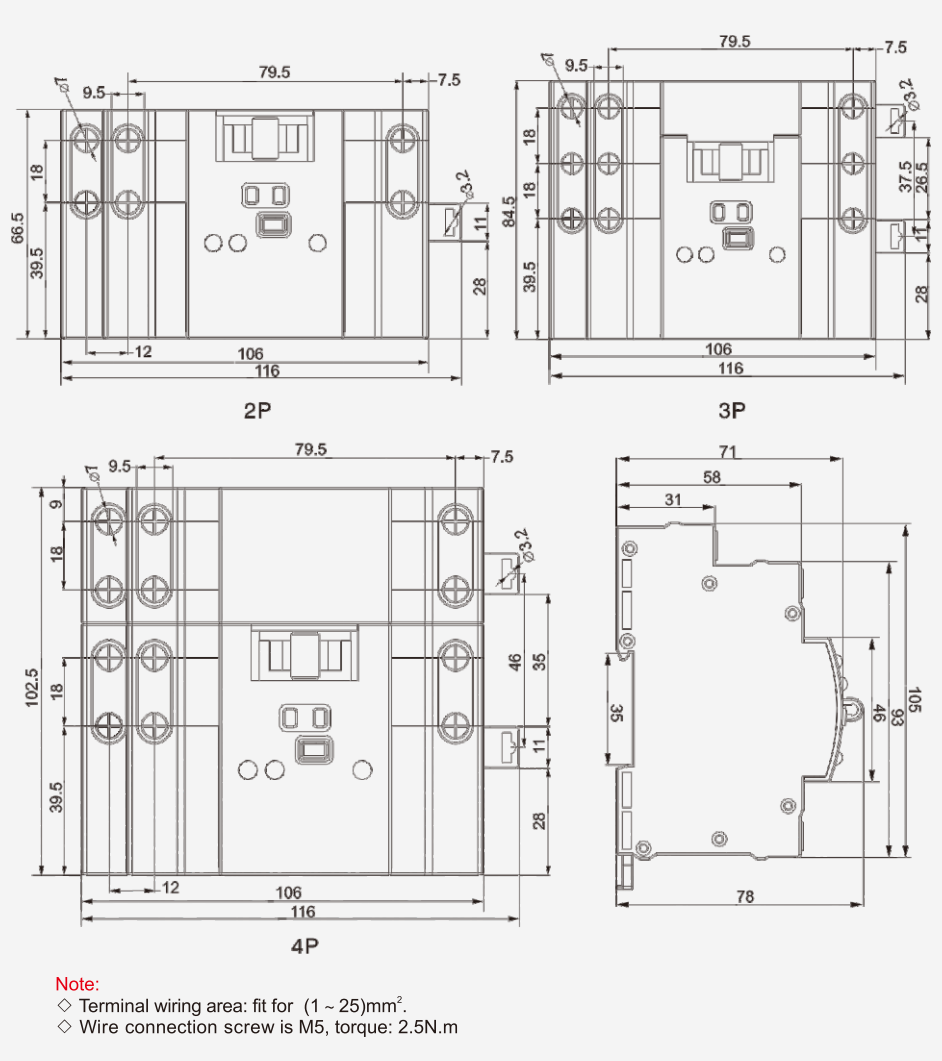

Dimensions
