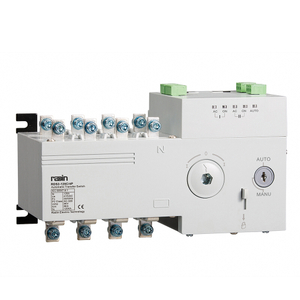

RDS2-G series Remote Transfer Switch is designed to transfer manually or by external controllers, to transfer between two power sources systems with rated at 415V and below, 50/60Hz, and with a rated current of 63A to 3200A, to ensure safe and reliable power supply to loads.
RDS2-G remote transfer switch, with external control command signal input, to control the RTS switching to Position I, position 0 and position II. With various optional control signal such as passive signal, DC12V & DC24V signal, AC220V signal etc. to meet different control system demand.
It is widely used for Generator industrial, ATS controller field, motorized manual transfer switch application etc., which require Remote transfer switch to be controlled by generator controller with AMF function, or to be controlled by external ATS controller, it also can be work as motorized manual changeover switch.
They are composed of 6 different ratings, ranging from 63A to 3200A, in 3P and 4P versions.

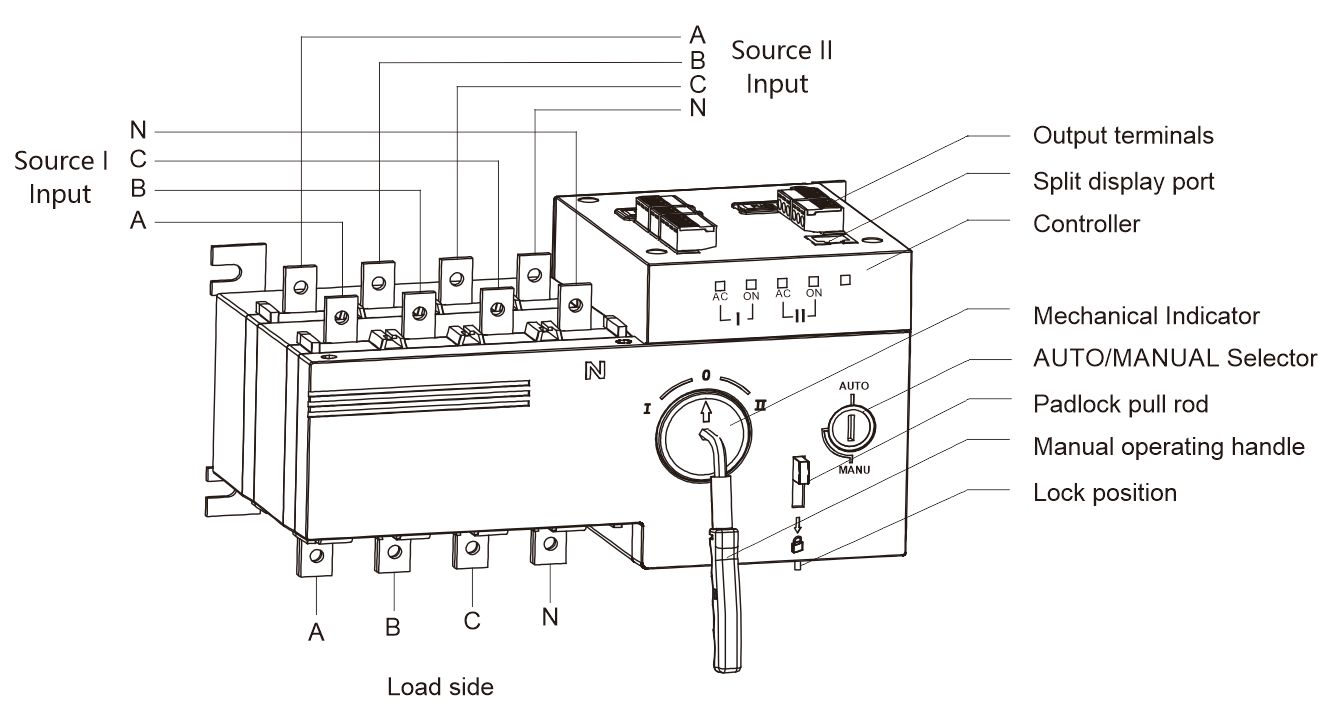

RDS2-G Series Automatic Transfer Switch Instruction

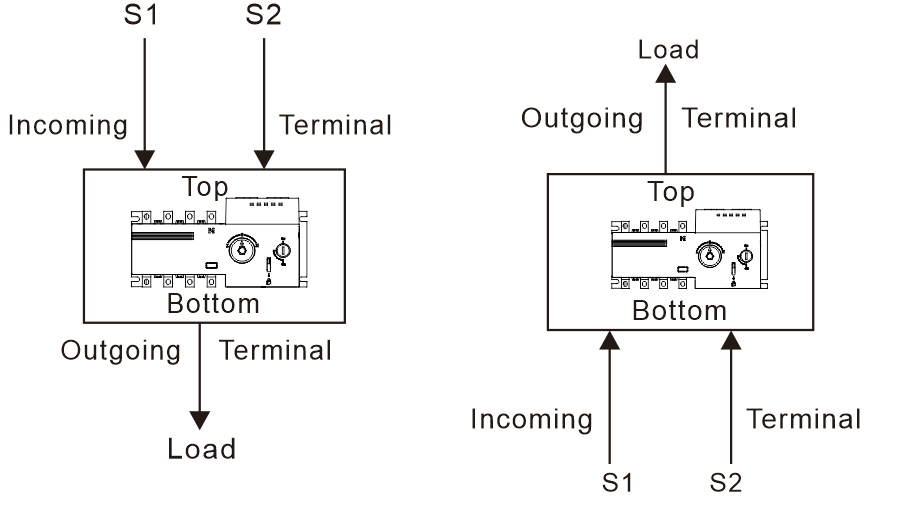

Optional Cable Entry direction
Model Defination
Advantages of remote transfer switch:
l Three working position I-0-II;
l With Remote, Manual operating mode;
l Motorized energy pre-storage operating mechanism to achieve zero arc during open and close;
l Reliable mechanical and electrical interlock;
l The driving motor only working during load changeover, stable working status no need provides working current to save the energy;

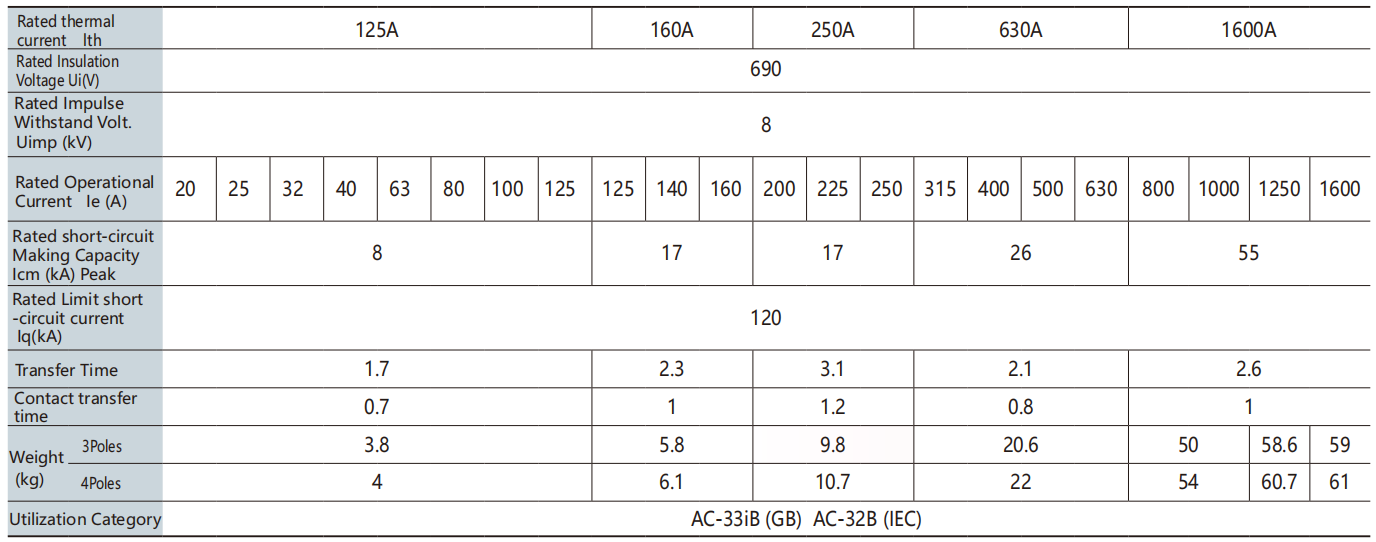

Technical Parameters

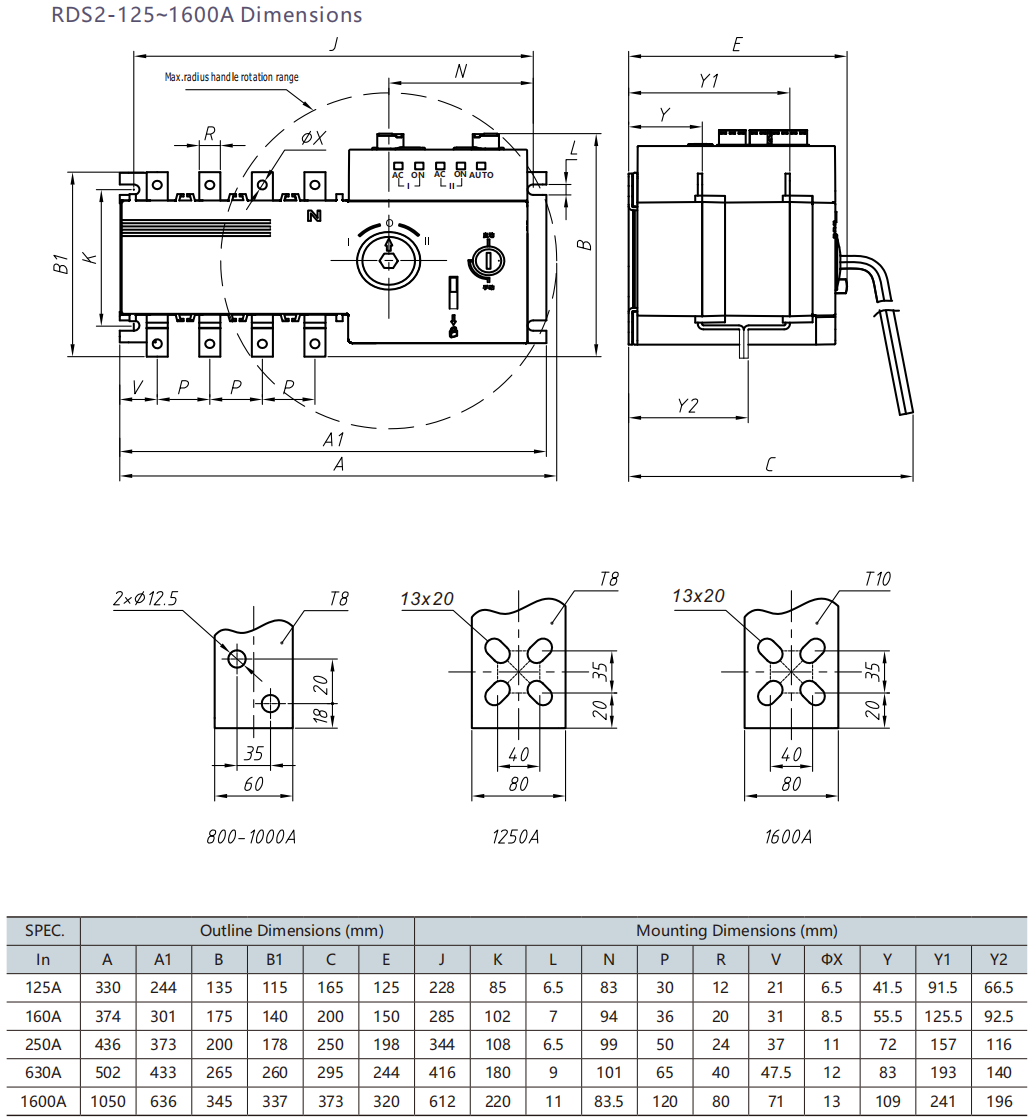

RDS2-G Series Remote Transfer Switch Dimensions

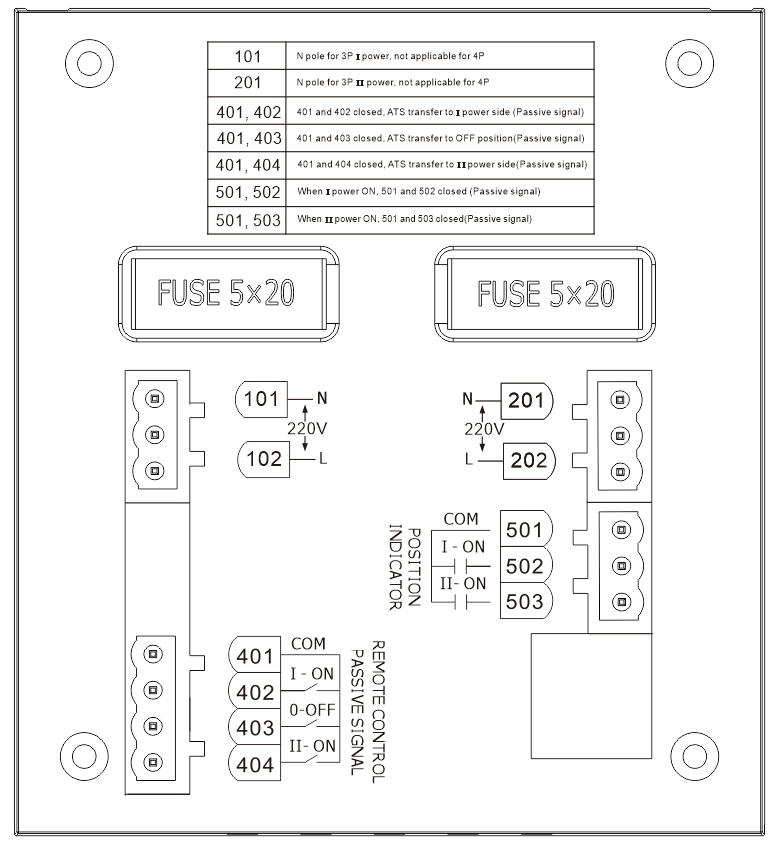

RDS2-G Controller wiring instruction
Different remote control signal input available at request.
Controller terminal instruction:
101-102: Source I control power input AC220V
201-202: Source II control power input AC220V
401-404: Remote control signal input ( passive control signal)
401: Common point
402: when 401 and 402 closed, RTS switch to Source I close position
403: when 401 and 403 closed, RTS switch to 0-OFF position
404: when 401 and 404 closed, RTS switch to Source I close position
501-503: RTS position signal output
501: common point
502: when RTS at source I close position, 501 & 502 closed
503: when RTS at source II close position, 501 & 503 closed
