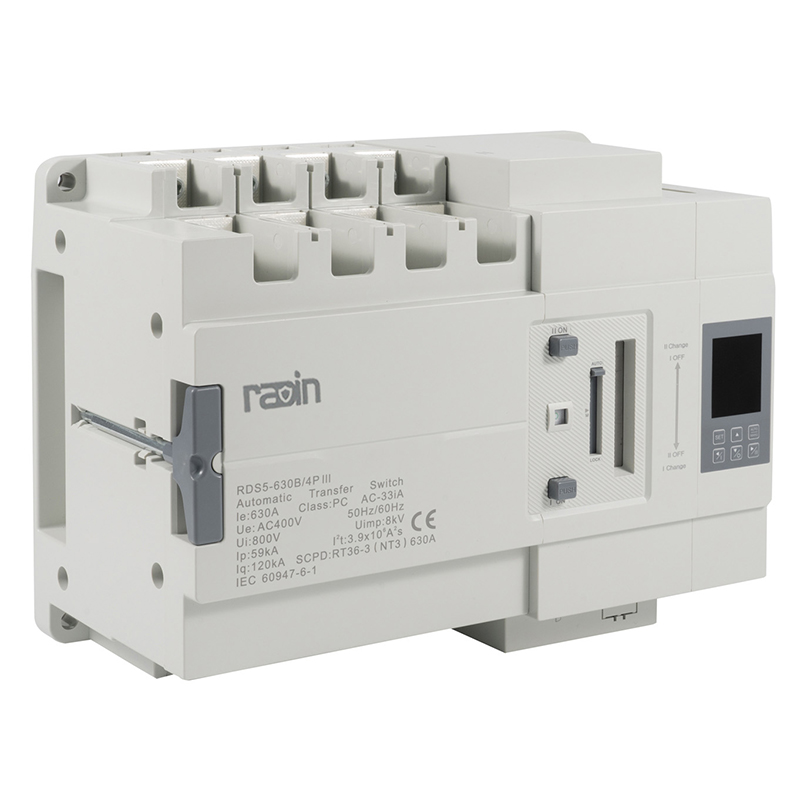

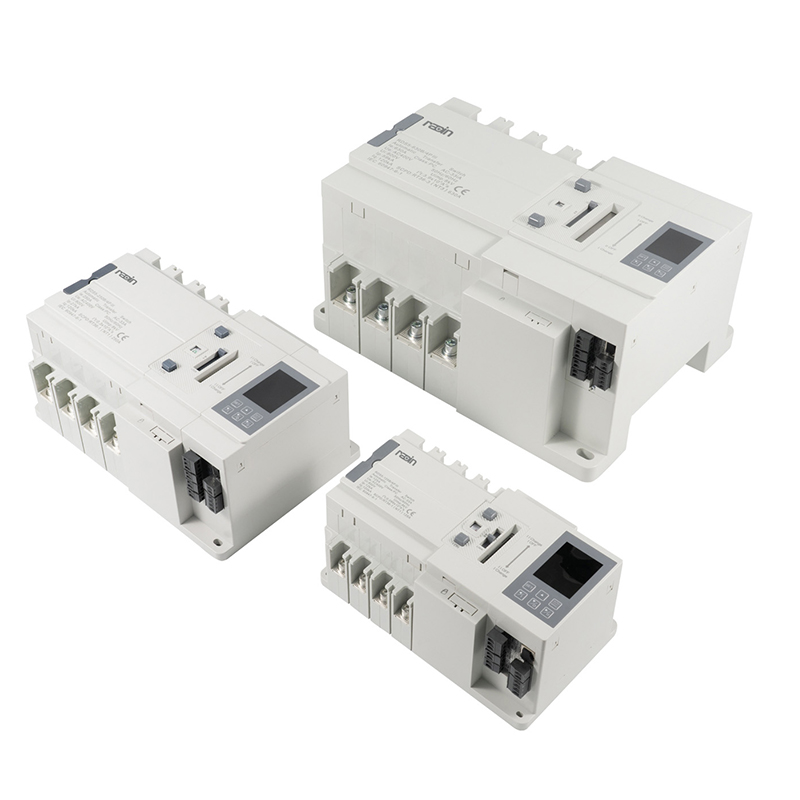

RDS5
Radin

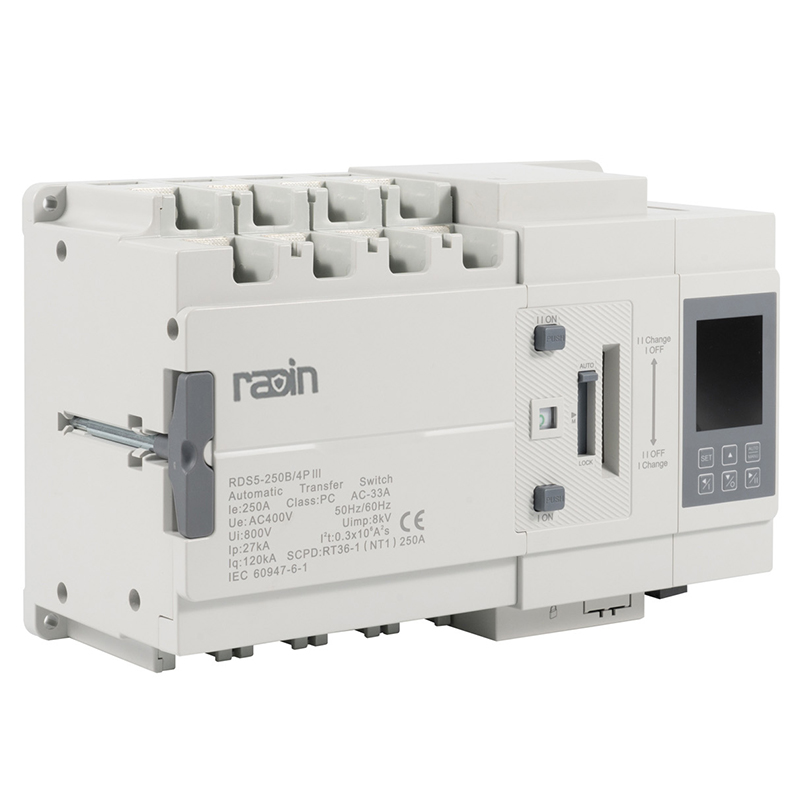

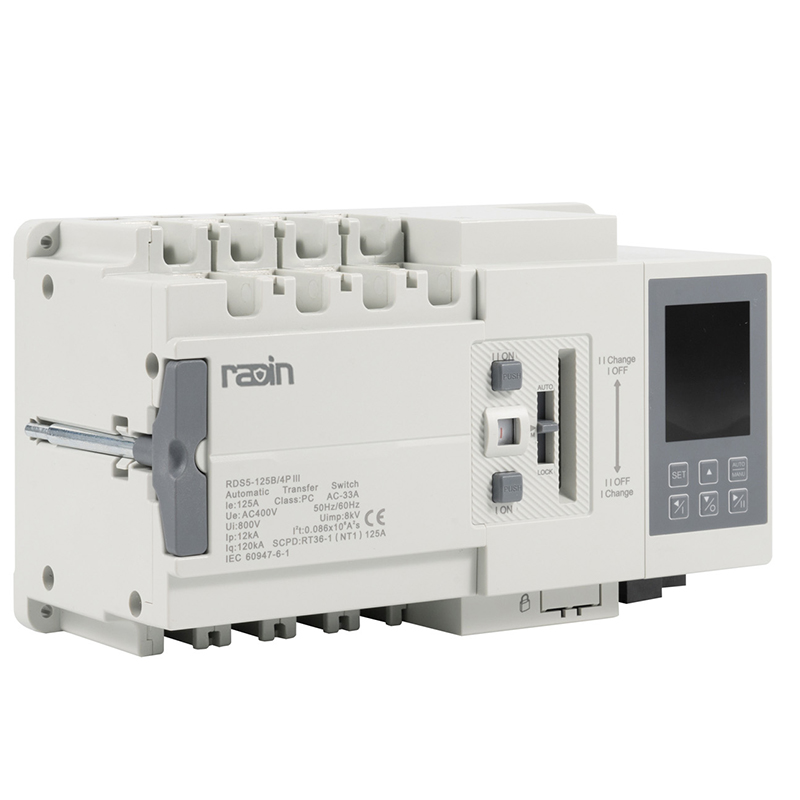

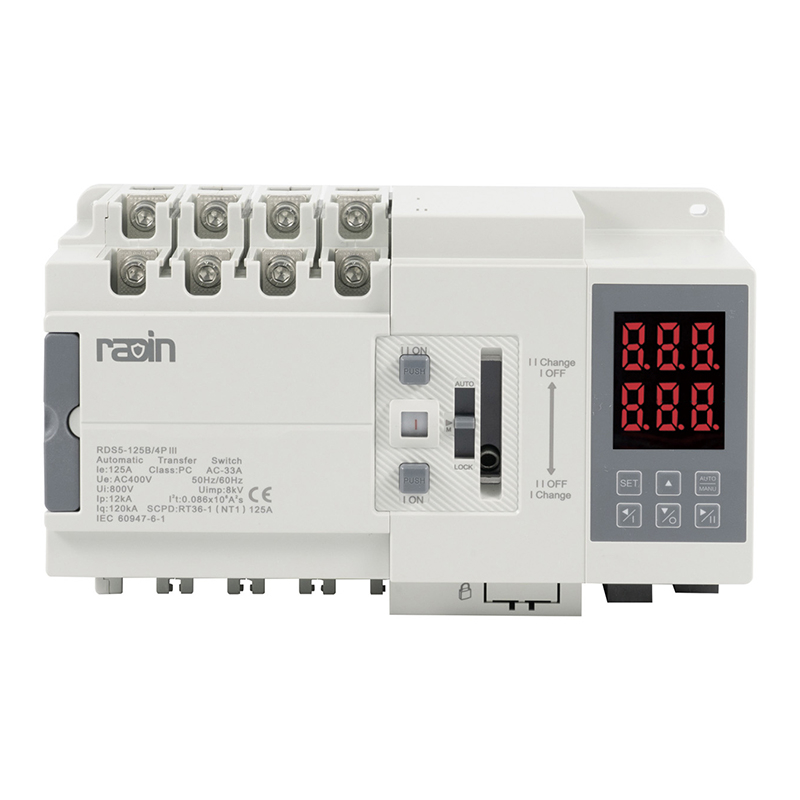

Product Introduction
RDS5 series high-performance is a PC class automatic transfer switch (hereinafter refer as ATS), mainly used for the power supply system of AC 50/60Hz, rated working voltage AC220/230V, AC400/415V and rated working current from 16A to 630A, to make changeover between two power supply sources, in case of one power source fault, the ATS will transfer to the second power source to ensure the continuity and reliability in power supply.
RDS5 series automatic transfer switch with fast transfer speed and utilization category up to AC-33A, with circuit breaker and fuse used as SCPD, it can be reach high limited short circuit current withstand capacity. ATS with two or three working position for selection, with build in intelligent controller. Suitable for various importance location such as commercial buildings, finance center, medical center, computer center, airport, railway station etc.
The automatic transfer switch comply with IEC60947-6-1 standard << Low voltage switchgear and control gear-Part 6-1: Multiple function equipment- Transfer switching equipment >>.
Working Conditions
Temperature: -5℃~+40℃ and average temperature within 24 hours not exceed +35℃
Humidity: Relative humidity not more than 50% under max. temperature +40℃
Altitude: the altitude of the installation location shall not exceed 2000m
Pollution level: level 3
Utilization category: AC-33A / AC-33B
Advantages of automatic transfer switch:
Wide application range, product utilization category AC-33A
Flexible controller modular
Pre-energy storage operating system.
Auto mode with solenoid driving, reach fast transfer speed.
With build in multifunction controller, able with connection of external display for flexible installation.

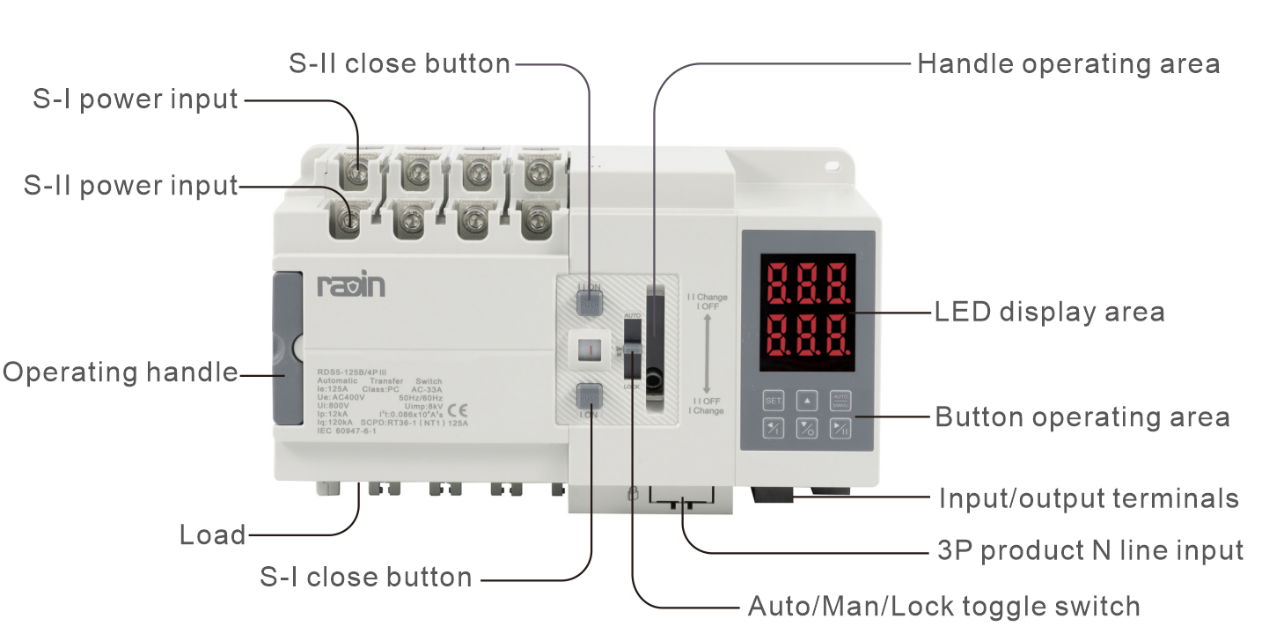

Product Introduction

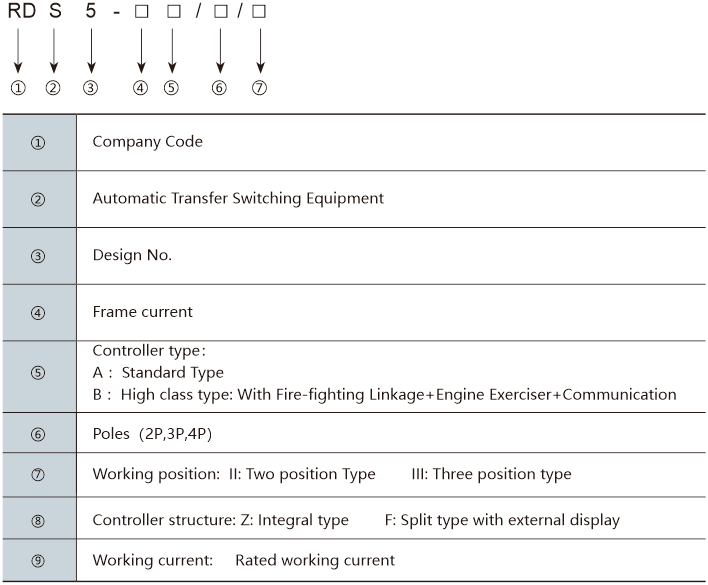

Model Definition

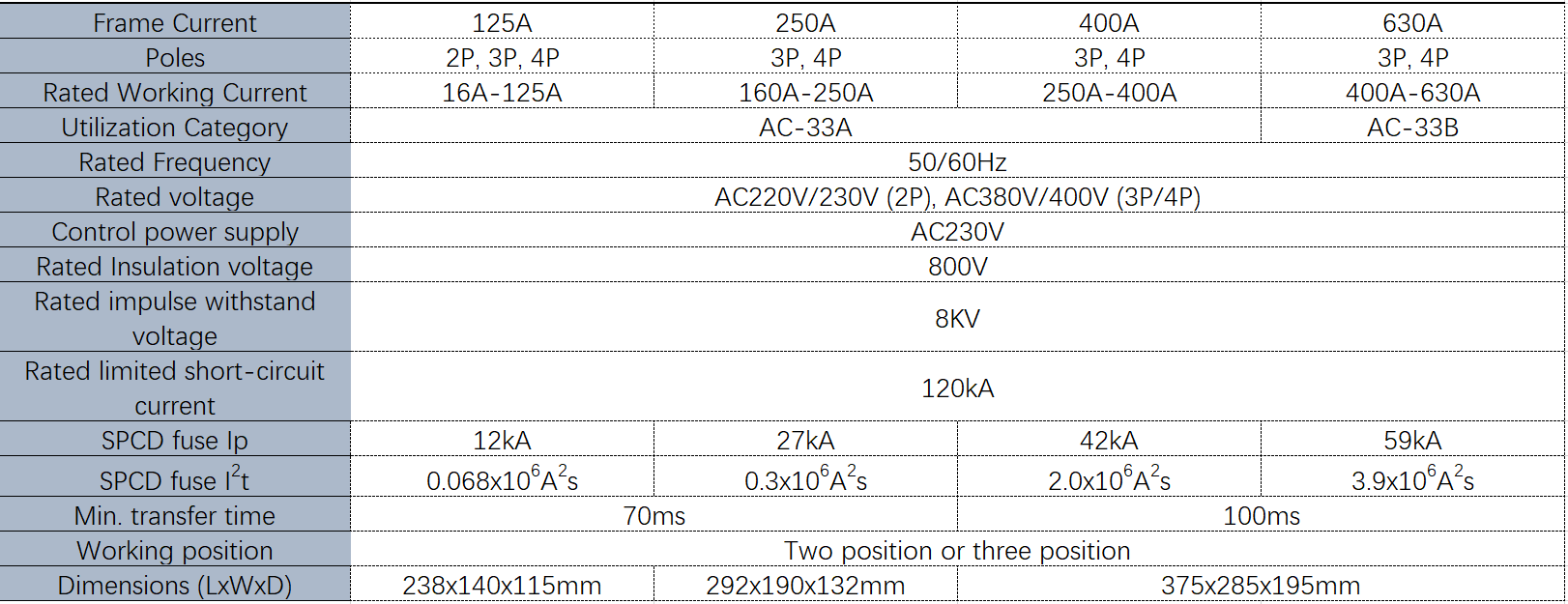

Technical Data

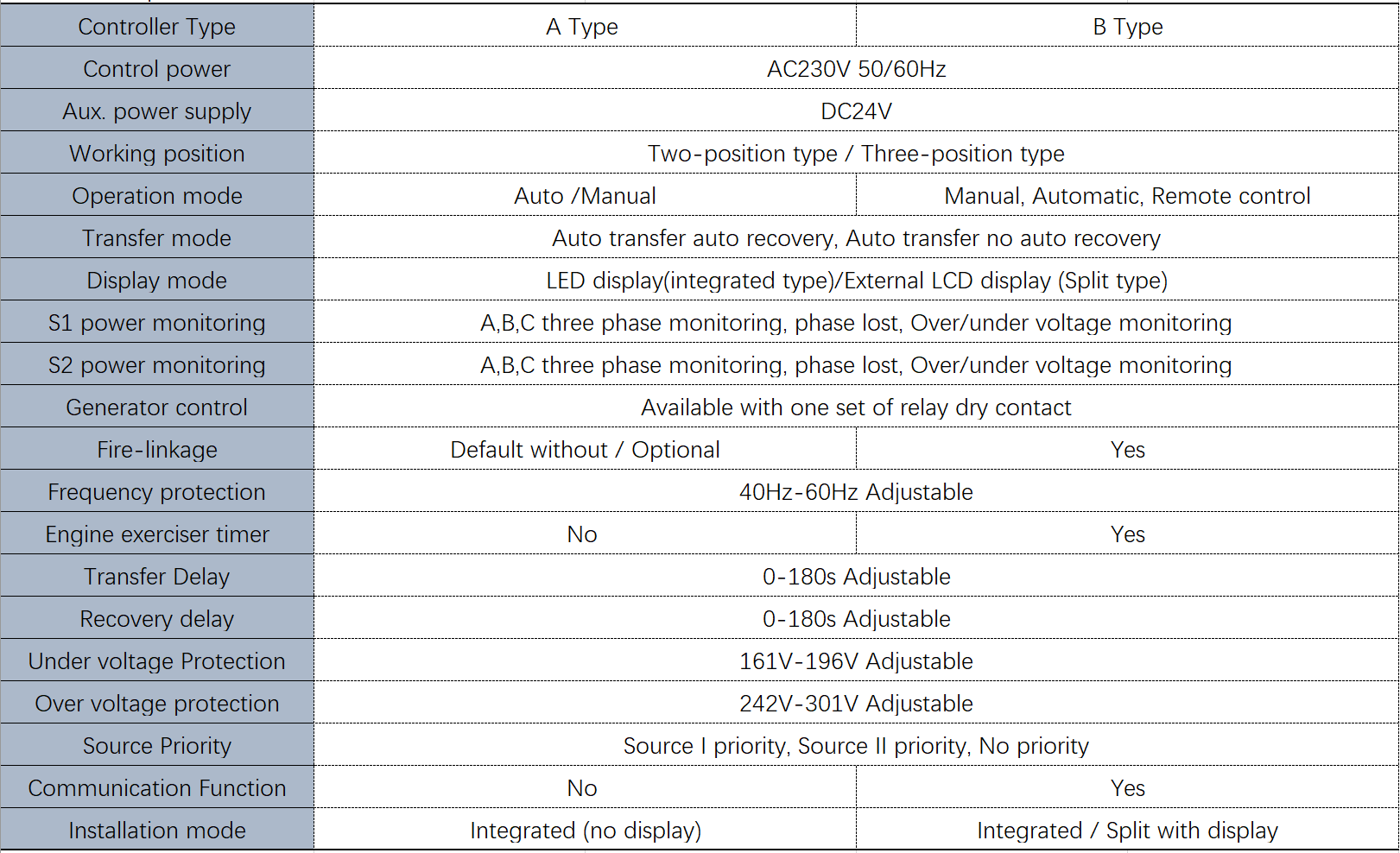

Controller Functions

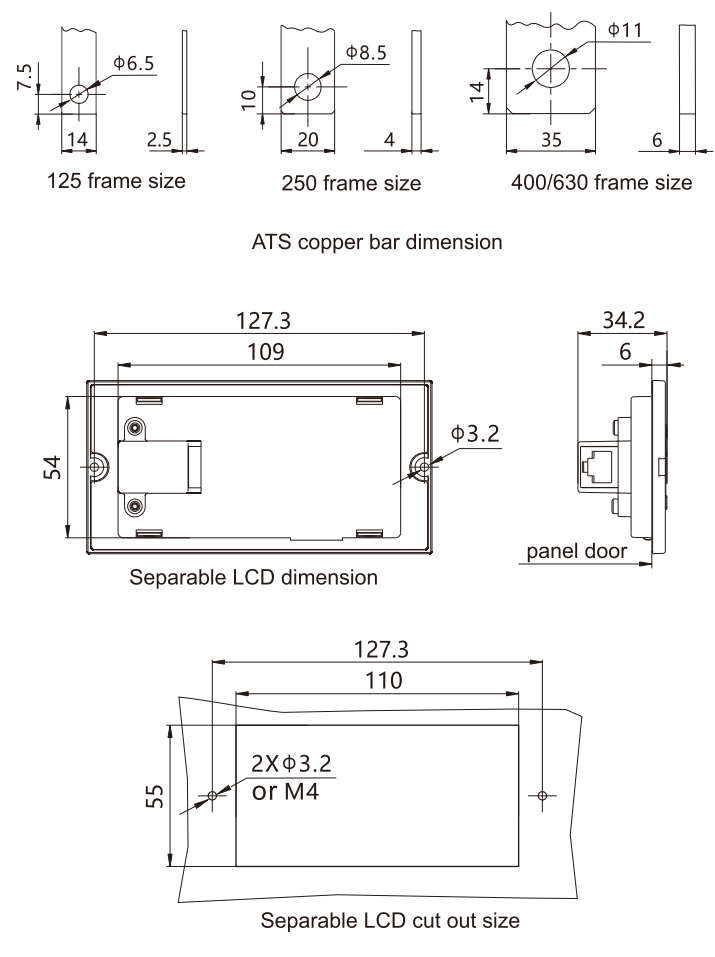

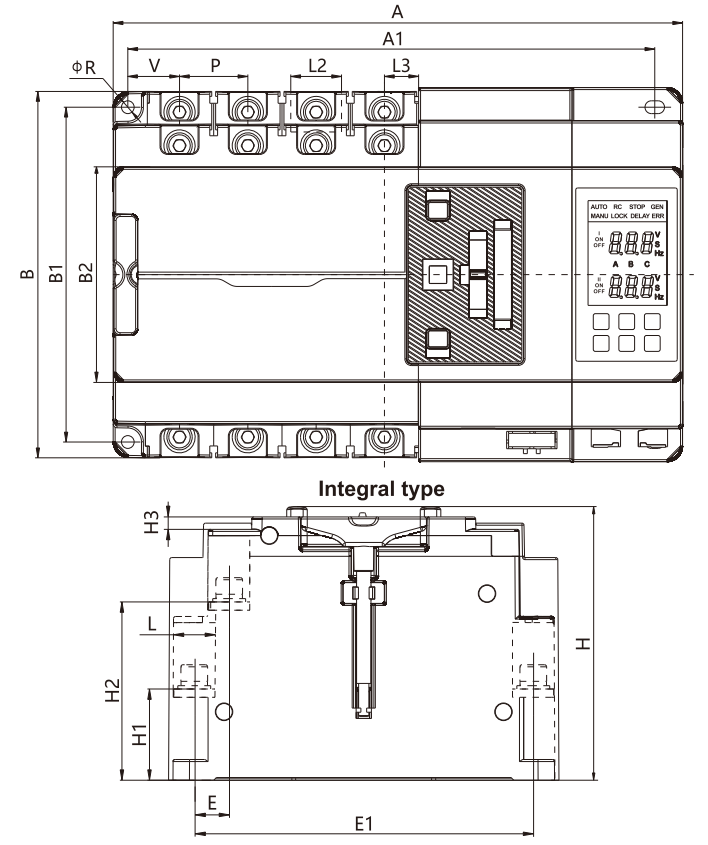

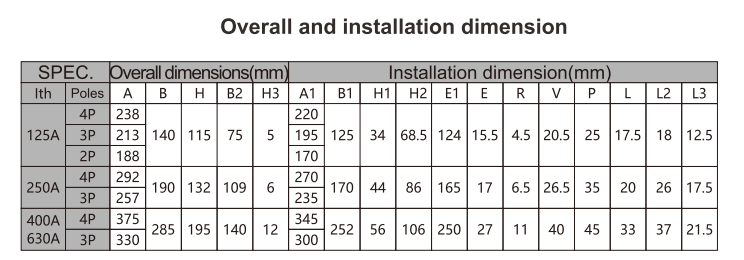

Product Dimensions

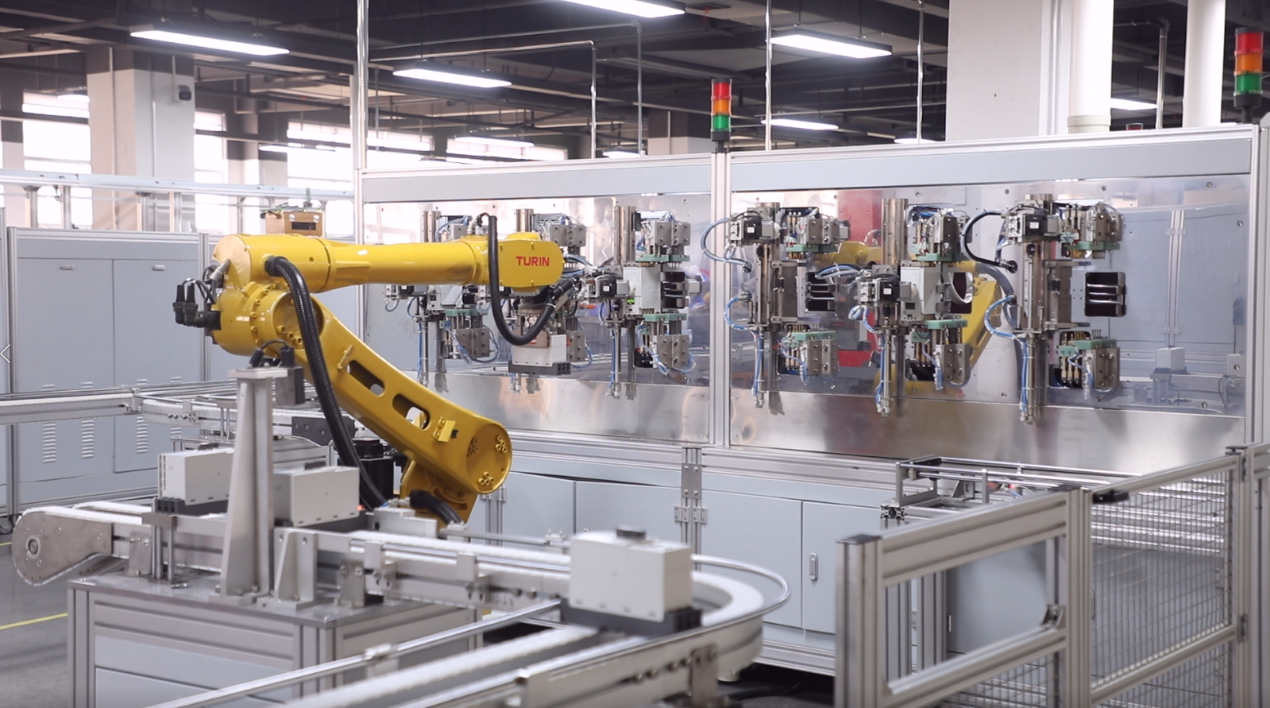

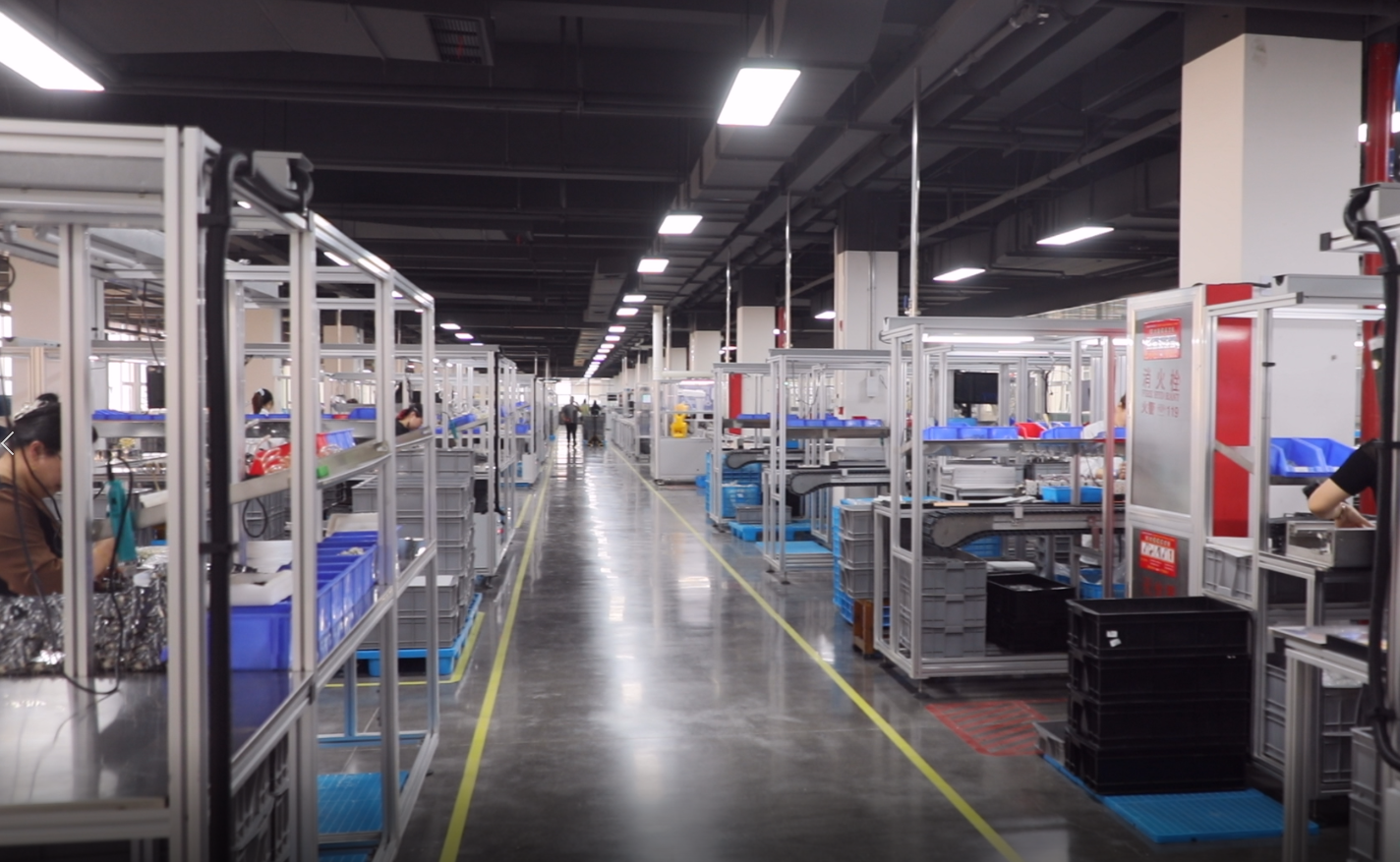

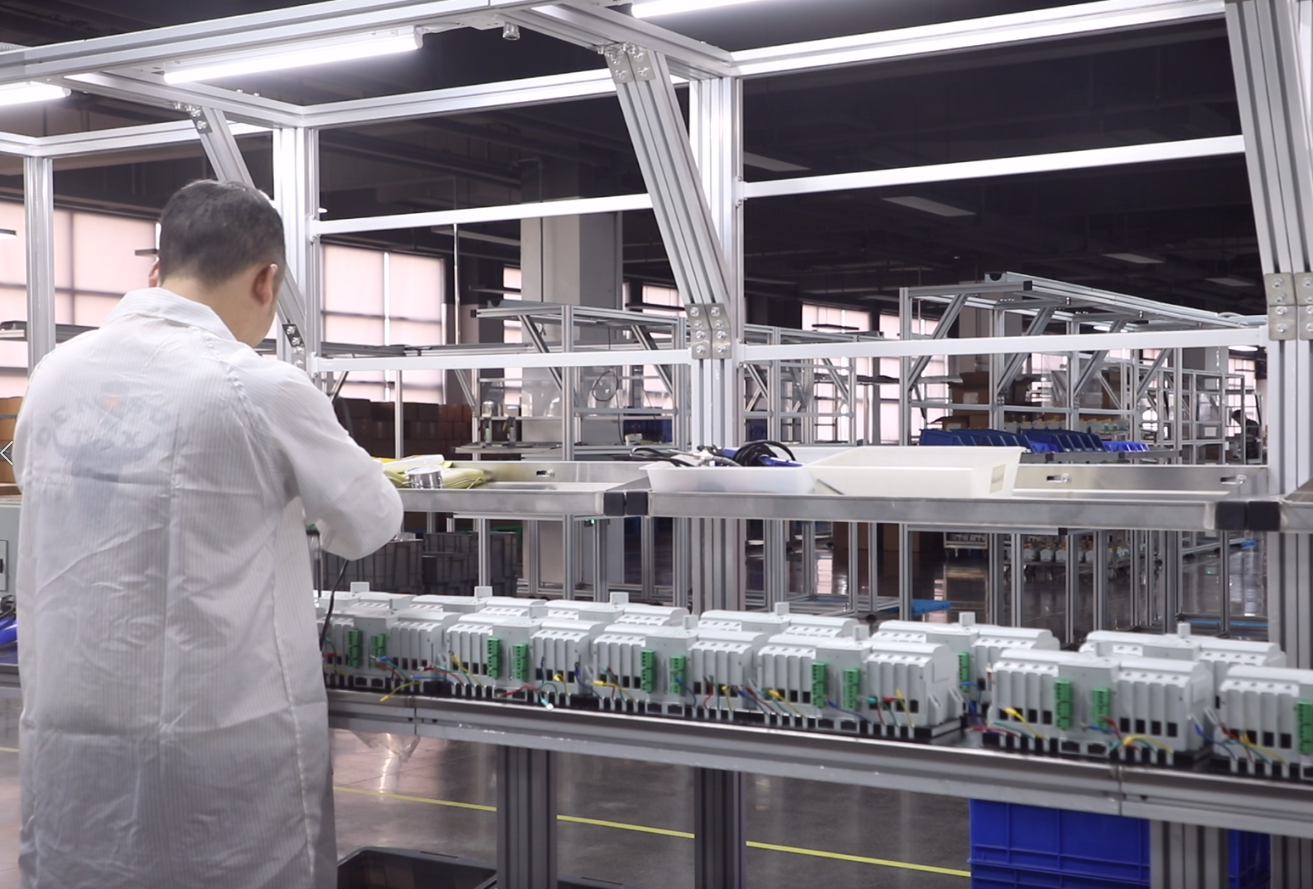

Professional Manufacturing
