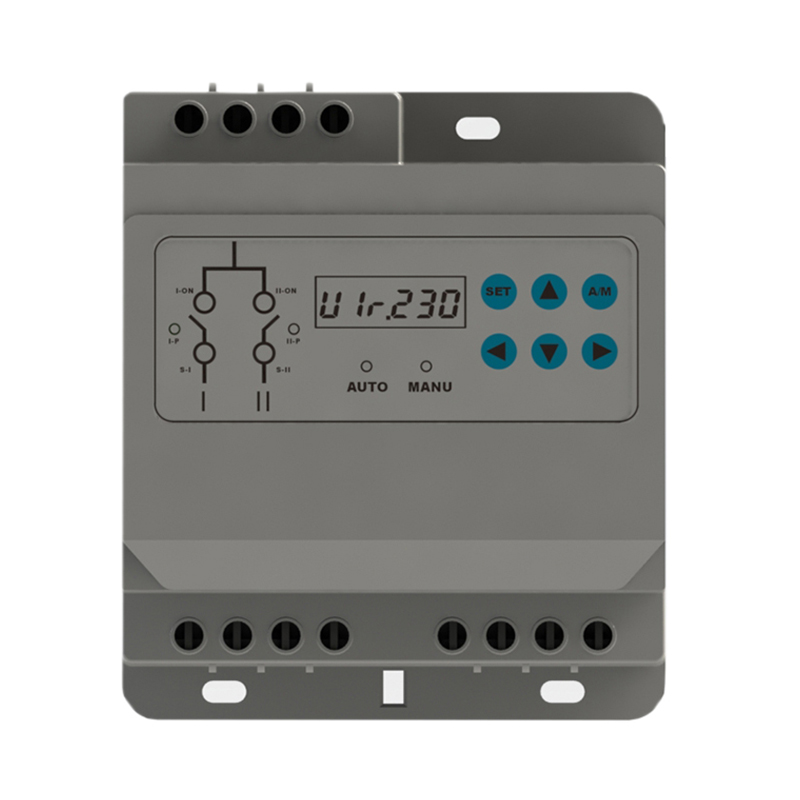

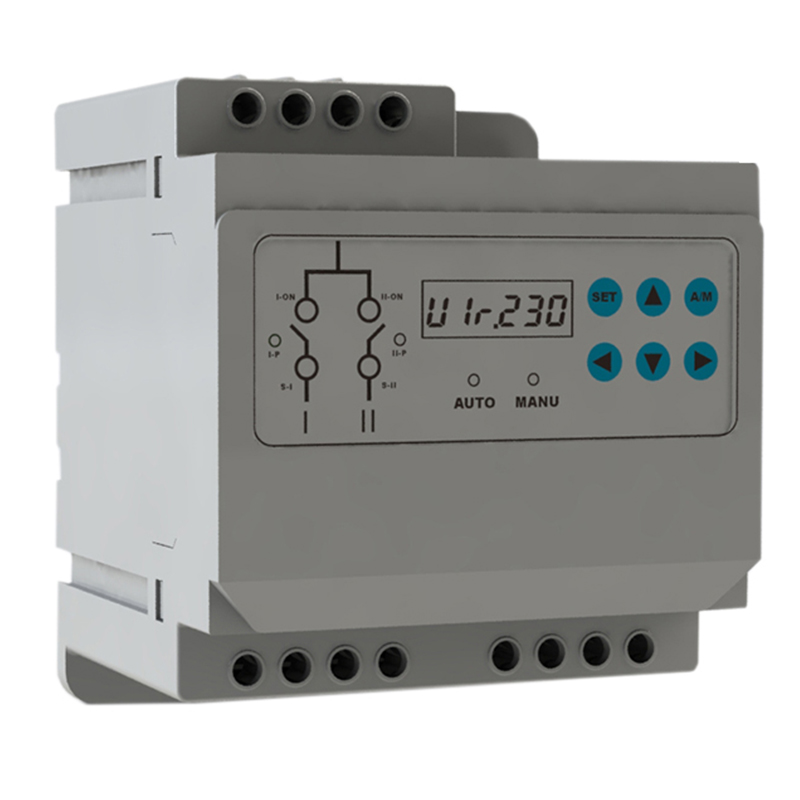

RT300 Series Three Phase Automatic Changeover with Current Limiter ACCL

RT300 Series Three Phase Automatic Changeover with Current Limiter ACCL

Micro-processor based intelligent control

Optional inverse-time overload current and fixed-time over current tripping;

Over/under voltage protection for both EB and DG;

Overload protection for both EB and DG;

Short circuit trip for both EB and DG;

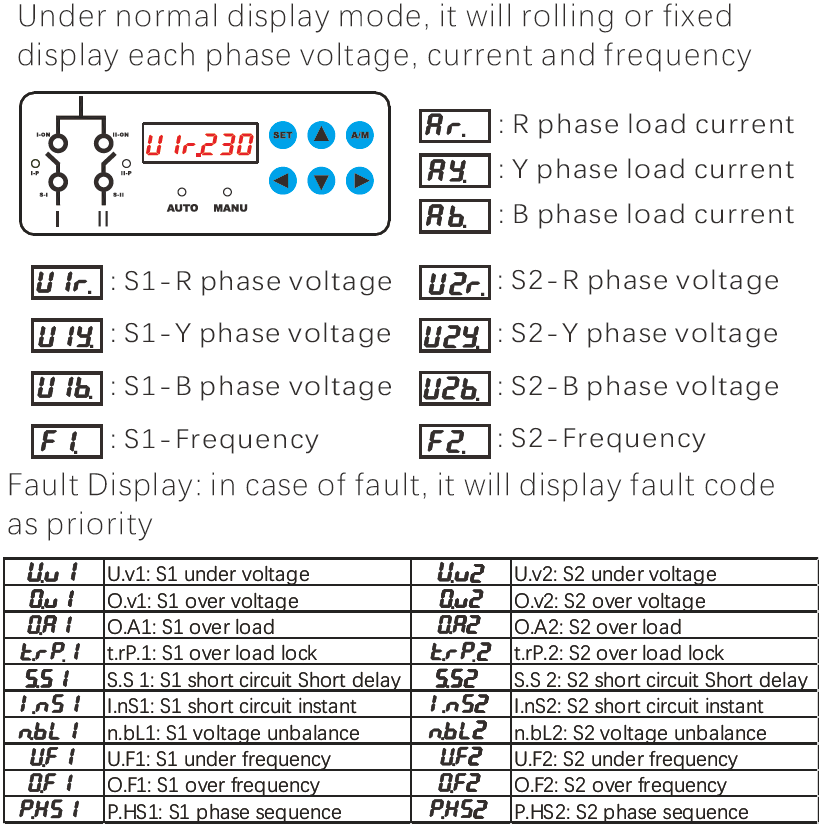

Fault display;

Programmable phase selection 3phase or 1phase for both EB and DG.

Quantity:
Availability:





Inquire Add to Basket

Model:
RT300
Brand:
Radin

Product Description

ACCL-RT300 Series Automatic Changeover Switch with Current Limiter is mainly used for 3phase AC400V power supply system, to switching the load to back-up generator supply when mains supply is disrupted, and return back to Mains supply when mains resumes, to ensure continuous power supply to load.

And protect the both Mains & Genset from overload conditions and OVER/UNDER voltage conditions.

Product Introduction

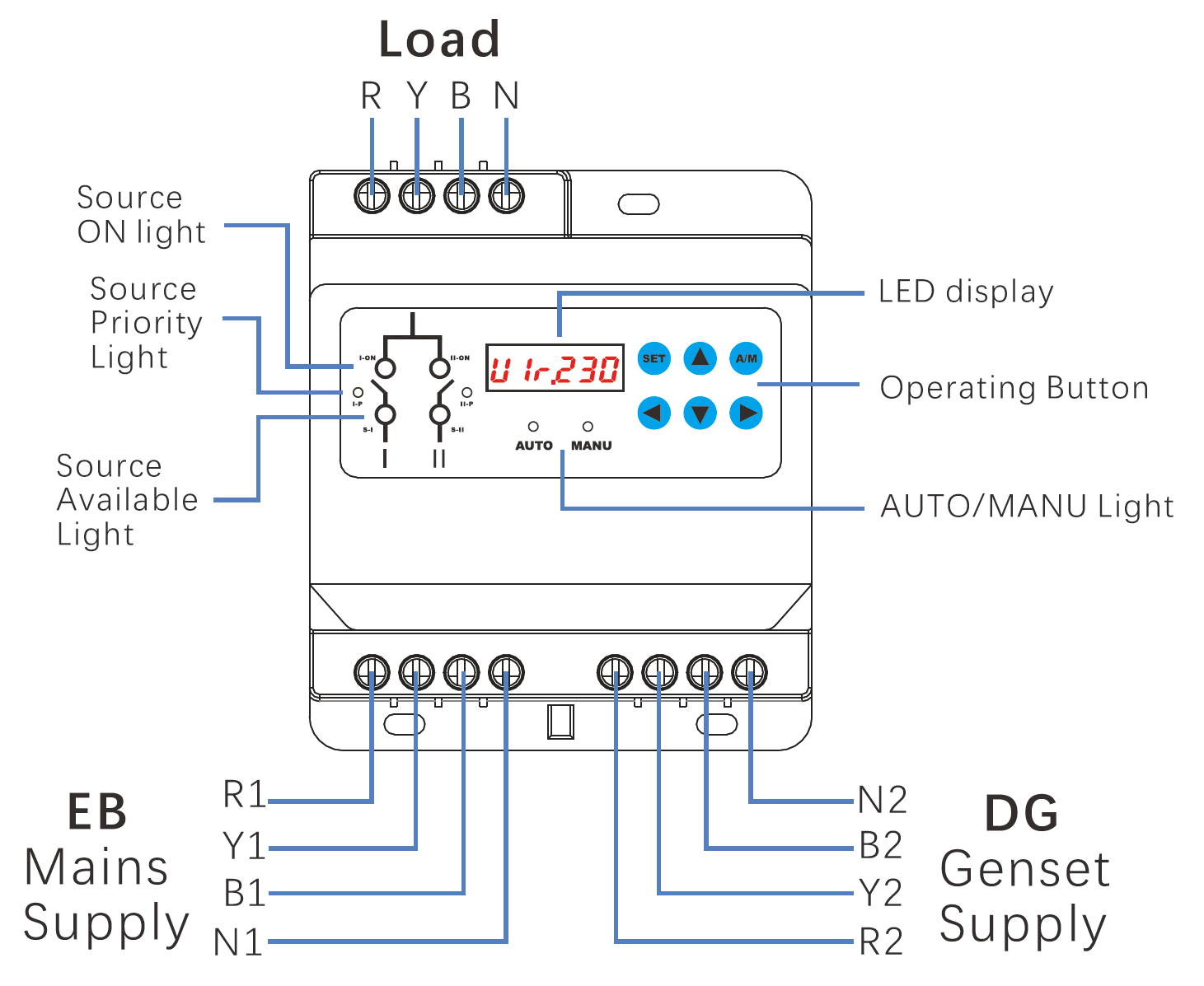

Introduction
