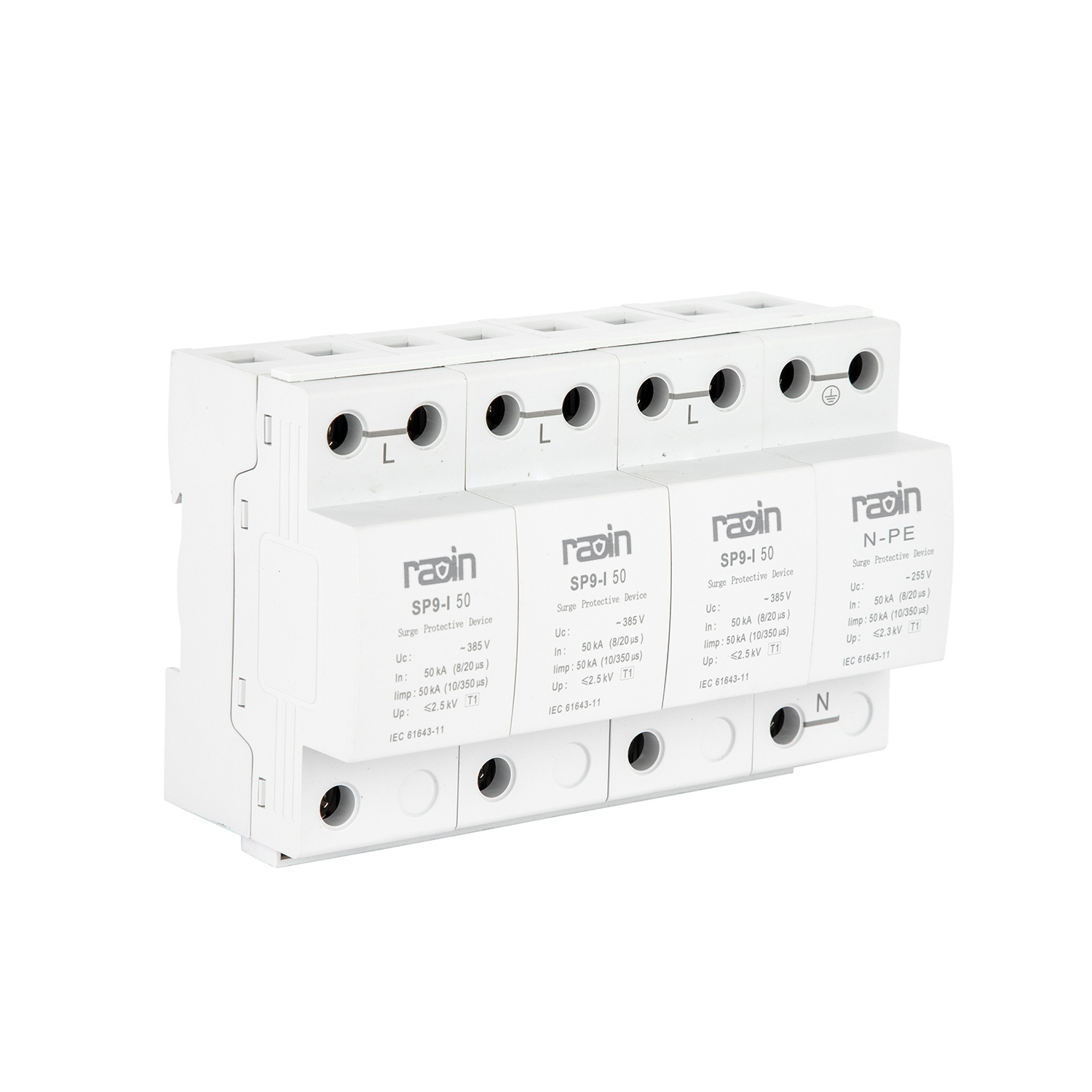

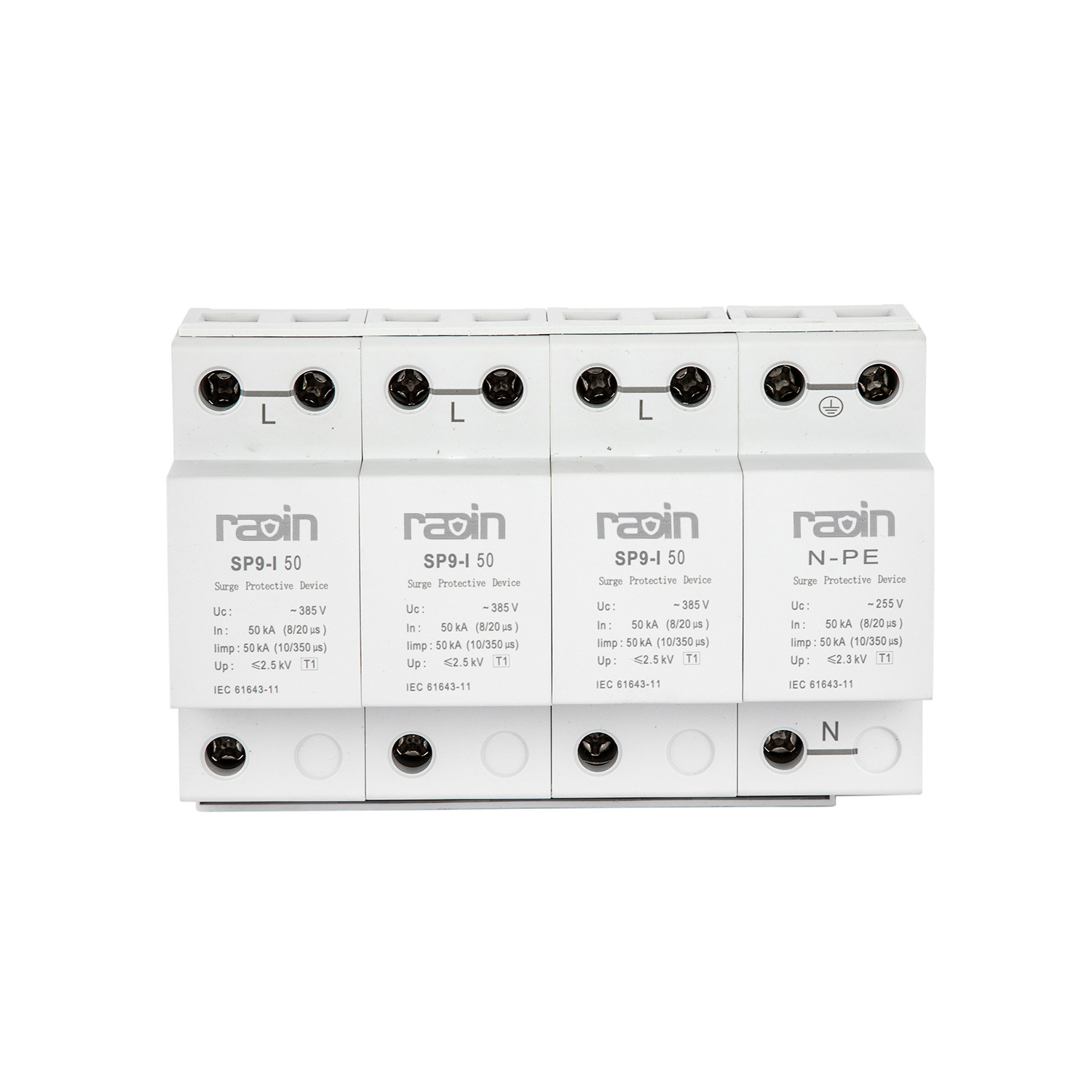

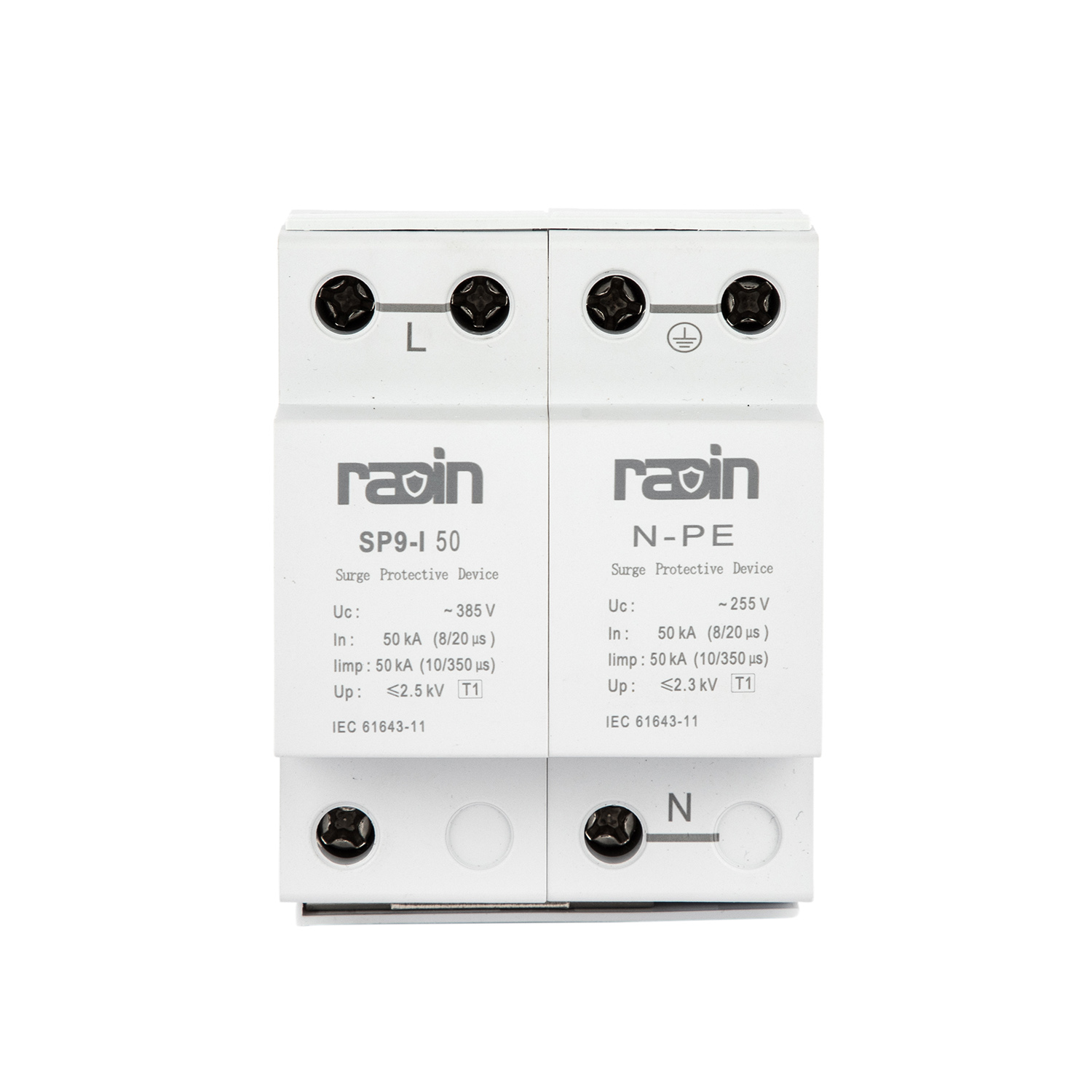

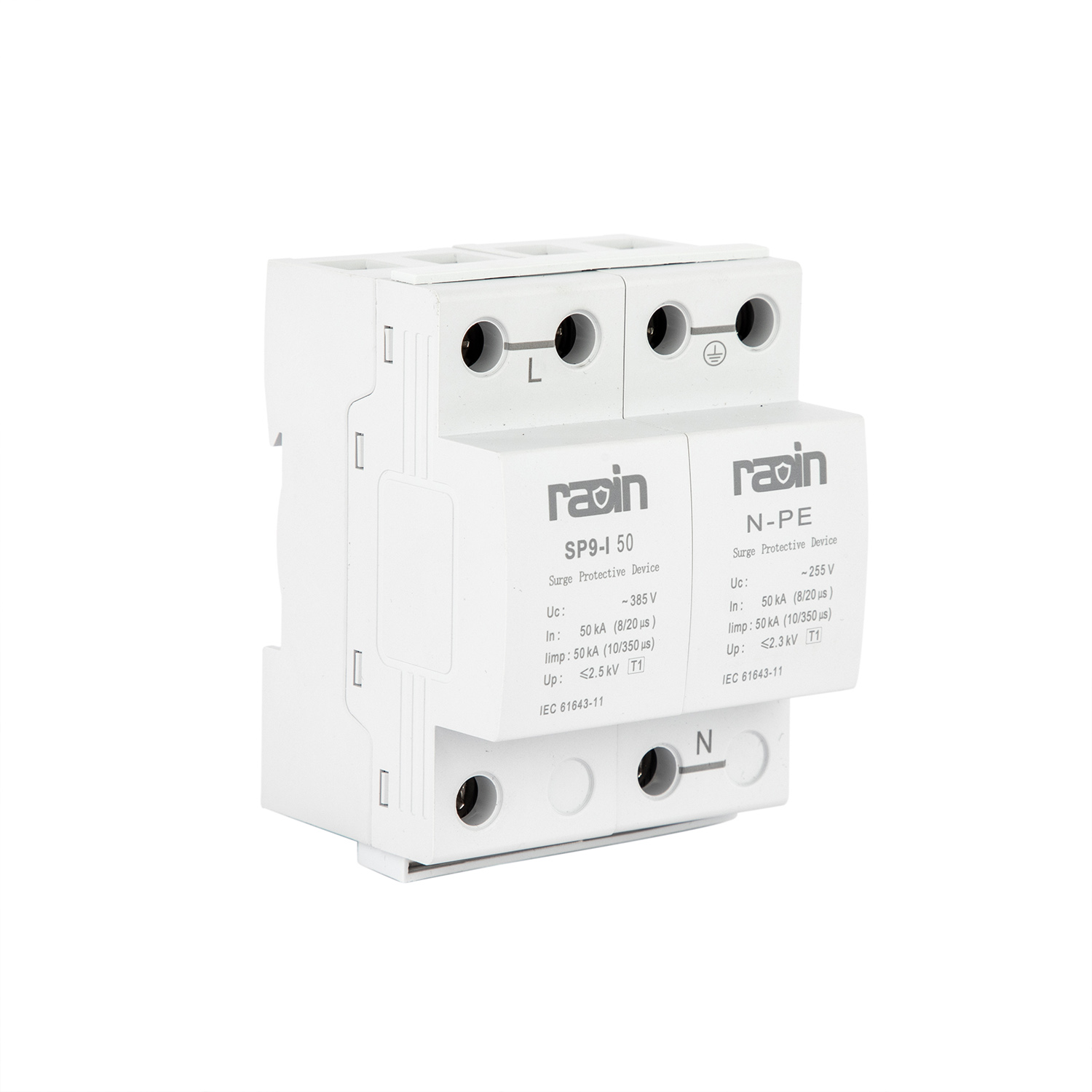

SP9-I Series T1 Class Surge Protection Device

SP9 series surge protection device is suitable for TT, IT, TN-S, TN-C, TN-C-S and other power supply system under AC 50/60Hz and 230/400V, able to release 50kA lightning overcurrent
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button


Features

  • T1 class lightning protection

  • Large flow capacity, low lightning impulse residual voltage

  • No subsequent flow, no arc leakage

  • Fast heat dissipation and good stability

  • 35mm Rail installation.

  • Current peak value Ipeak (10/35us)

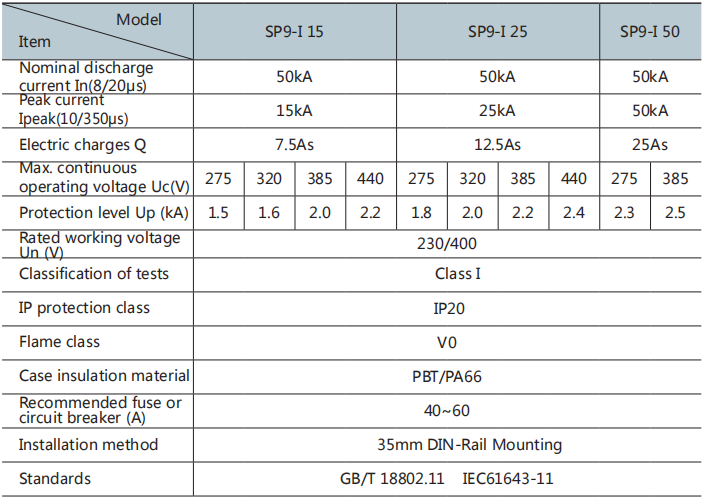

Technical Data

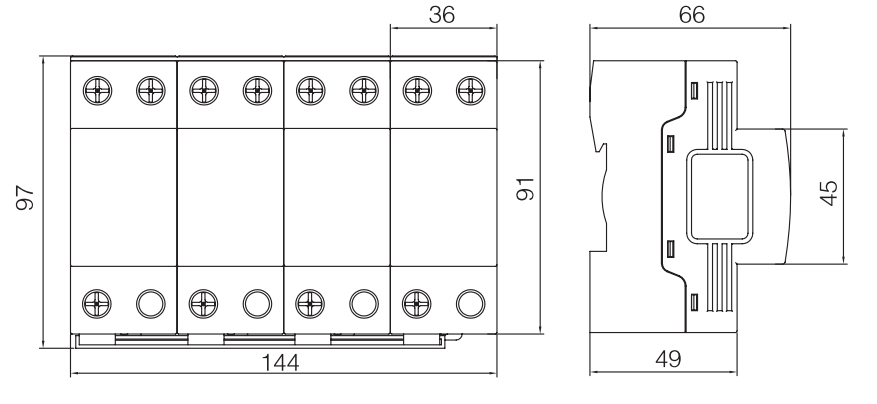

Dimensions (mm)
