RDW1 Series circuit breaker is mainly used in rated service current up to 6300A of distribution networks to distribute electric energy and protect lines.
| Quantity: | |
|---|---|

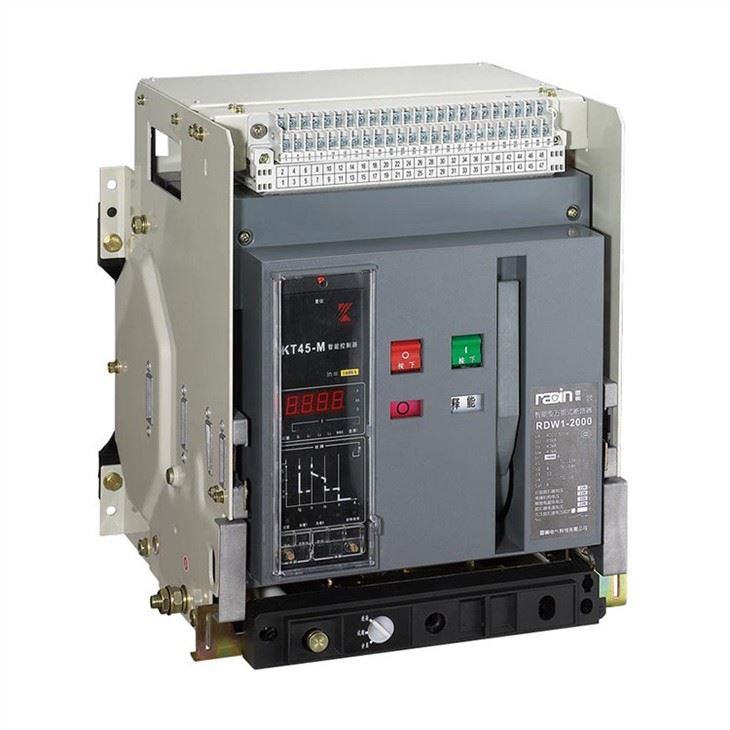

RDW1 (DW45) Series
General
RDW1 Series circuit breaker is mainly used in rated service current up to 6300A of distribution networks to distribute electric energy and protect lines.
● AC rated current: 630-6300A;
● Short-circuit breaking capacity: 80kA-120kA;
● Rated working voltage below AC690V;
● Both the 3 poles and 4 poles are available;

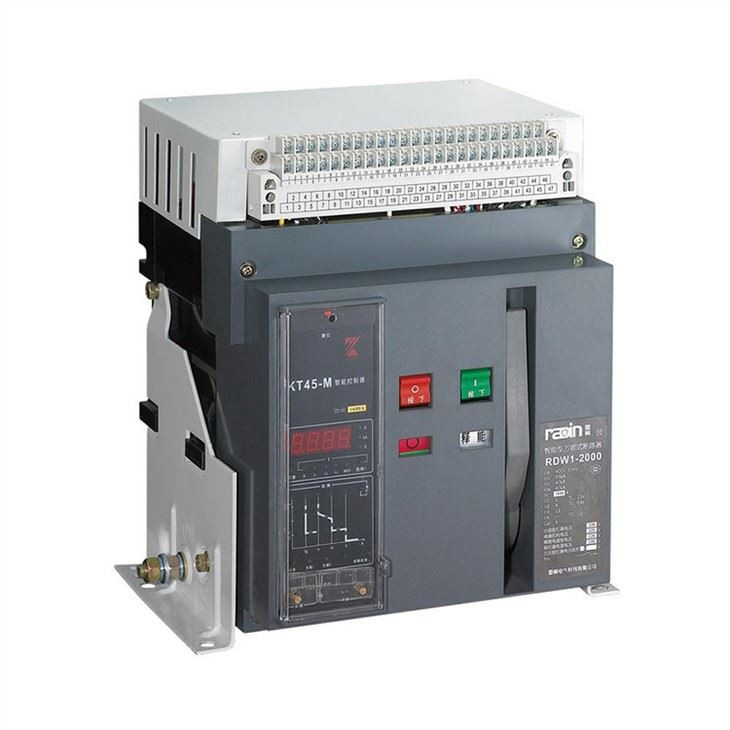

● Two types: Draw-out type and fixed type;
● Equipped with many types of intelligent controllers with different functions;
● Standards: IEC60947-2, GB14048.2.
Model
① | Company code |
② | Air circuit breaker |
③ | Design code |
④ | Frame class rated current |
⑤ | Number of poles (3 pole may be omitted) |
Operation Conditions
● When the ambient air temperature is -5°C to +40°C, the mean value is no greater than +35°C within 24 hours.
● Altitude: not higher than 2000m for the installation site.
● When the ambient air temperature is +40°C, the relative humidity of the air shall not be higher than 50%; a higher relative humidity is allowed at a lower temperature; for example, for the wettest month, the maximum relative humidity averaged shall be 90% while the lowest temperature averaged in that month +20°C, and special measures shall be taken for the condensation occasionally produced due to temperature change.
● Pollution grade: Class 3.
● The installation category of the breaker's main circuit is IV and the control circuit and auxiliary circuit being III.
● The circuit breaker should be installed according to the manual.The vertical tilt angle should not exceed 5°.
● If the air circuit breaker is installed in a small compartment of the switch board, the protection grade is up to IP40.
RDW1 (DW45) Series
Feature
a. Intelligent controller types: H type (communication type), M type (standard type), L type (economic type), 2M type (high immunity type) and 2H type (high immunity communication type);
b. It have overload long time-delay, short circuit short time-delay and short circuit instantaneous functions;
c. Single-phase earthing fault protection;
d. Display function: setting current display, action current display and each phase voltage display (the voltage display should be informed when ordering);
e. Alarm function: overload alarm;
f. Self checking function: overheat self checking and micro self checking;
g.Test function: Action characteristics of test controller.
Main Technical Parameters
Rated current table | |
Frame class rated current Inm (A) | Rated current In (A) |
2000 | 400, 630, 800, 1000, 1250, 1600, 2000 |
3200 | 2000, 2500, 2900, 3200 |
4000 | 3200, 3600, 4000 |
6300 | 4000, 5000, 6300 |
Rated short circuit breaking capacity and short time withstand current table | |||||
Frame class rated current | 2000 | 3200 | 4000 | 6300 | |
Rated ultimate short circuit breaking capacity | 400V | 65 | 80 | 100 | 120 |
Icu (kA) o-co | 690V | 50 | 65 | 65 | 85 |
Rated short circuit making capacity | 400V | 176/0.2 | 220/0.2 | 220/0.2 | 264/0.2 |
n×Icu (kA)/ cosΦ | 690V | 105/0.25 | 143/0.2 | 143/0.2 | 187/0.2 |
Rated operation short circuit breaking capacity | 400V | 40 | 50 | 65 | 100 |
Ics (kA) o-co-co | 690V | 40 | 65 | 65 | 75 |
Rated short time withstand current | 400V | 40 | 65 | 65/80 (MCR) | 85/100 (MCR) |
(kA) 1s 0.4s, o-co | 690V | 40 | 50 | 50/65 (MCR) | 65/75 (MCR) |
RDW1 (DW45) Series
Main Technical Parameters
The maximum loss power is 360W, and changed current at different temperature | |||||||
Ambient Temperature ℃ | Rated Current | ||||||
400A | 630A | 800A | 1000A | 1250A | 1600A | 2000A | |
40 | 400A | 630A | 800A | 1000A | 1250A | 1600A | 2000A |
50 | 400A | 630A | 800A | 1000A | 1250A | 1550A | 1900A |
60 | 400A | 630A | 800A | 1000A | 1250A | 1550A | 1800A |
Note: The capacity-reducing factor is 0.9 for above 2500A.The 4000A of 6000A is not reducing capacity.
Controller setting current Ir (I/In) and tolerance table | ||||||
Long time- | Short time-delay | Instantaneous | Earthing fault | |||
Ir2 | Tolerance | Ir3 | Tolerance | Ir4 | Tolerance | |
(0.4-1)In | (0.4-15)In | ±10% | In-50kA (Inm=2000A) In-75kA (Inm=3200A~4000A) In-100kA (Inm=6300A) | ±15% | Inm=2000~4000A (0.2~0.8) In (The maximum 1200A the minimum 160A) | ±10% |
long time-delay overcurrent protection, inverse time characteristics I2T = (1.5Ir1) 2T (1.05~2.0) Ir1action time table, and the time tolerance is ±15% | ||||||||
1.05 Ir1 | 1.3Ir1 | 1.5 Ir1 setting time s | 15 | 30 | 60 | 120 | 240 | 480 |
>2h Non-trip | <1h Trip | 2.0 Ir1 action time s | 8.4 | 16.9 | 33.7 | 67.5 | 135 | 270 |
The short time-delay overcurrent protection characteristics is limited time. If the low multiple is inverse time, the characteristics: I2Ts=(8Ir1) 2ts, tsts is time-delay design time; when the overcurrent >8Ir1, It changes to limit time. The time tolerance is±15%. | |||||||
Delay time (s) | Return time (s) | ||||||
0.1 | 0.2 | 0.3 | 0.4 | 0.06 | 0.14 | 0.23 | 0.35 |
RDW1 (DW45) Series

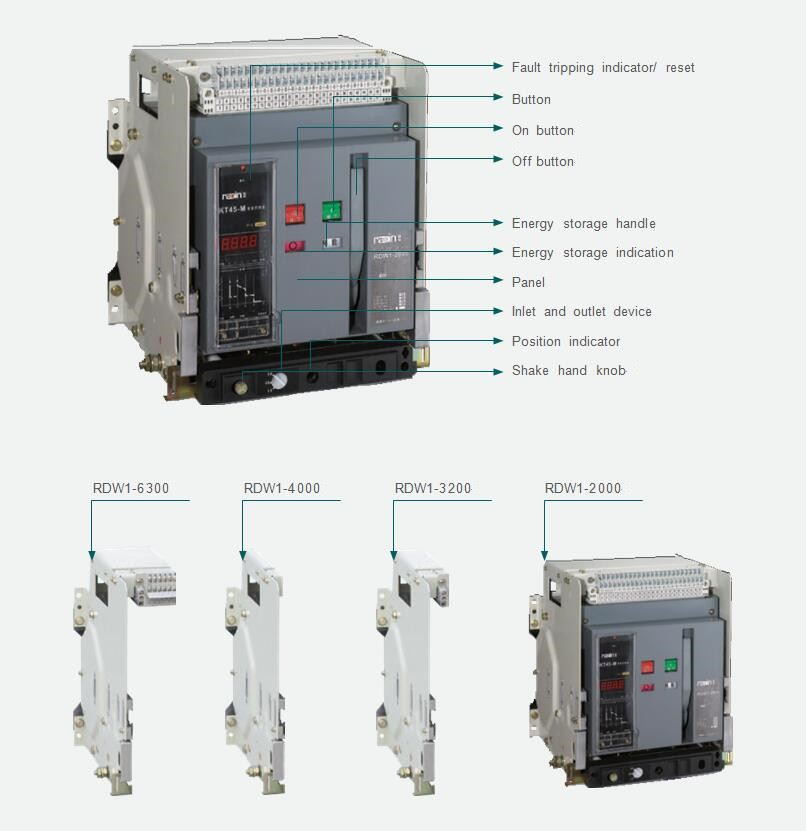

Product Structure

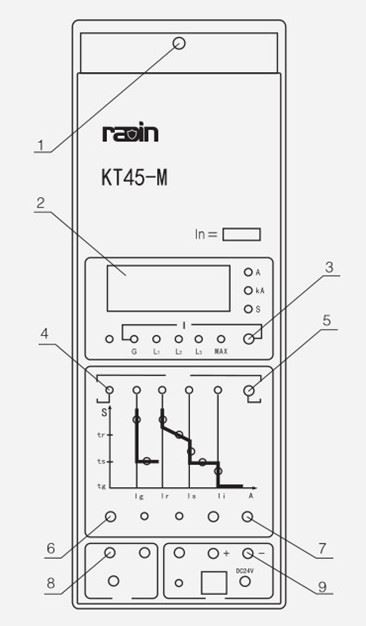

M Type Controller
① Reset key
② Current (voltage), time indicator
③ Select key
④ LED indicator
⑤ Clear LED key. After the setting, testing and fault checking of the controller, make the circuit breaker at normal operation.
⑥ Setting key
⑦ Fault checking key.After the breaker tripping, press this key to indicate the kind of fault.
⑧ Tripping and Non-tripping key
⑨ Storage "+" "-" key
Is short time-delay current setting value Ts short time-delay time setting value
Ii short circuit instantaneous current setting value
Ig earthing current setting value Tg earthing time setting value
Ir long time-delay current setting value Tr long time-delay time setting value

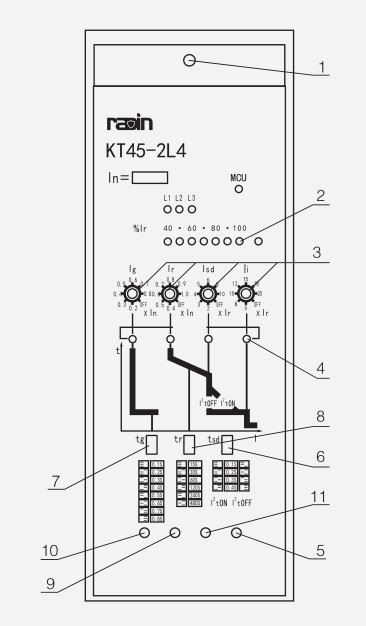

L Type Controller
① Reset key
After the breaker tripping, press it to switch the breaker.
② Unload indicator
Indicate overload long time-delay current
③ Long time-delay, short time-delay, instantaneous and earthing protective current setting key
④ Fault indicator key Indicate the kind of fault
⑤ Clear LED key
After the setting, testing and fault checking of the controller, make the circuit breaker at normal operation.
⑥ Long time-delay overload time setting key
⑦ Earthing current setting key
⑧ Short time-delay time setting key
⑨ Fault checking key
After the breaker tripping, press it to indicate the kind of fault
⑩ Select key Test key
L Type Setting
● Long time-delay setting
Ir setting current from (0.4-1)In;
Tr setting time is 30s, 60s, 120s and 240s
Rotate Ir to off position to quit the function
● Short time-delay setting
Isd setting current from (3-10)In; Tsd setting time is 0.2s and 0.4s.
Rotate Isd to off position to quit the function
● Instantaneous setting
Ii setting current from (3-10)In or (10-20)In or (7-14)In;
Rotate Ii to off position to quit the function
● Earthing fault setting
Ig setting current from (0.2-0.8)In
Tg setting time is 0.2s, 0.4s, 0.6s and 0.8s
Rotate Ig to off position to quit the function
● Controller is in operation state.
Press clear LED key to finish all the parameters.
