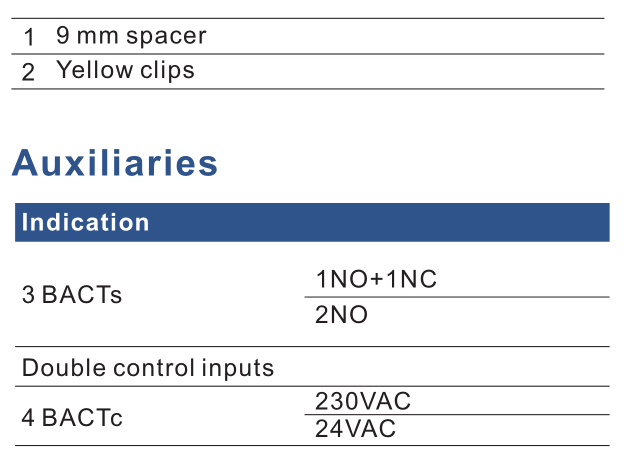

Auxiliaries

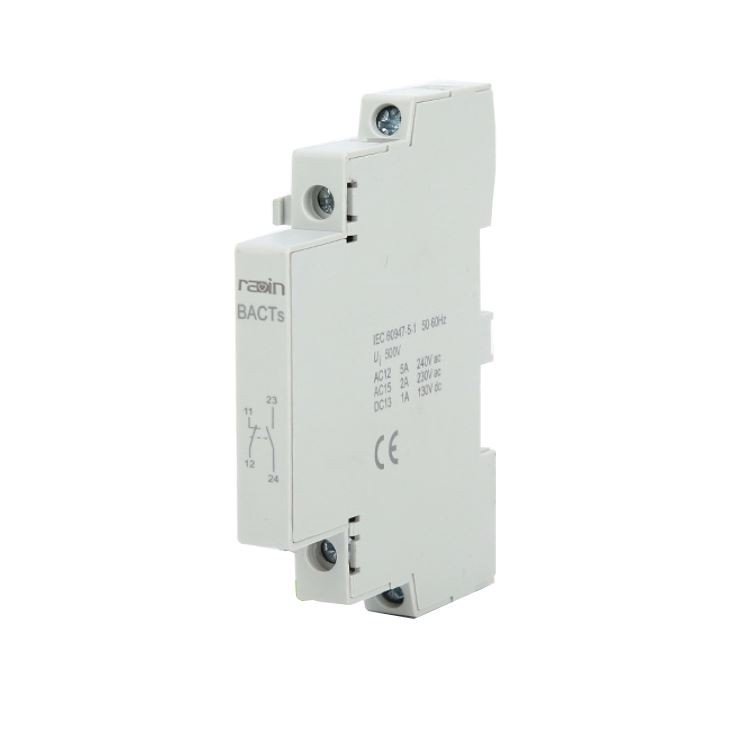

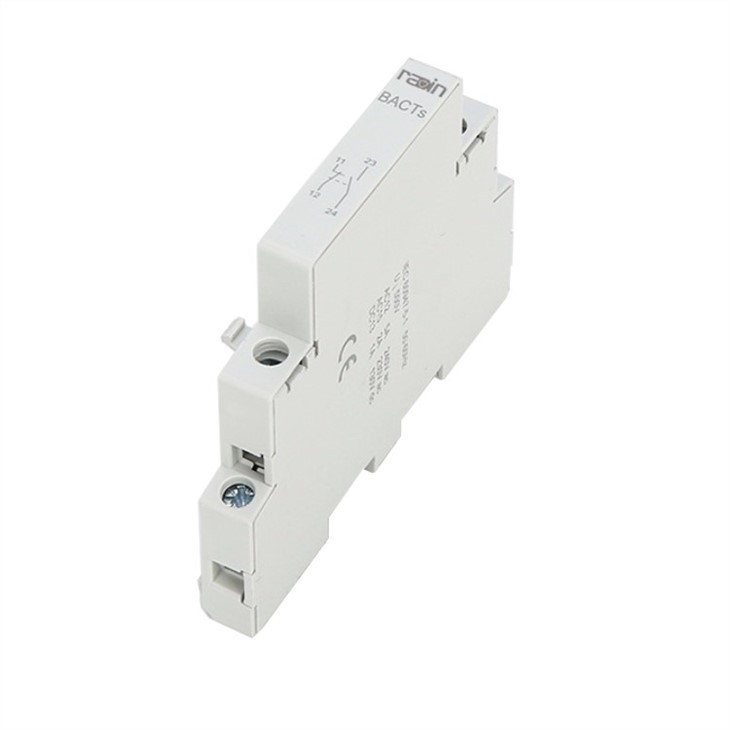

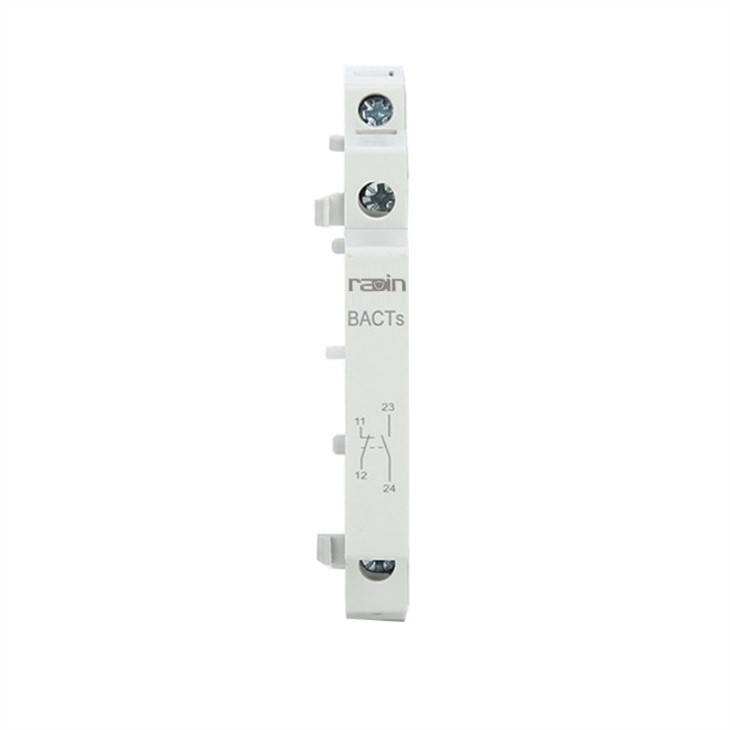

BACTs

BACTc

Type

Indication

Impulse/latched control

With Open/Close auxiliary contact

● This auxiliary allows indication of the”open” or”closed”position of the contactor power contacts

● This auxiliary, combined with contactors, enables them to be controlled by

2 order types:

● impulse order for local control(input T)

● latched order for centralised control (input X)

● the last order received takes priority

Wiring diagrams

● Mounted to the right of BCH8

● Mounted to the left of BCH8 by yellow clips(1)

● Mains power outages:

○ <1 s:keeps its initial status

○≥5 s:reset

○ put back into operation by manual operation on input X or T.

● Minimum impulse duration:250 ms

Technical specifications

Control voltage

VAC

24...240

230...240

24...48

(Ue)

VDC

24...130

-

Operating

frequency

Hz

50/60

50/60

Width in 9 mm modules

2

Auxiliary contact (breaking capacity)

● Mininimum:10mA at 24V DC/AC-COSφ=1

● Maximum:

○ 5A at 240V AC-COSφ=1

○ 1 A at 130V DC

-

Number of contacts

1NO+1NC -

-

Operating

temperature

℃

-5℃to+50℃

Storage

temperature

℃

-40℃to+70℃
