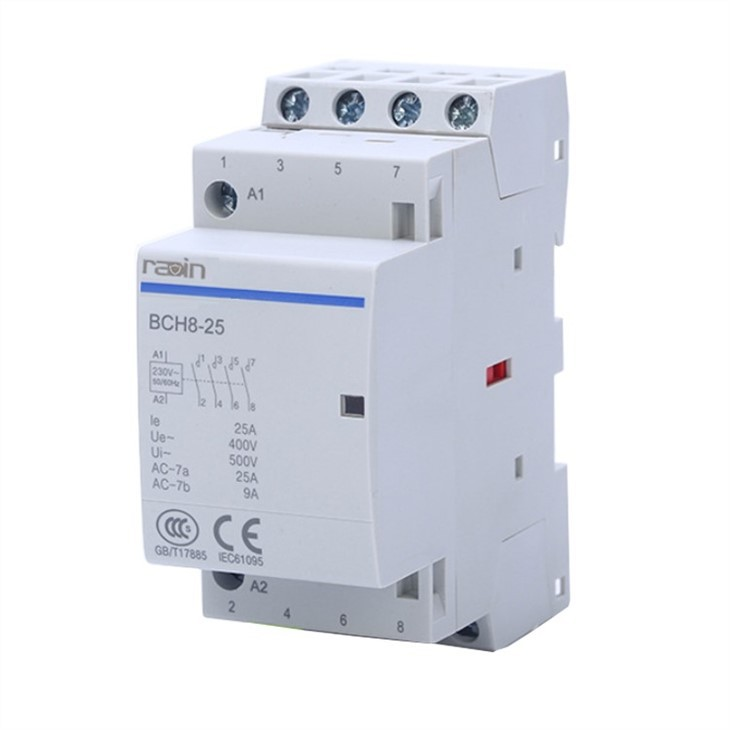

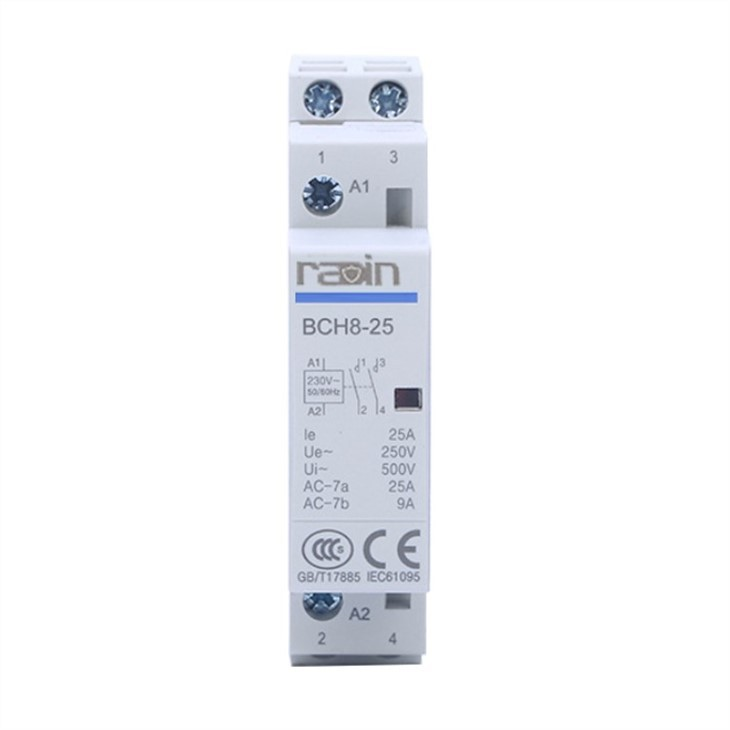

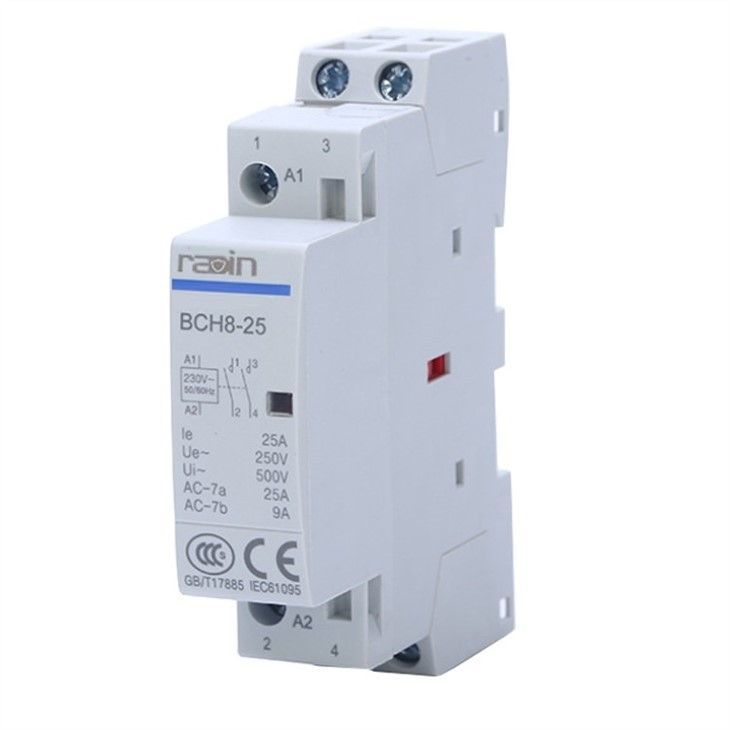

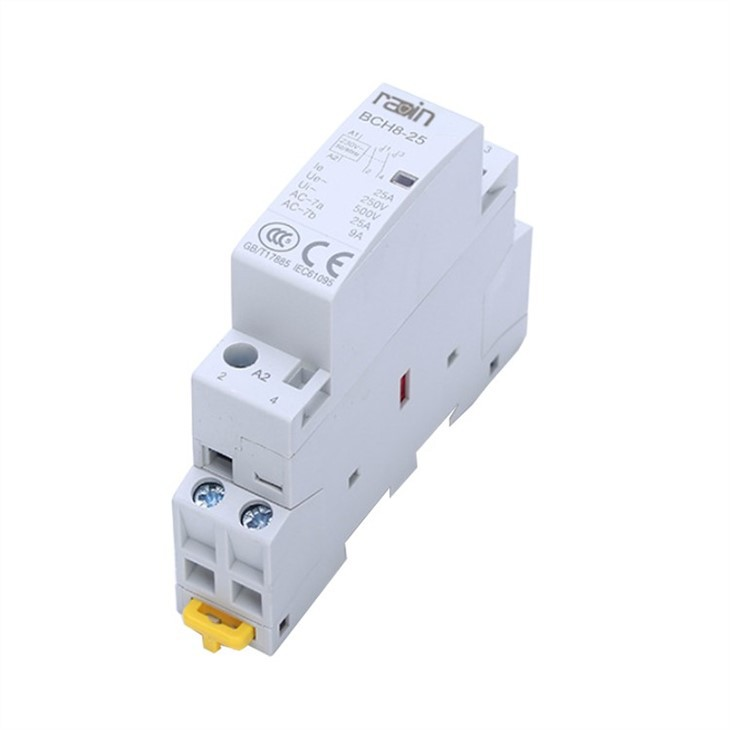

25A Module Contactors Din-rail Mounting for Motor Protections and Controls
| Quantity: | |
|---|---|
BCH8 module contactors are available in two type ● Module contactors auto control
● Moduoe contactors manual control with manual operation handle
EN 61095,IEC61095
BCH8 module contactors can be combined with auxiliary control, protection and indication functions.
● BCH8 module contactors can be used to remote control applications in alternative networks:
○ lighting, heating, ventilation,roller blinds, sanitary hot water
○ mechanical ventilation systems, etc
○ load-shedding of non-priority circuits
Choice of 50 Hz contactors | |||||||
Type | Contactor | ||||||
Rating A | 16 | 20 | 25 | 32 | 40 | 63 | 100 |
Auxiliaries | Yes | ||||||
BACTs indication auxiliary | Yes | ||||||
BACTc control auxiliaryYellow clips |
Yes | ||||||
BCH8 contactors-50Hz | ||||||
Type | Width in 9 mm modules | |||||

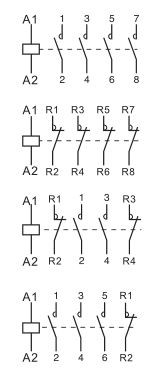

1P Rating(In) AC-7a | Rating(In) AC-7b | Control voltage (VAC)(50Hz) | Contact | |||
1P
| 16A | 6A | 24 110 230 | 1NO
1NC |
2 | |
20A | 7A | |||||
25A | 8.5A | |||||
2P | ||||||
| 16A | 6A | 24 110 230 | 2NO 1NO+1NC 2NC |
2 | |
20A | 8.5A | |||||
25A | 8.5A | |||||
32A | 15A | 24 110 230 | 2NO 1NO+1NC 2NC |
4 | ||
40A | 15A | |||||
63A | 20A | |||||
100A |
- | 24 110 230 |
2NO |
6 | ||
3P | ||||||
| 16A | 6A | 24 110 230 | 3NO
3NC |
4 | |
20A | 8.5A | |||||
25A | 8.5A | |||||
32A | 15A | 24 110 230 | 3NO
3NC |
6 | ||
40A | 15A | |||||
63A | 20A | |||||
4P | ||||||
| 16A | 6A |
24 110 230 | 4NO 4NC 2NO+2NC 3NO+1NC |
4 | |
20A | 8.5A | |||||
25A | 8.5A | |||||
32A | 15A | 24 110 230 | 4NO 4NC 2NO+2NC 3NO+1NC |
6 | ||
40A | 15A | |||||
63A | 20A | |||||
100A |
- | 24 110 230 |
4NO |
12 | ||
