Module Contactors Manual Control 2NO 2NC, 4NO, 4NC, 110VAC coil, 220VAC coil 240VAC coil
| Quantity: | |
|---|---|
Catalogue
BCH8 manual control contactor 50 Hz | |||||
Type | Width in 9 mm modules | ||||
2P | Rating(In) AC-7a | Rating(In) AC-7b | Control voltage (V AC)(50 Hz) | Contact | |
| 16A | 6A | 24 110 230 | 2NO 1NO+1NC 2NC |
2 |
20A | 8.5A | ||||
25A | 8.5A | ||||
32A | 15A | 24 110 230 | 2NO 1NO+1NC 2NC |
4 | |
40A | 15A | ||||
63A | 20A | ||||
4P | |||||
| 16A | 6A |
24 110 230 | 4NO 4NC 2NO+2NC 3NO+1NC |
4 |
20A | 8.5A | ||||
25A | 8.5A | ||||
32A | 15A | 24 110 230 | 4NO 4NC 2NO+2NC 3NO+1NC |
6 | |
40A | 15A | ||||
63A | 20A | ||||

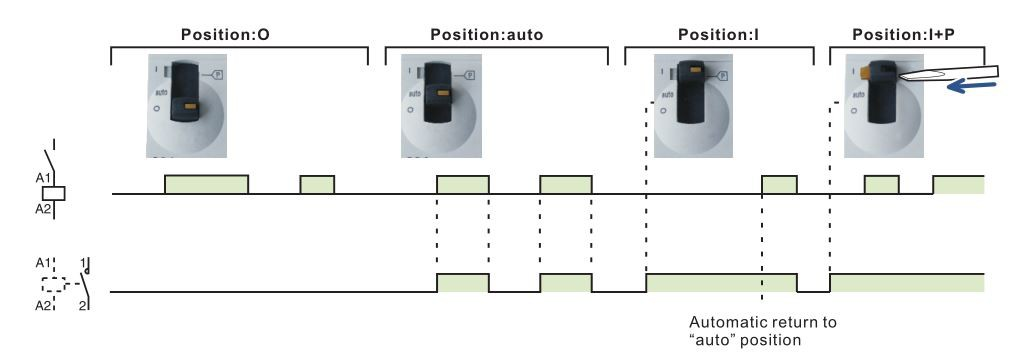

Operation(Manual control contactor)
BCH8 manual control contactor - 50Hz
Type
Raring(In) | Control voltage (V AC)(50 Hz) | Consumption | Max. power | ||||
AC-7a | AC-7b | Holding | Inrush | ||||
2P | 25A | 8.5A | 230...240 | 2.7VA | 9.2VA | 1.2W | |
40A | 15A | 220...240 | 4.6VA | 34VA | 1.6W | ||
63A | 20A | 220...240 | 4.6VA | 34VA | 1.6W | ||
4P | 25A | 8.5A | 220...240 | 4.6VA | 34VA | 1.6W | |
40A | 15A | 220...240 | 6.5VA | 53VA | 2.1W | ||
63A | 20A | 220...240 | 6.5VA | 53VA | 2.1W | ||
Hot Tags: module contactors manual control 2no 2nc, China, suppliers, manufacturers, factory, price, discount
