Use digitalized RDCPS1 as main switch, integrated the functions of fuse, circuit breaker, contactor, starter, isolator, thermal relay, overload (or over current, phase missing) protection relay, motor protector, intelligent leakage circuit breaker (relay) etc.
| Quantity: | |
|---|---|

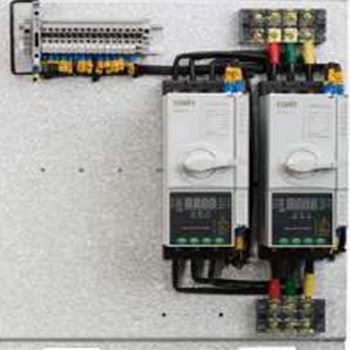

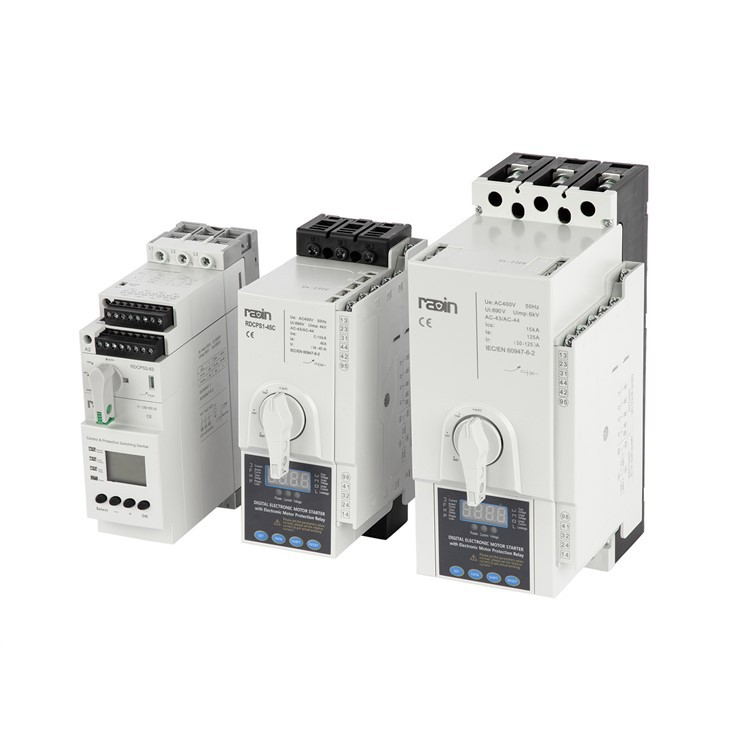

RDCPS1-N Reversible Control And Protection Switch
Summary
15hp Reversible Motor Control and Protective Switches adopts digital RDCPS1 as the main switch and integrates fuses, circuit breakers, contactors, starters, isolators, thermal relays, overload (or overcurrent, phase loss) protection relays, motor protectors, and intelligent leakage circuit breakers (relays) and other functions. Necessary accessories such as voltage electrical appliances and contactors form a new RDCPS1-D type two-speed motor control and protection switch device through mechanical interlocking and electrical interlocking to achieve integrated, internal coordinate two-speed motor automatic control and protection functions.
15hp Reversible Motor Control and Protective Switches is suitable for the control and protection of two-speed motor starters. It has the same characteristics of the delta star step-down starter RDCPS1-J and the auto-coupled step-down starter RDCPS1-Z. The product can be installed with electrical interlocking device according to requirements, which has the advantages of high reliability, high breaking capacity, long service life, small size, small installation space, and low maintenance workload.
Model Description
① | Company code |
② | Control and protection switching device (multi-function device) |
③ | Product combine mode: double speed controller |
④ | Current rating In: 45A, 125A |
⑤ | Rated operation breaking capacity Ics: C: 15kA, Y: 35kA |
⑥ | High speed electronic overload trip unit type: M - motor protector type, L distribution protection type |
⑦ | High speed trip unit rated current Ie: 1 - 125A |
⑧ | Low speed electronic trip unit type: M - motor protector type, L distribution protection type |
⑨ | Low speed trip unit rated current Ie: 1 - 125A |
⑩ | Aux. contact code: 06- 3NO 2NC + 1 fault tripping + 1 fault alarming |
11 | Control power voltage Us: M-230V, Q-400V |
12 | Extend code: Standard type no code, F- firefighting, L-leakage, G-Isolation, T- communication |

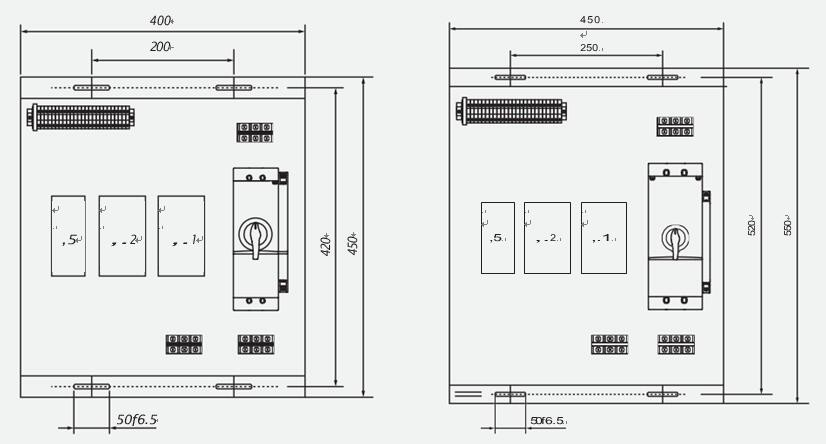

Outline And Mounting Size (mm)
| |
RDCPS1N-45 | RDCPS1N-125 |
Hot Tags: 15hp reversible motor control and protective switches, China, suppliers, manufacturers, factory, price, discount
RDCPS1-N Reversible Control And Protection Switch
Summary
15hp Reversible Motor Control and Protective Switches adopts digital RDCPS1 as the main switch and integrates fuses, circuit breakers, contactors, starters, isolators, thermal relays, overload (or overcurrent, phase loss) protection relays, motor protectors, and intelligent leakage circuit breakers (relays) and other functions. Necessary accessories such as voltage electrical appliances and contactors form a new RDCPS1-D type two-speed motor control and protection switch device through mechanical interlocking and electrical interlocking to achieve integrated, internal coordinate two-speed motor automatic control and protection functions.
15hp Reversible Motor Control and Protective Switches is suitable for the control and protection of two-speed motor starters. It has the same characteristics of the delta star step-down starter RDCPS1-J and the auto-coupled step-down starter RDCPS1-Z. The product can be installed with electrical interlocking device according to requirements, which has the advantages of high reliability, high breaking capacity, long service life, small size, small installation space, and low maintenance workload.
Model Description
① | Company code |
② | Control and protection switching device (multi-function device) |
③ | Product combine mode: double speed controller |
④ | Current rating In: 45A, 125A |
⑤ | Rated operation breaking capacity Ics: C: 15kA, Y: 35kA |
⑥ | High speed electronic overload trip unit type: M - motor protector type, L distribution protection type |
⑦ | High speed trip unit rated current Ie: 1 - 125A |
⑧ | Low speed electronic trip unit type: M - motor protector type, L distribution protection type |
⑨ | Low speed trip unit rated current Ie: 1 - 125A |
⑩ | Aux. contact code: 06- 3NO 2NC + 1 fault tripping + 1 fault alarming |
11 | Control power voltage Us: M-230V, Q-400V |
12 | Extend code: Standard type no code, F- firefighting, L-leakage, G-Isolation, T- communication |
Outline And Mounting Size (mm)
| |
RDCPS1N-45 | RDCPS1N-125 |
