Use digitalized RDCPS1 as main switch, adopt modularized structure, integrated the functions of fuse, circuit breaker, contactor, starter, isolator, thermal relay, overload (or over current, phase missing) protection relay, motor protector, intelligent leakage circuit breaker (relay) etc.
| Quantity: | |
|---|---|

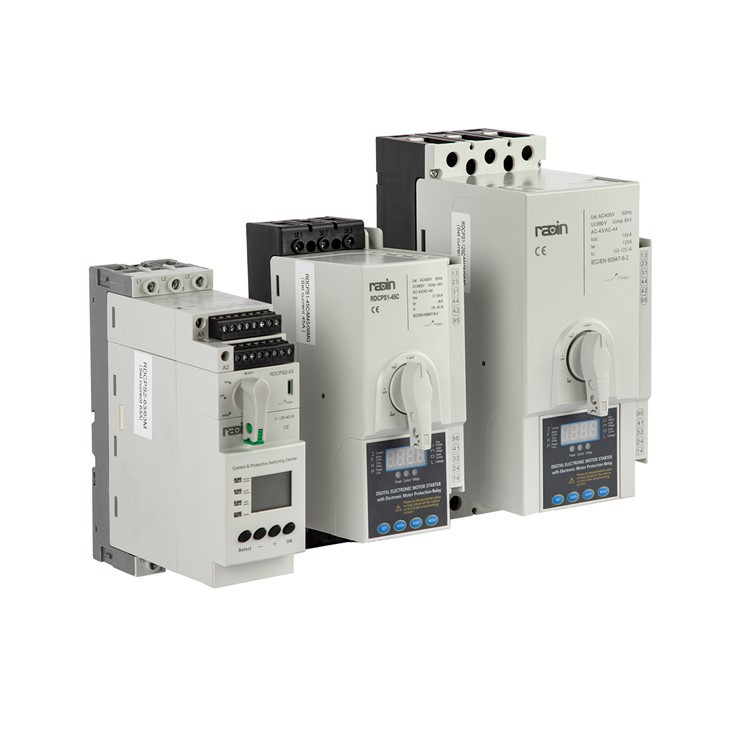

RDCPS1-J Delta-Star Voltage Reduce Start Control And Protection Switch
Summary

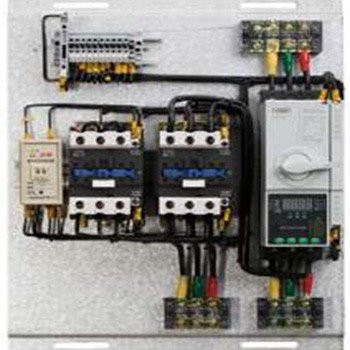

Use digitalized RDCPS1 as main switch, adopt modularized structure, integrated the functions of fuse, circuit breaker, contactor, starter, isolator, thermal relay, overload (or over current, phase missing) protection relay, motor protector, intelligent leakage circuit breaker (relay) etc. low voltage appliance together, with suitable reversible contactor, timer relay and other necessary accessories, through electrical interlock to form new protection type delta-star voltage reduce starter, RDCPS1-J or RDCPS1-J2,self-coupling voltage reduce starter RDCPS1-Z, resistivity voltage reduce starter RDCPS1-R, to achieve integrated, internal coordinated voltage reduce start auto control and protection function, suitable for start control and protection of below 50KW motors. Have panel indication and electromechanical signal alarm auxiliary contact module. The selected reversible contactor product inside have mechanical interlock and electrical interlock accessories, greatly improved the operating reliability. Product can install with electrical interlock as per request, have the advantages of high reliability, high breaking capacity, long working life, small size, small mounting space, less maintenance job etc.
Model Description
| ① | Company code |
| ② | Control and protection switching device (multi-function device) |
| ③ | Product combine mode: Delta-star voltage reduce starter |
| ④ | Current Rating In: 45A,125A |
| ⑤ | Rated operation breaking capacity Ics: C: 15kA, Y: 35kA |
| ⑥ | Poles and protected poles: 33 - 3pole with 3pole protected; |
| ⑦ | Load type code: M - motor protector type, L distribution protection type |
| ⑧ | Trip unit rated current Ie: 1 - 125A |
| ⑨ | Aux. contact code : 06- 3 NO 2NC + 1 fault tripping + 1 fault alarming |
| ⑩ | Control power voltage Us: M-230V, Q-400V |
| 11 | Extend code: Standard type no code, F- firefighting, L-leakage, G-Isolation, T- communicati |

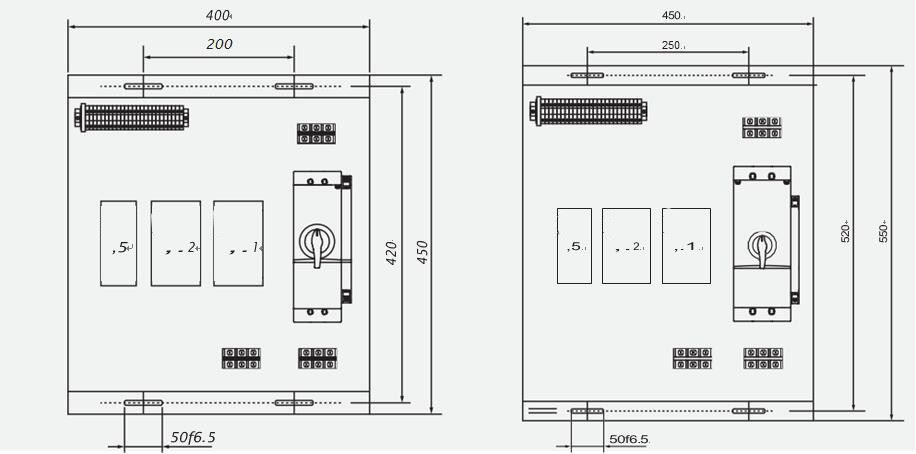

Outline And Mounting Size (mm)
 | |
| RDCPS1J-45 | RDCPS1J-125 |
Hot Tags: 1hp automatic voltage reduce motor starter motor protectors, China, suppliers, manufacturers, factory, price, discount
RDCPS1-J Delta-Star Voltage Reduce Start Control And Protection Switch
Summary
Use digitalized RDCPS1 as main switch, adopt modularized structure, integrated the functions of fuse, circuit breaker, contactor, starter, isolator, thermal relay, overload (or over current, phase missing) protection relay, motor protector, intelligent leakage circuit breaker (relay) etc. low voltage appliance together, with suitable reversible contactor, timer relay and other necessary accessories, through electrical interlock to form new protection type delta-star voltage reduce starter, RDCPS1-J or RDCPS1-J2,self-coupling voltage reduce starter RDCPS1-Z, resistivity voltage reduce starter RDCPS1-R, to achieve integrated, internal coordinated voltage reduce start auto control and protection function, suitable for start control and protection of below 50KW motors. Have panel indication and electromechanical signal alarm auxiliary contact module. The selected reversible contactor product inside have mechanical interlock and electrical interlock accessories, greatly improved the operating reliability. Product can install with electrical interlock as per request, have the advantages of high reliability, high breaking capacity, long working life, small size, small mounting space, less maintenance job etc.
Model Description
| ① | Company code |
| ② | Control and protection switching device (multi-function device) |
| ③ | Product combine mode: Delta-star voltage reduce starter |
| ④ | Current Rating In: 45A,125A |
| ⑤ | Rated operation breaking capacity Ics: C: 15kA, Y: 35kA |
| ⑥ | Poles and protected poles: 33 - 3pole with 3pole protected; |
| ⑦ | Load type code: M - motor protector type, L distribution protection type |
| ⑧ | Trip unit rated current Ie: 1 - 125A |
| ⑨ | Aux. contact code : 06- 3 NO 2NC + 1 fault tripping + 1 fault alarming |
| ⑩ | Control power voltage Us: M-230V, Q-400V |
| 11 | Extend code: Standard type no code, F- firefighting, L-leakage, G-Isolation, T- communicati |
Outline And Mounting Size (mm)
| | |
| RDCPS1J-45 | RDCPS1J-125 |
