The continuous applied voltage on the two terminals of SPD should not more than the maximum continuous operating voltage Uc value.
| Quantity: | |
|---|---|
Application

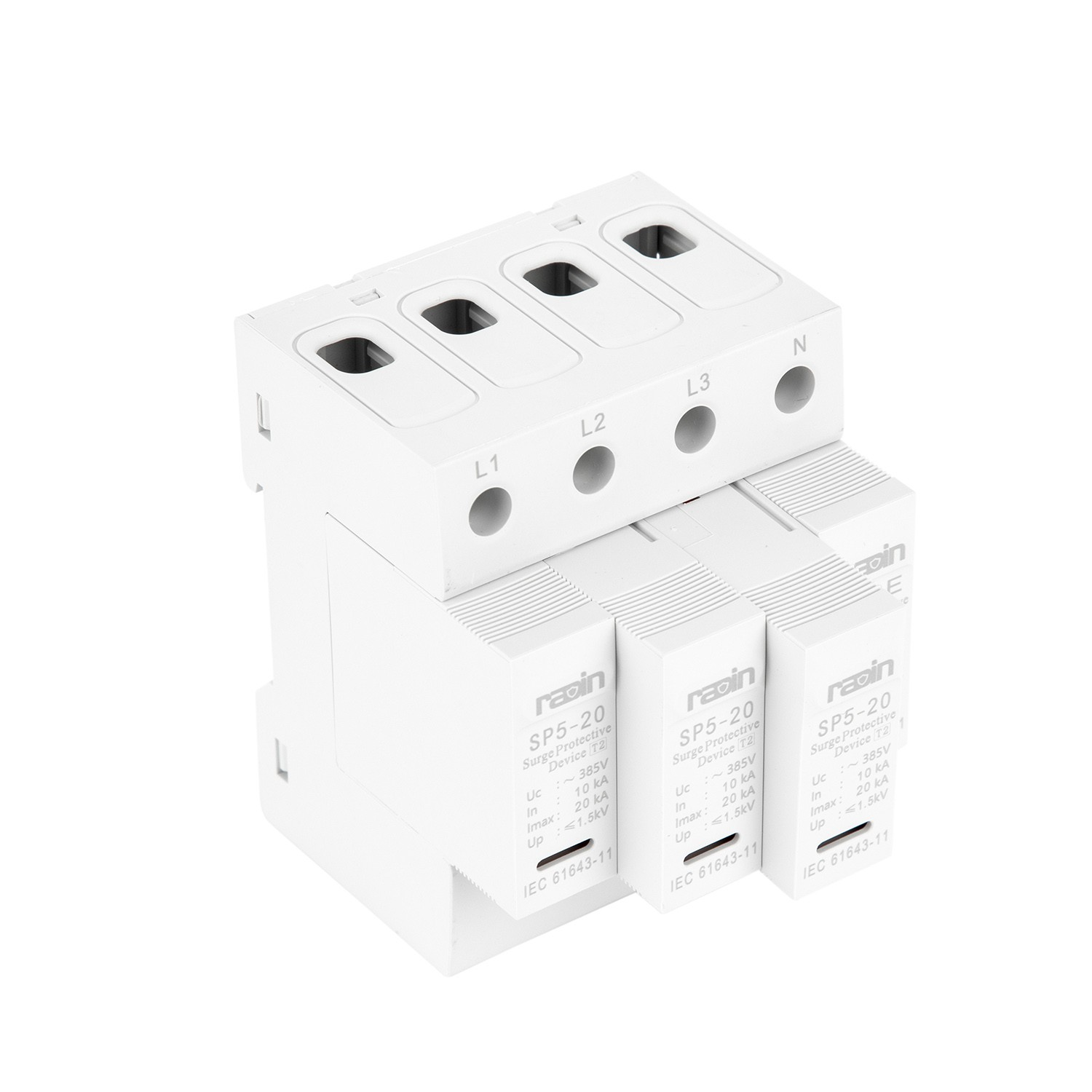

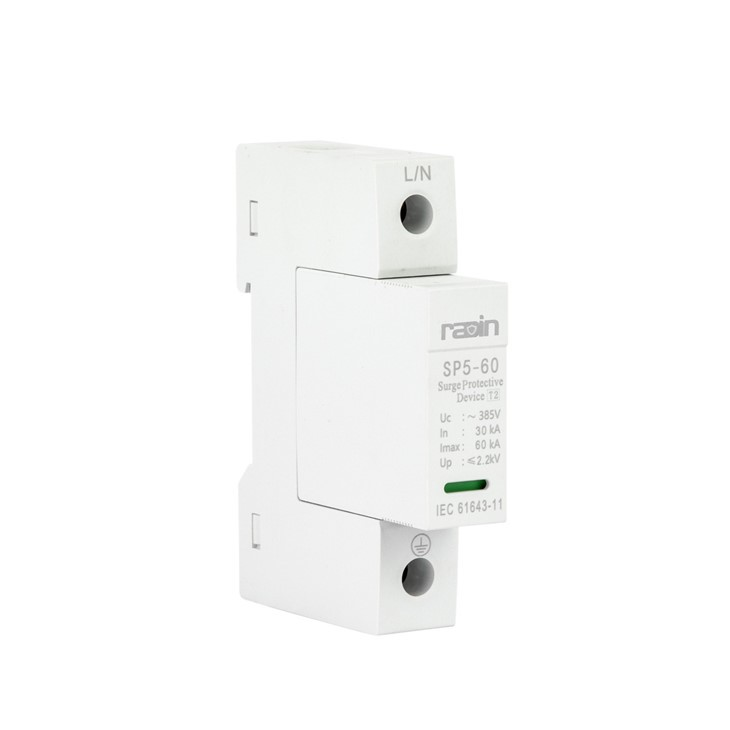

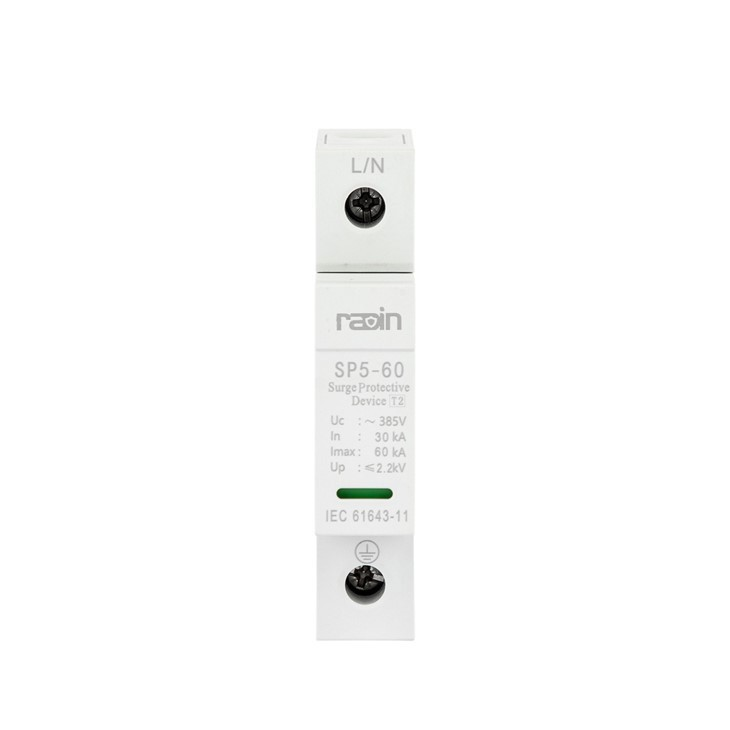

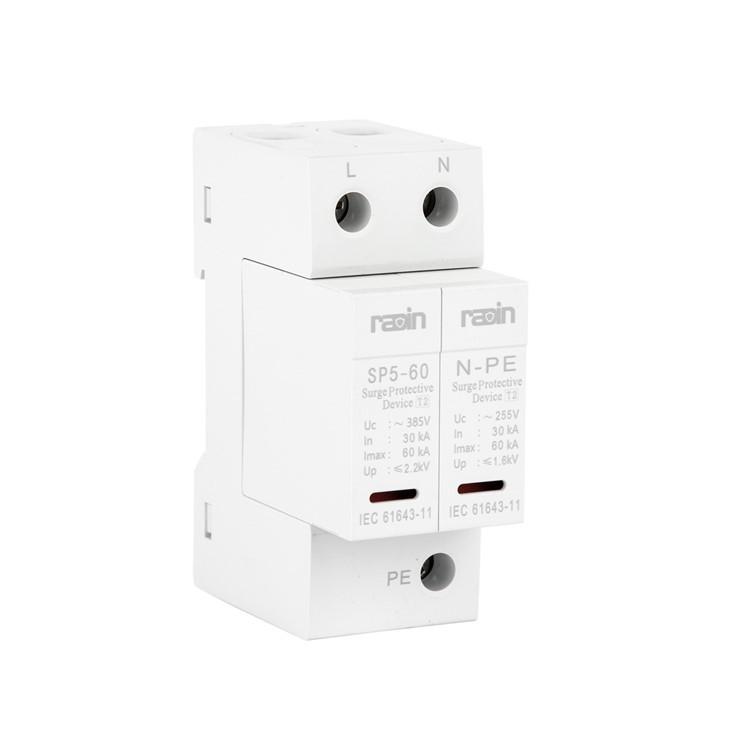

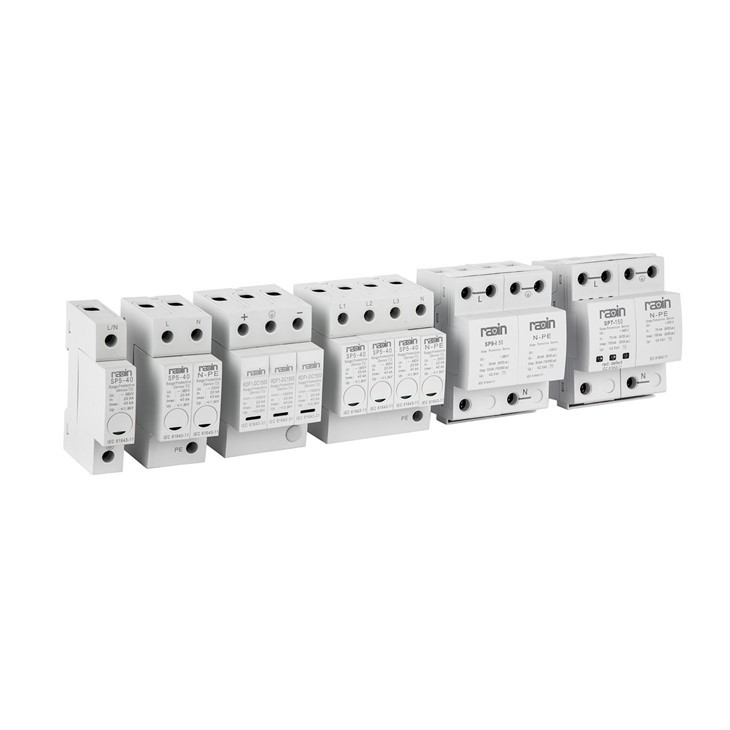

SP5 series surge protectors are suitable for all levels of lightning protection areas under AC 50/60Hz, 230/400V TT, IT, TN-S, TN-C, TN-CS and other power supply systems, and can release up to 100kA lightning overcurrent. Installation should be installed as close as possible to the upstream line end of the protected equipment, and connect the outer conductor (L) or neutral line (N) to the grounding device of the customer's equipment. If the installation distance cannot be guaranteed, additional installations are required between all levels of protectors. Decoupling components, adding an
inductor in a low-voltage power supply system can achieve the purpose of decoupling.
Features
● New type shield structure design;
● Low residual voltage of inrush current and high tolerance;
● Action response time is less than 25ms;
● The one-piece base is more stable, and the modular design can be hot-swapped;
● Window color shows protector status; (green for normal, red for fault)
● 35mm guide rail installation, in line with general installation requirements;
Hot Tags: new sp5 surges protectors, China, suppliers, manufacturers, factory, price, discount
Application
SP5 series surge protectors are suitable for all levels of lightning protection areas under AC 50/60Hz, 230/400V TT, IT, TN-S, TN-C, TN-CS and other power supply systems, and can release up to 100kA lightning overcurrent. Installation should be installed as close as possible to the upstream line end of the protected equipment, and connect the outer conductor (L) or neutral line (N) to the grounding device of the customer's equipment. If the installation distance cannot be guaranteed, additional installations are required between all levels of protectors. Decoupling components, adding an
inductor in a low-voltage power supply system can achieve the purpose of decoupling.
Features
● New type shield structure design;
● Low residual voltage of inrush current and high tolerance;
● Action response time is less than 25ms;
● The one-piece base is more stable, and the modular design can be hot-swapped;
● Window color shows protector status; (green for normal, red for fault)
● 35mm guide rail installation, in line with general installation requirements;
Hot Tags: new sp5 surges protectors, China, suppliers, manufacturers, factory, price, discount
