RDQ3NX-A/B/C/D series ATS is comprised with two MCB and accessories, mechanical interlock transmission mechanism, intelligent controller. It has built-in A/B/C/D control modules, below are the features table.
| Quantity: | |
|---|---|

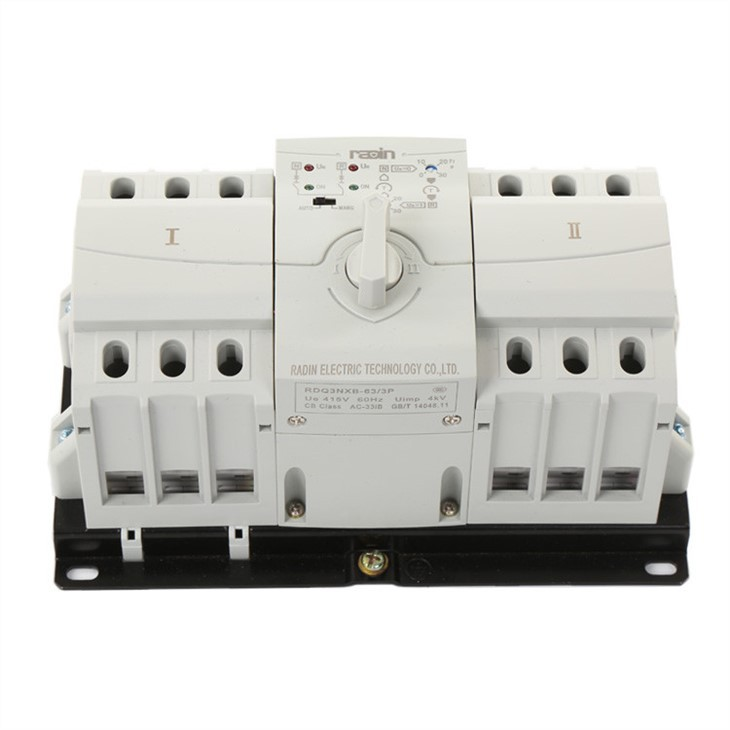

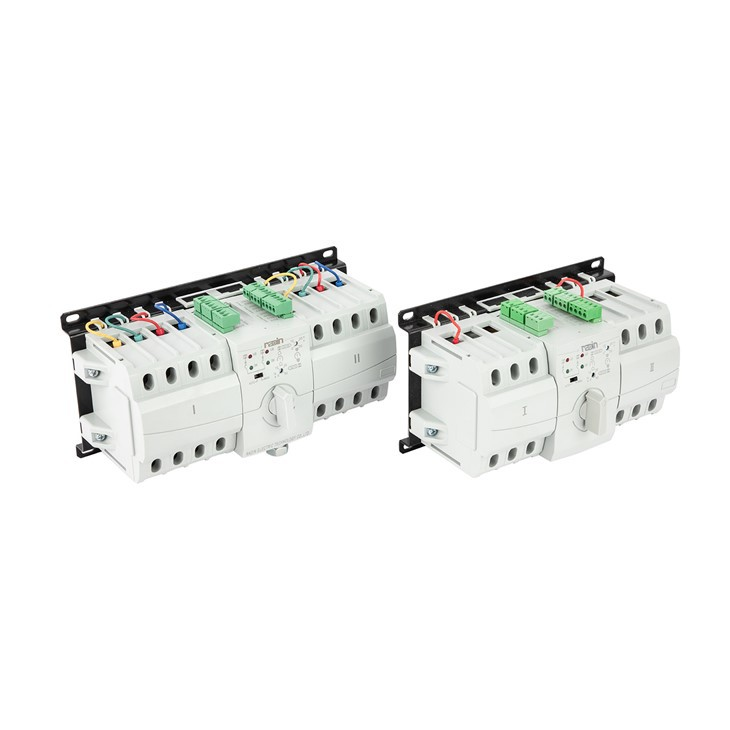

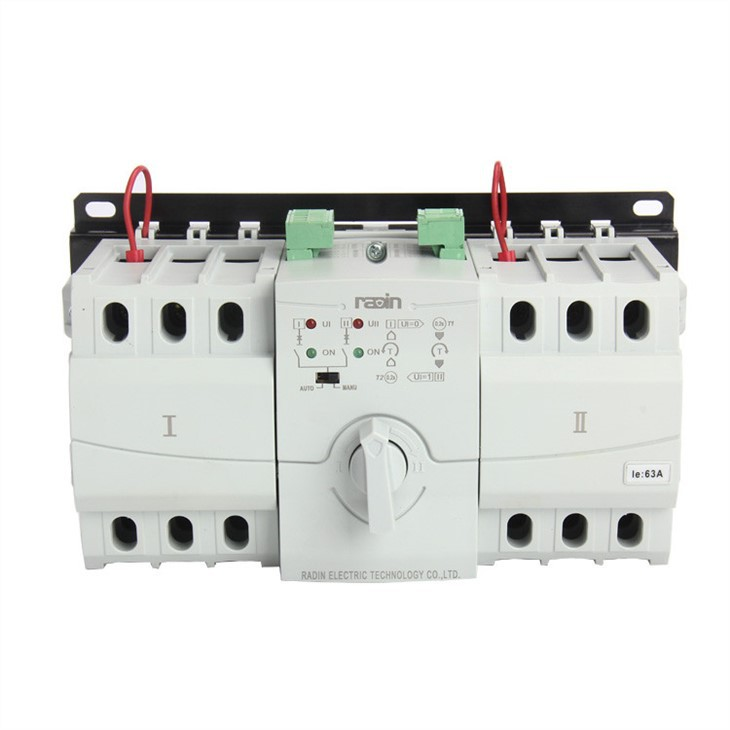

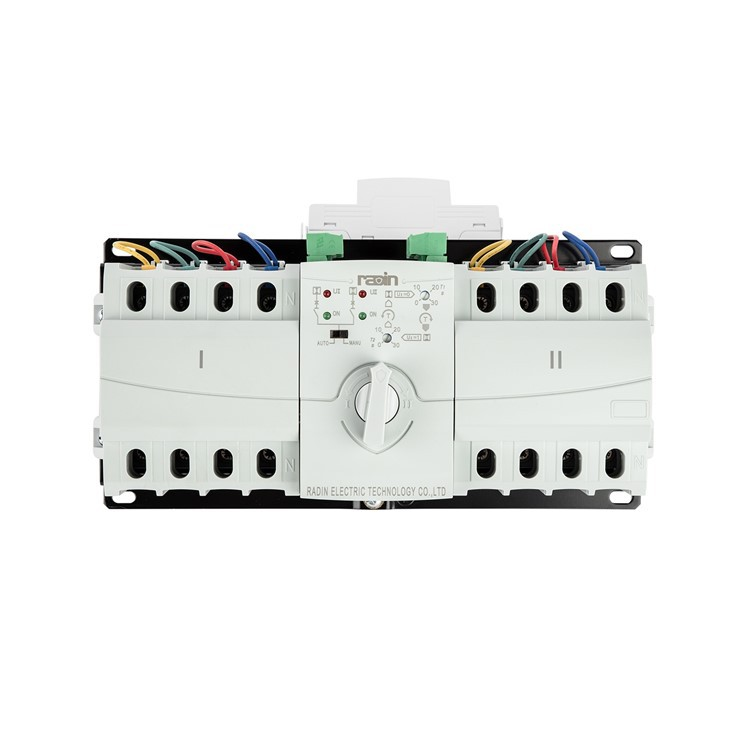

RDQ3NX MCB Changeover Switch 32A 40A 50A 63A 3 Pole Automatic Transfer Switches
Technical Features
RDQ3NX-A/B/C/D series MCB Automatic Transfer Switches are comprised with two MCB and accessories, mechanical interlock transmission mechanism, intelligent controller. It has built-in A/B/C/D control modules, below are the features table.
Types | RDQ3NX-A | RDQ3NX-B | RDQ3NX-C | RNQ3NX-D |
OperatingPower | AC 150V-265V50/60Hz | |||
Installationmode | Integrated | |||
Workingposition | Two position | ThreePosition | Two Position | ThreePosition |
Operationmode | Auto andManual | |||
Generatorcontrol | No | 5A relaycontact point | No | 5A relaycontact point |
Fire Linkage | No | Passive contact input, with one nopassive contact feedback contact | No | Passive contact input, with one nopassive contact feedback contact |
Transfer mode | Auto change auto recovery | Auto change auto recovery, | Auto change auto recovery | Auto change auto recovery, |
Transferdelay | Fixed 0.2s | 0~30s adjustable | Fixed 0.2s | 0~30s adjustable |
Recoverydelay | Fixed 0.2s | 0~30s adjustable | Fixed 0.2s | 0~30s adjustable |
Monitoredphase | A, N phase monitoring | A, B, C, N Phase monitoring | ||
Undervolt monitor | Yes | |||
Phasemissing monitor | A, N | A, B, C, N | ||
Usecatergory | AC-32B (CB Class) | |||
OEM/ODM Service

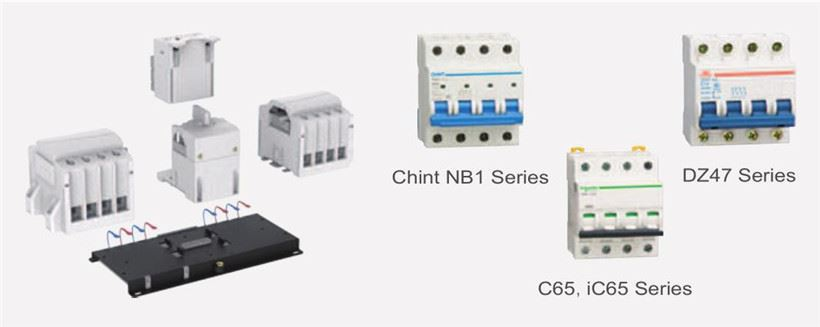

MCB Automatic Transfer Switches uses customer brand MCB as main switch.
It has smaller size and is easy to install and space saving

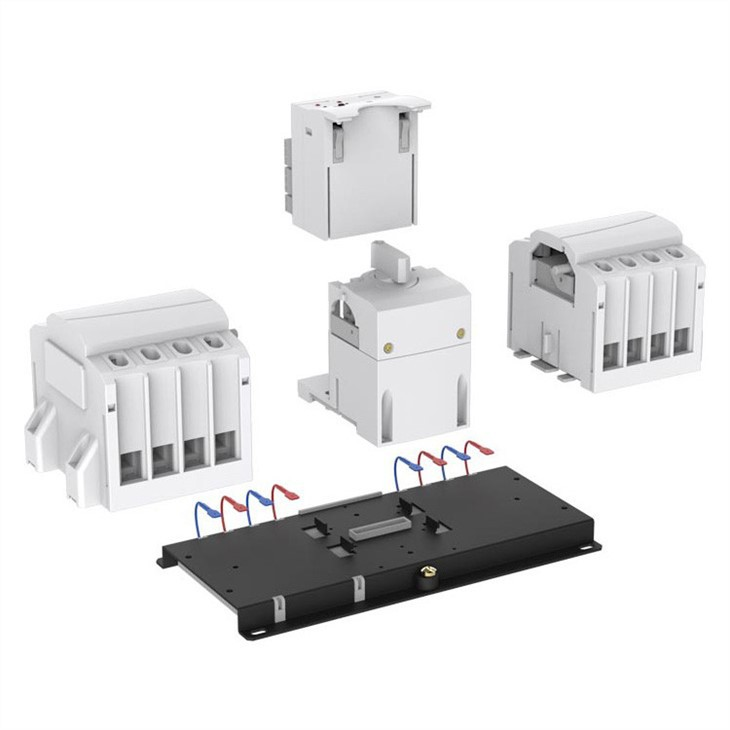

It adopts modular design, operating unit, transmission mechanism and control circuit is fully independent and easy for replacement;
Mechanical interlock device use gear transmission, avoiding two MCB close at same time; Controller power supply and power source sampling power separate from SCM control system, from the hardware design to overcome the EMI.
