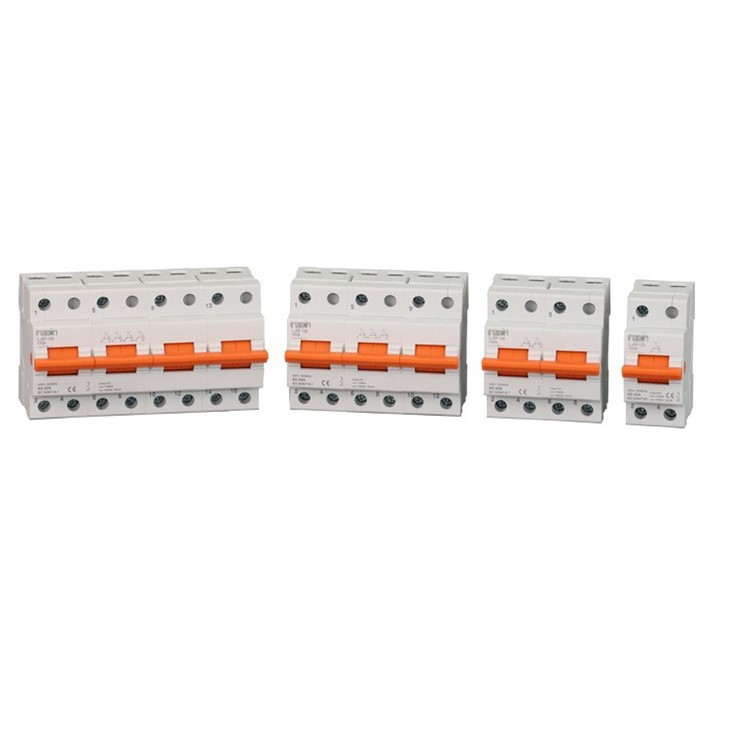

PC class Manual Transfer Switches100A 80A 63A Changeover switches module din rail mounting
| Quantity: | |
|---|---|
3 working position: I - 0 - II

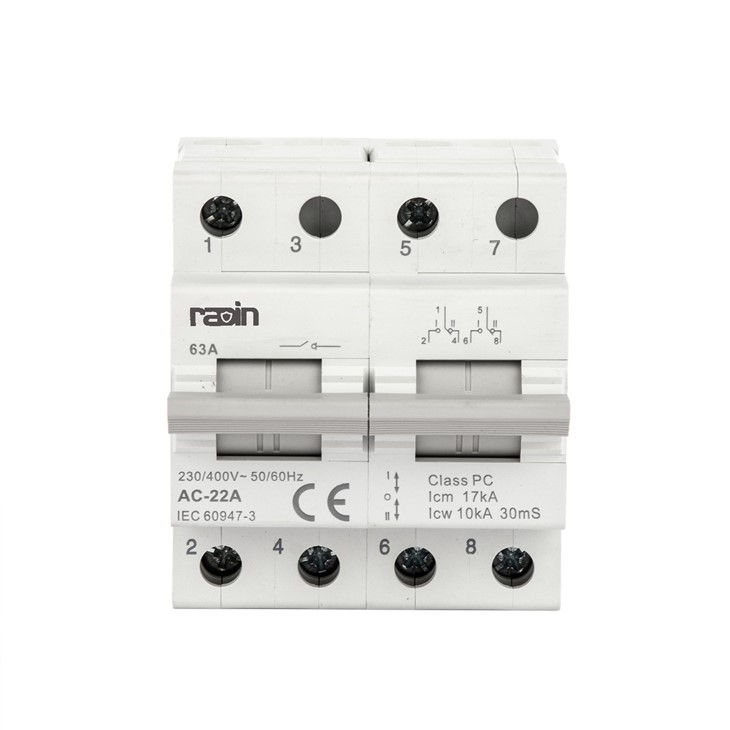

PC class Manual Transfer Switches
100A 80A 63A Changeover switches
Technical Data
Rated current(ln): 63A, 80A, 100A
Number of poles: 1P, 2P, 3P, 4P
Rated working voltage(Un):230VAC/415VAC
Rated frequency: 50/60Hz
Electrical endurance: 10,000 cycles
Mechanical endurance: 20,000 cycles
Rated impluse withstand voltage (Uimp): 4kV
Rated short circuit making capacity Icm: 17kA
Rated short time withstand current 0.03s Icw: 10kA
IP degree: IP20
Standards: IEC 60947-3
Utilization category: AC-22A
PC class
Certification: CE approved
