RDGLZ-125-3150A is applied to changeover two groups of low voltage electric circuit or two groups of load devices or safety isolation.
| Quantity: | |
|---|---|
RDGLZ Series (Changeover)

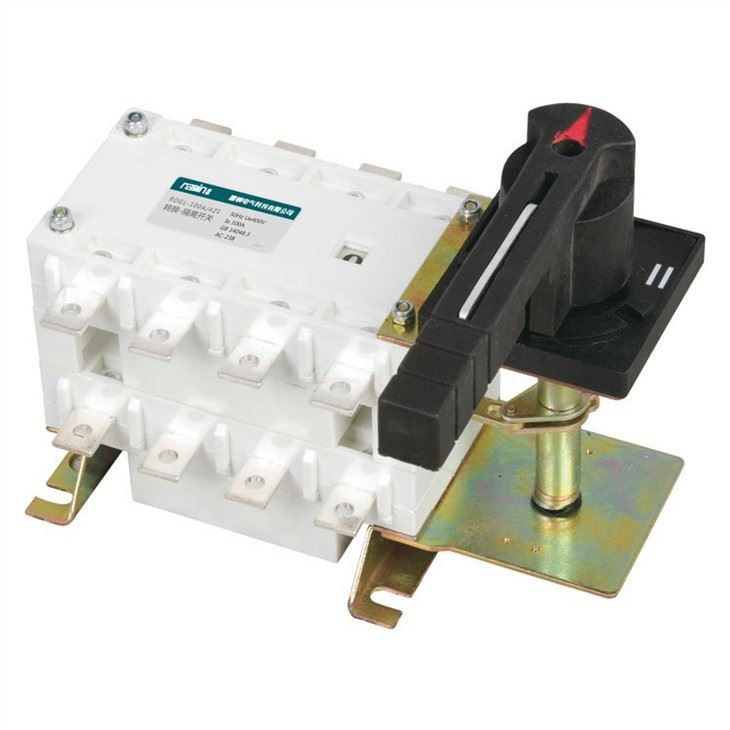

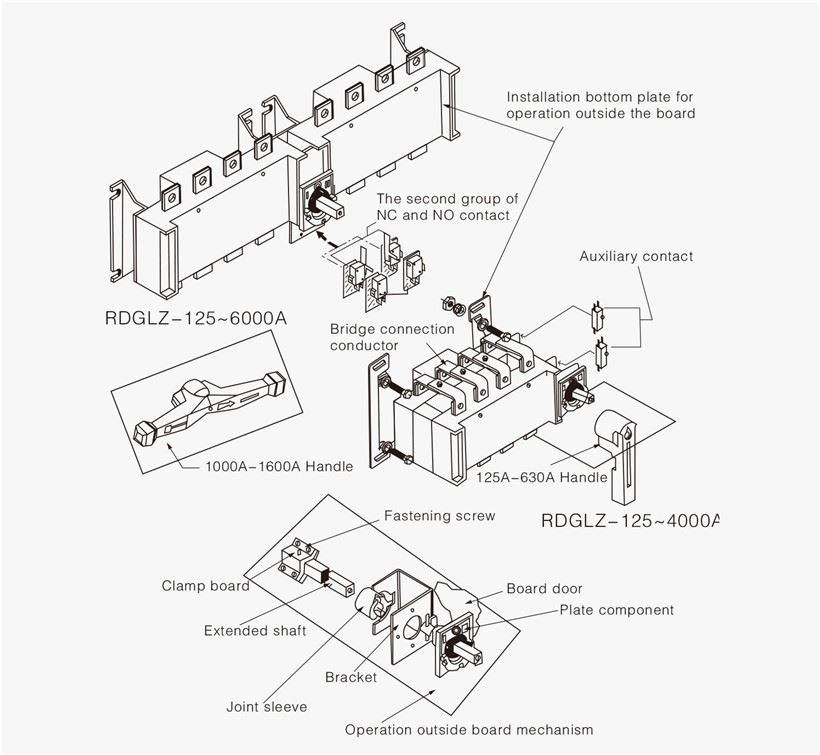

| RDGLZ-125-3150A Changeover Load Isolation Switch ● RDGLZ-125-3150A is applied to changeover two groups of low voltage electric circuit or two groups of load devices or safety isolation. ● Mode of operation: Direct operation: handle is installed on the switch Operation outside: handle is installed outside the door of power distribution board. ● The 160 Amp Manual Changeover Switches with observation window can be provided according to the demand to observe directly the on and off state of contact. ● It have three poles and four poles (three poles + on and off neutral pole) ● Two groups of auxiliary contacts can be assembled. ● Extended shaft is used for the operation outside the board. ● Mechanical performance and electrical performance of the 160 Amp Manual Changeover Switches are correspond to RDGL-125A- 3150A property. ● The bridge connecting conductor can provided to connect the inlet or outlet terminals of the switch. Note: The bridge connection is chosen, and it need to indicate the inlet or outlet connection with it. |
RDGL Series
Load Isolator Switch
Its spring energy storage instantaneous release mechanism can speed up the rapid on-off (138m/s), which has nothing to do with the operating speed of the handle, which greatly improves the arc extinguishing ability. BMC shell has excellent flame retardant, dielectric, carbon resistance and impact resistance. It also has parallel double break contacts with self-cleaning function. All of its contact materials are silver plated copper with two break contacts. Its isolation distance is large. Frame current: 63A to 3150A.
RDGLC Series (Side Operation)
160A-1600A side operation load isolator switch with window
RDGLZ Series (Changeover)
Manual changeover switch 125A-3150A
RDGLR Series
Fuse disconnector switch
