200A Generator Manual Transfer Switches

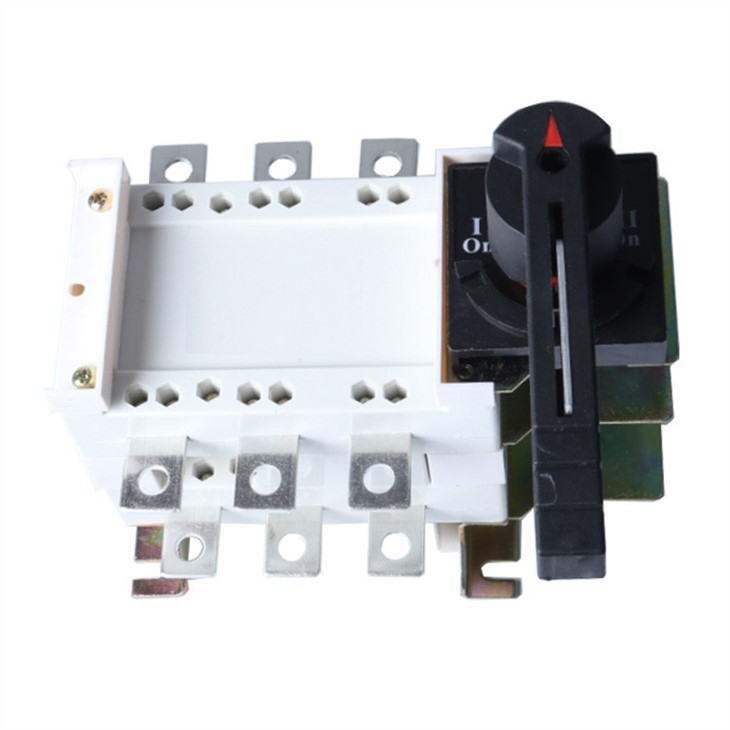

RDGLZ-125-3150A Changeover Load Isolation Switch

● RDGLZ-125-3150A is applied to changeover two groups of low voltage electric circuit or two groups of load devices or safety isolation.

● Mode of operation:

Direct operation: handle is installed on the switch

Operation outside: handle is installed outside the door of power distribution board.

● The 200A Generator Manual Transfer Switches with observation window can be provided according to the demand to observe directly the on and off state of contact.

● It have three poles and four poles (three poles + on and off neutral pole)

● Two groups of auxiliary contacts can be assembled.

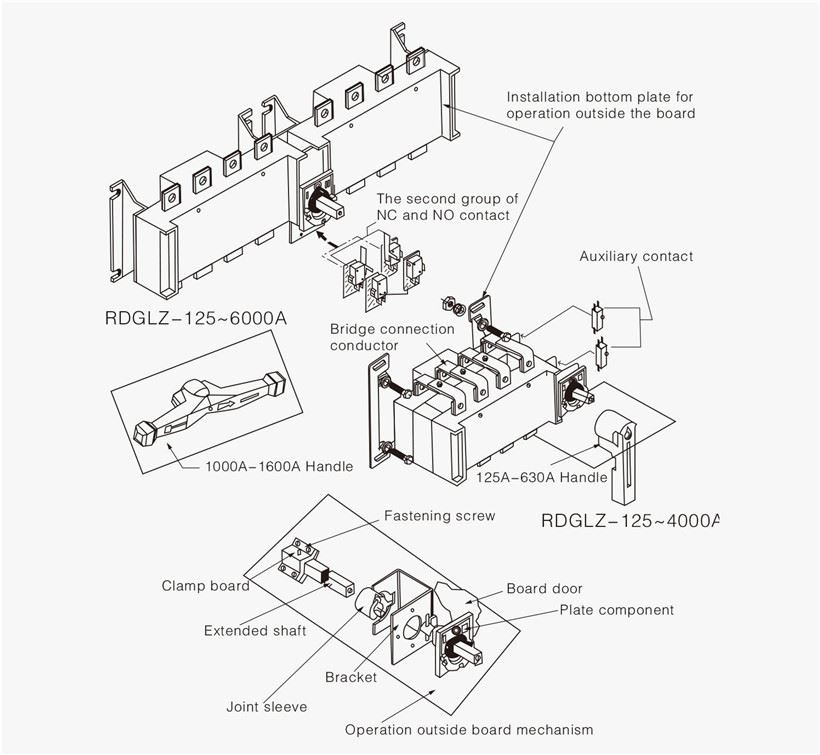

● Extended shaft is used for the operation outside the board.

● Mechanical performance and electrical performance are correspond to RDGL-125A- 3150A property.

● The bridge connecting conductor can provided to connect the inlet or outlet terminals of the switch.

Note: The bridge connection is chosen, and it need to indicate the inlet or outlet connection with it.
