RDS2 automatic transfer switches, available from 125A to 3200A. New generation of transfer switches, with built-in intelligent controller and user-friendly copper terminals design. Compact in size and elegant in outlook.
| Quantity: | |
|---|---|

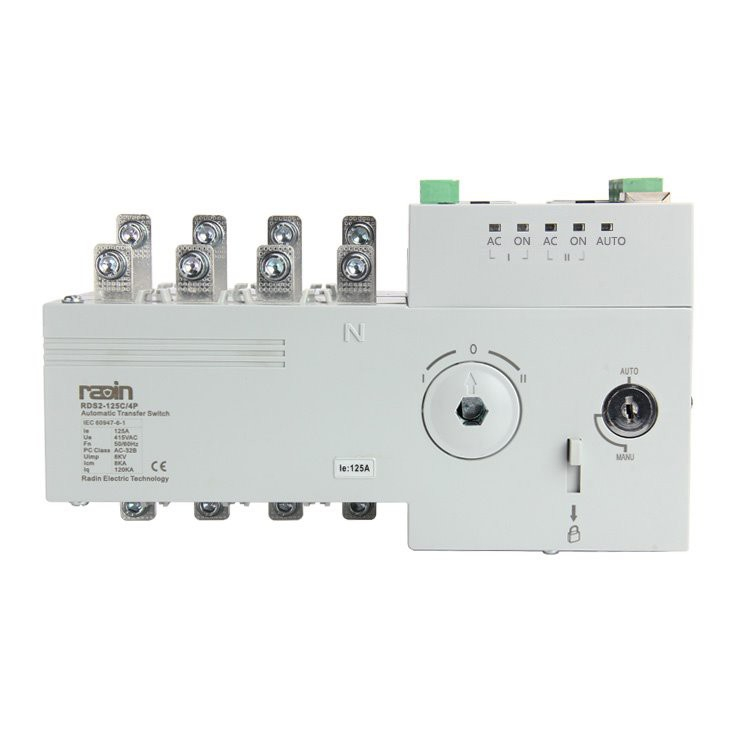

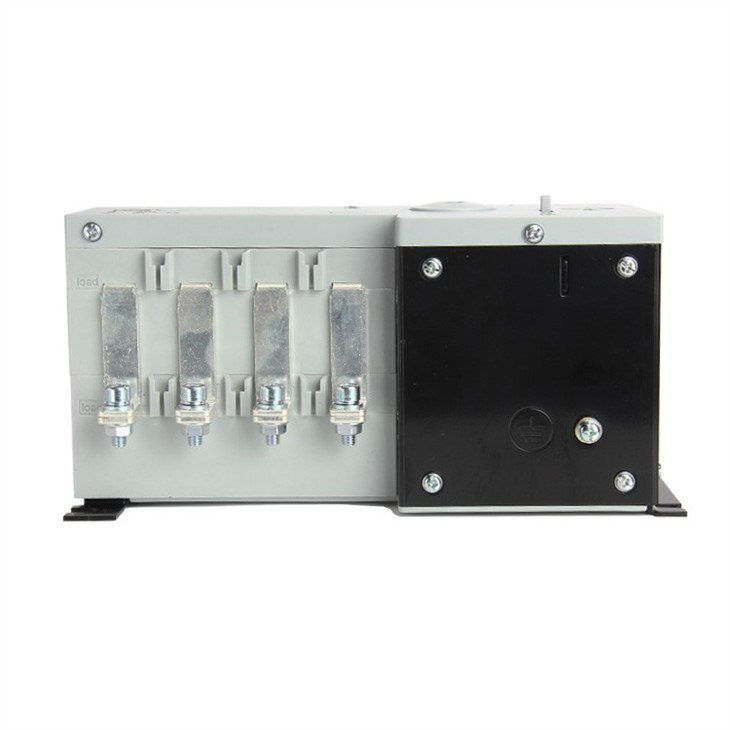

RDS2-125 ATS Panel Auto Transfer Switch 100 Amp Automatic Transfer Switches
RDS2 automatic transfer switch series has 10 sizes, which are 125A, 160A, 250A, 630A, 1000A, 1250A, 1600A, 2000A, 2500A and 3200A. Design and developed the ATS by our own R&D team, radin's ATS is featured with elegant outlook and distinguished design. New moulds ATS has built-in B/E/F/G control modules (optional), available from 125A to 1600A.
RDS2-125 Innovations at Connection Terminals:

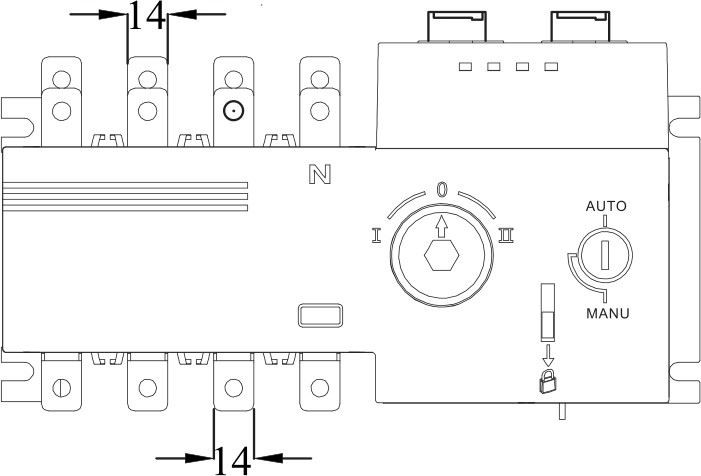

1) RDS2-100A increased to 125A by enlarging the terminal copper bars’ width to 14mm.

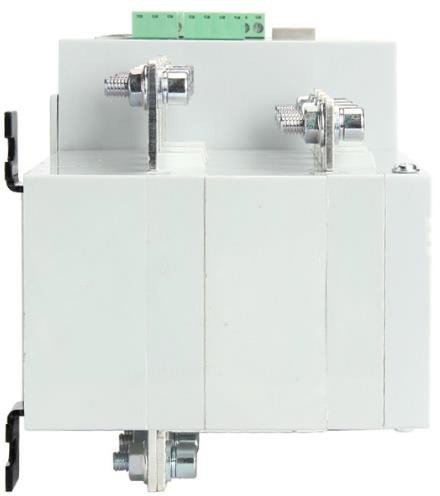

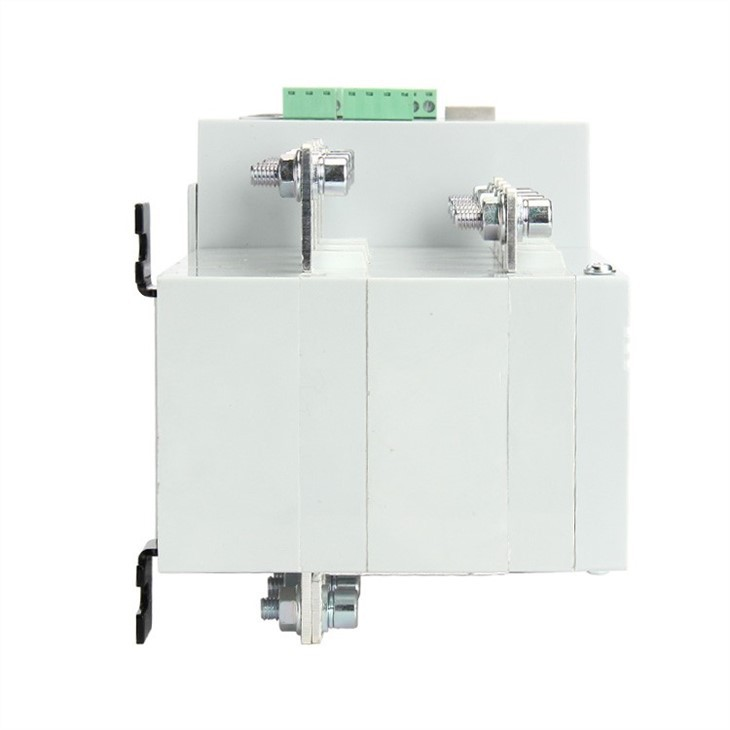

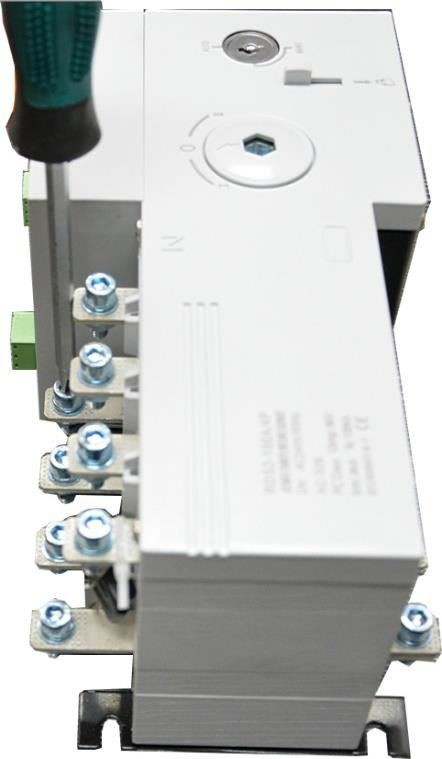

2) Optimized I and II source input terminal copper bars, extend the II source copper bar for easier installation, screw driver can connect with II power easily without blocking by I power copper bar.

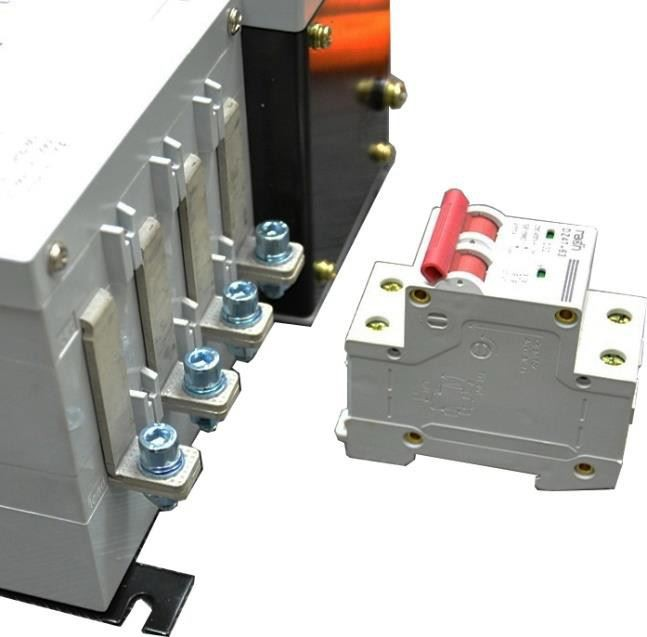

3) Lower down the output terminal copper bars (load side), easier connecting to load device like MCB.

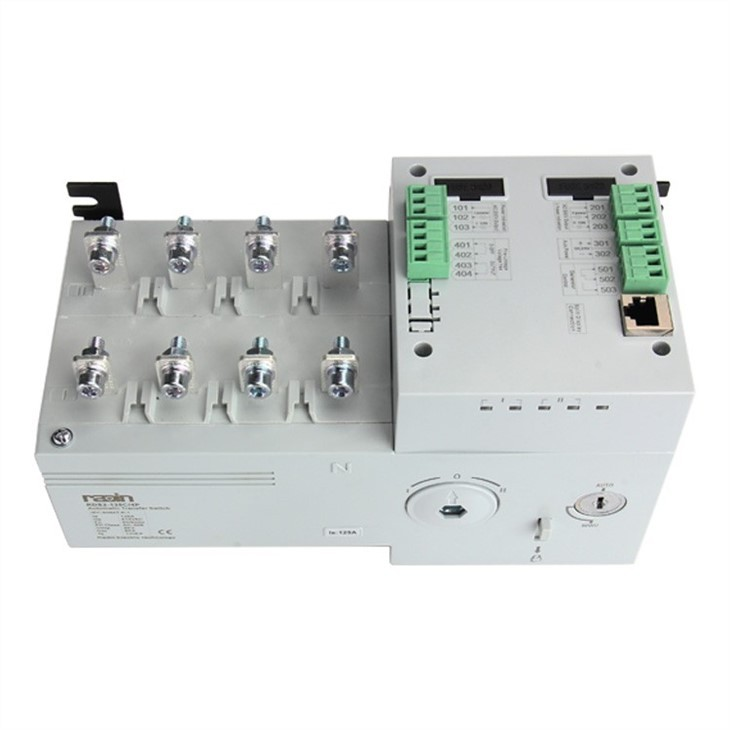

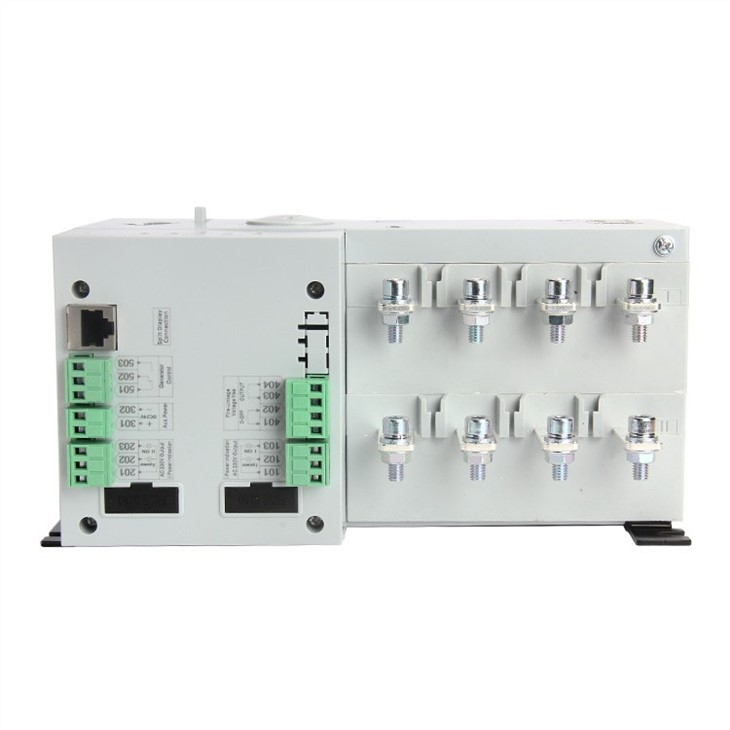

4) 2 input 1 output copper bar design, simplify wiring.
5) Built-in LED indicators for I/II power running status, no need external LED indicators.
![L23~T}LO~]F9`JDN`H49{7W](http://ikrorwxhkprqll5p-static.micyjz.com/cloud/lrBpiKlrloSRilrnqpiqkq/202103231514084f55b0d33c3a4d3ca8a16fcd42fae611.png)
100 Amp Automatic Transfer Switches has compact size, user-riendly installation, saving space.
10Ie making and breaking capacity, AC-33B utilization category;
With built-in intelligent controller, programmable over/under voltage protection, over/under frequency protection, adjustable transfer delay timer, adjustable center delay timer, build-in engine exerciser, fault transfer to "0" position is optional;

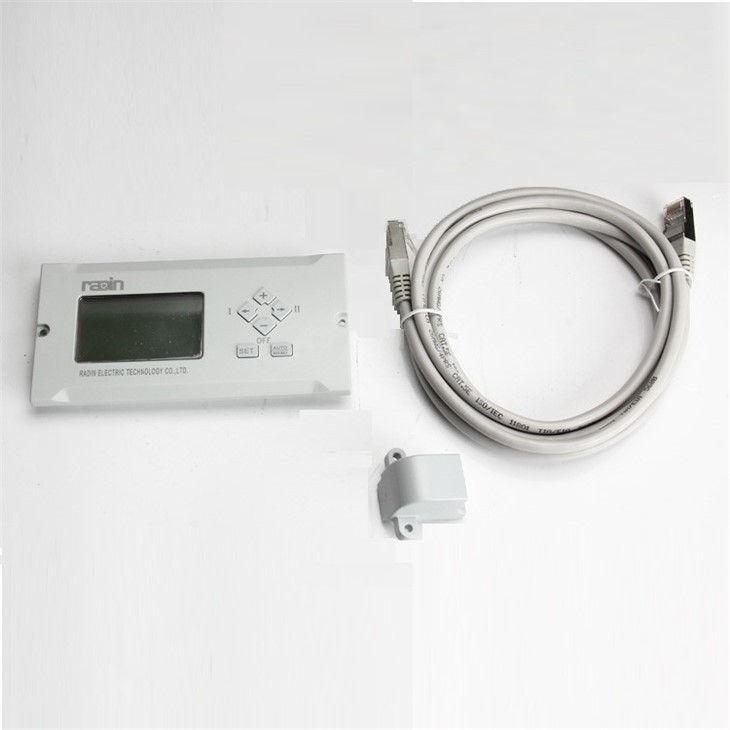

Seperable LCD display, meet different installation requests;
Frame current: 80A,125A, 250A, 630A
