RDS2 automatic transfer switch series has 125A, 160A, 250A, 630A, 1000A, 1250A, 1600A, 2000A, 2500A and 3200A. Design and developed by our own R&D team, radin’s ATS is featured with elegant outlook and distinguished design.
| Quantity: | |
|---|---|

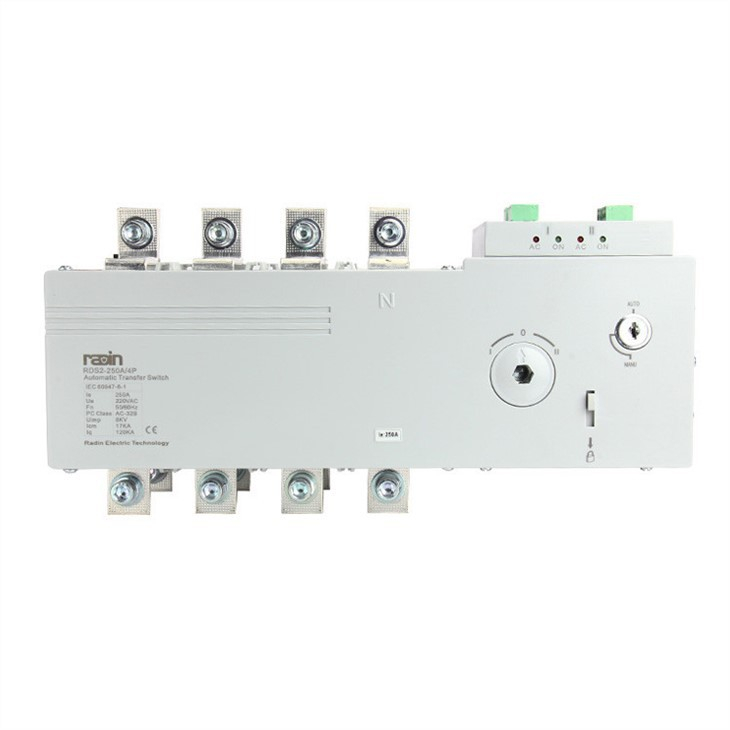

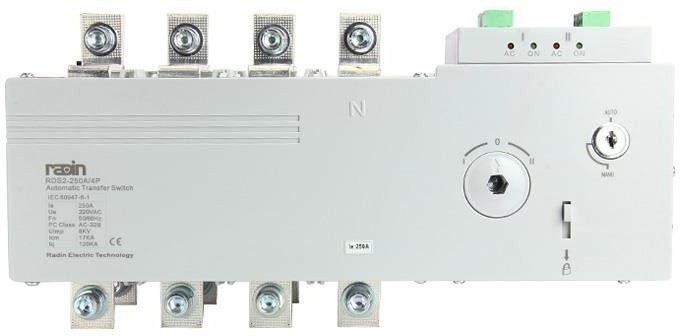

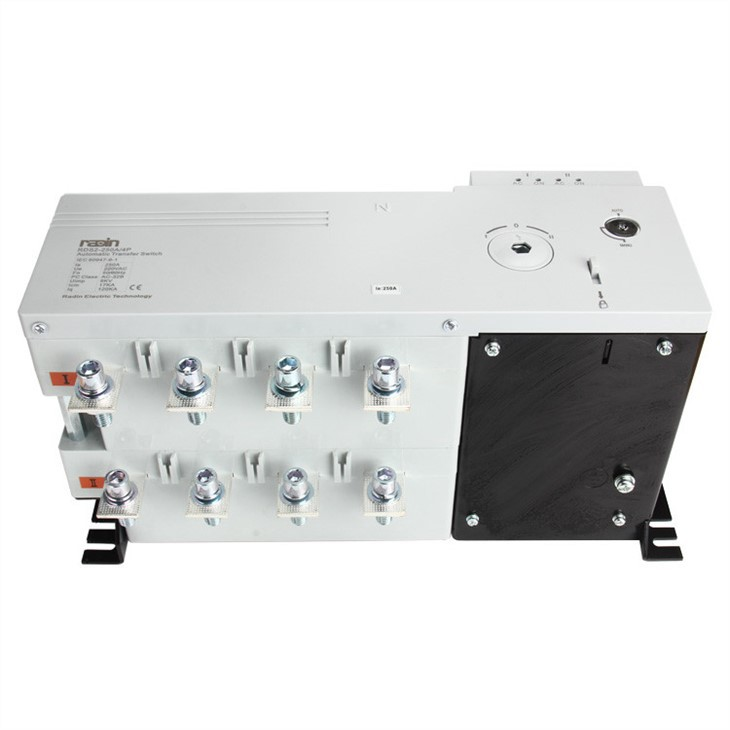

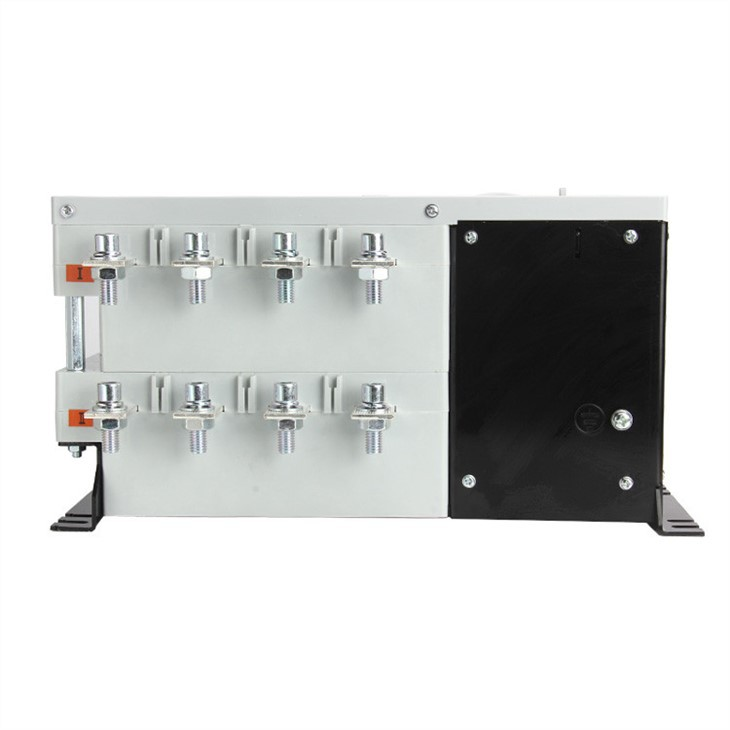

RDS2-250 Generator transfer switch ATS switch Automatic Transfer Switches
RDS2 automatic transfer switch series has 125A, 160A, 250A, 630A, 1000A, 1250A, 1600A, 2000A, 2500A and 3200A. Design and developed by our own R&D team, radin’s ATS is featured with elegant outlook and distinguished design.

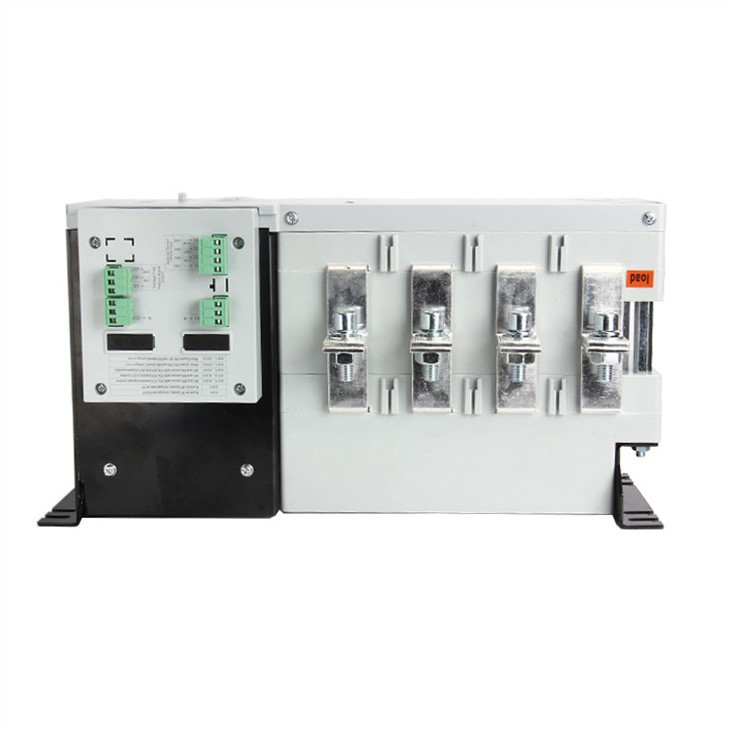

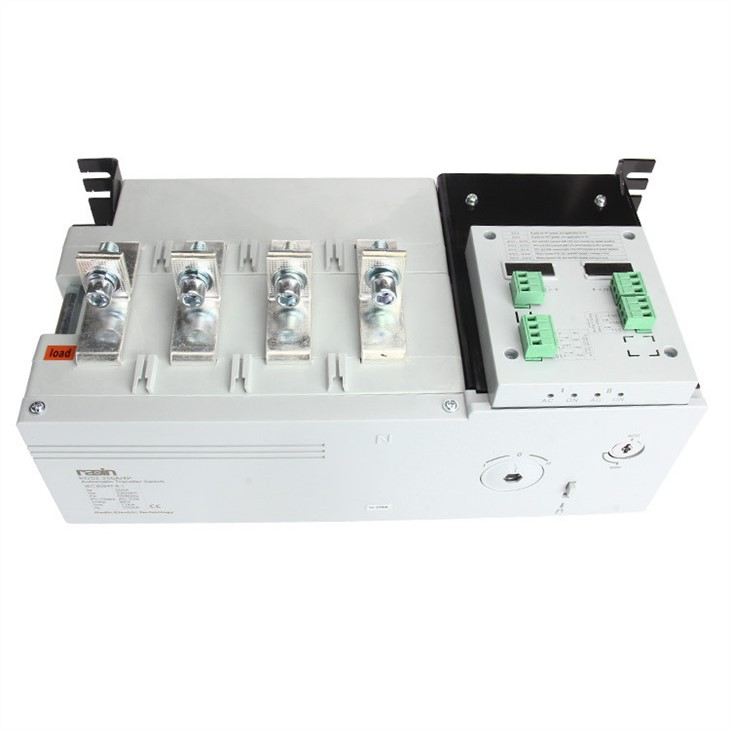

Overview: RDS2 load copper terminals are 2 in 1, user-friendly wiring; When 401-404 control terminals are connected, can force transfer to "O" position in fire-fighting emergency; AC-32B Utilization category per IEC60947-6-1.
RDS2 Series
RDS2-100 - 1600A Auto Transfer Switch

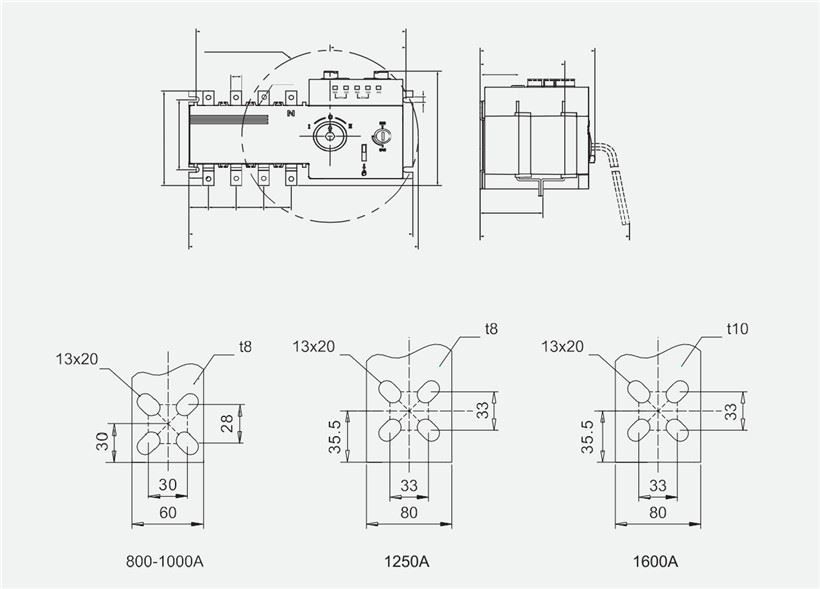

RDS2 100-1600 outline and mounting size
Frame | Outline Dimension (mm) | Install Dimension (mm) | |||||||||||||||
In | A | A1 | B | B1 | C | E | J | K | L | N | P | R | V | ФX | Y | Y1 | Y2 |
100A | 330 | 244 | 135 | 115 | 165 | 125 | 228 | 85 | 6.5 | 83 | 30 | 12 | 21 | 6.5 | 41.5 | 91.5 | 66.5 |
160A | 374 | 301 | 175 | 140 | 200 | 150 | 285 | 102 | 7 | 94 | 36 | 20 | 31 | 8.5 | 55.5 | 125.5 | 92.5 |
250A | 436 | 373 | 200 | 178 | 250 | 198 | 344 | 108 | 6.5 | 99 | 50 | 24 | 37 | 11 | 72 | 157 | 116 |
630A | 502 | 433 | 265 | 260 | 295 | 244 | 416 | 180 | 9 | 101 | 65 | 40 | 47.5 | 12 | 83 | 193 | 140 |
1600A | 1050 | 636 | 345 | 337 | 373 | 320 | 612 | 220 | 11 | 83.5 | 120 | 80 | 71 | 13 | 109 | 241 | 108 |
Generator Transfer Switches are compact, easy to install, space saving.
It adopts modular design, which is easy to replace operating unit, transmission mechanism, control circuit;
Mechanical interlock use gear transmission, from the design avoiding two MCB closing at the same time;
Controller power supply and power source sampling power separate from SCM control system, from hardware design to overcome the EMI.
Reliable mechanical interlock device and electrical interlock protection, avoid two MCCB closing at the same time; Controller power supply and power source sampling power separate from SCM control system, from the hardware design to overcome the EMI;

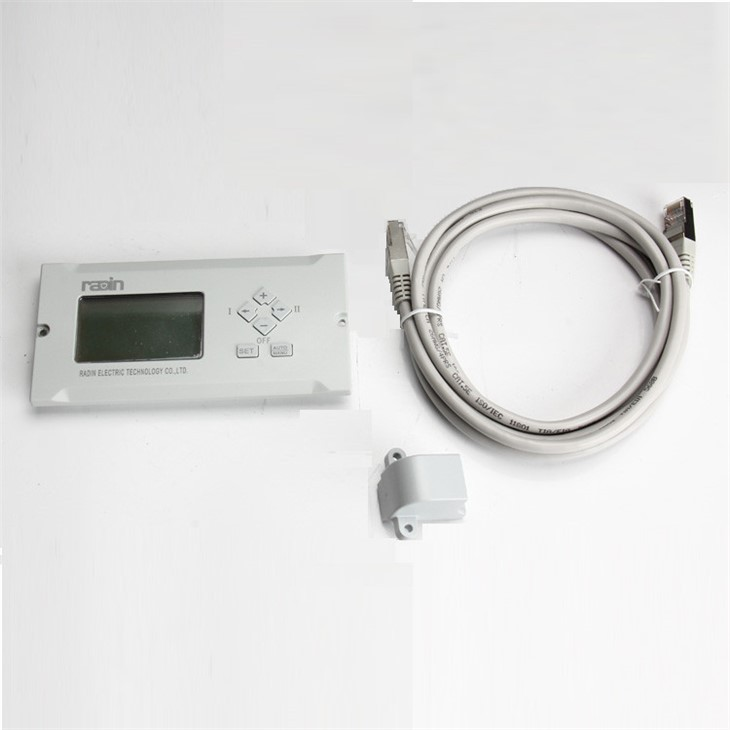

Controller is removable and can be mounted at door, Frame current: 63A, 125A, 250A, 400A, 630A, 800A, 1250A.
