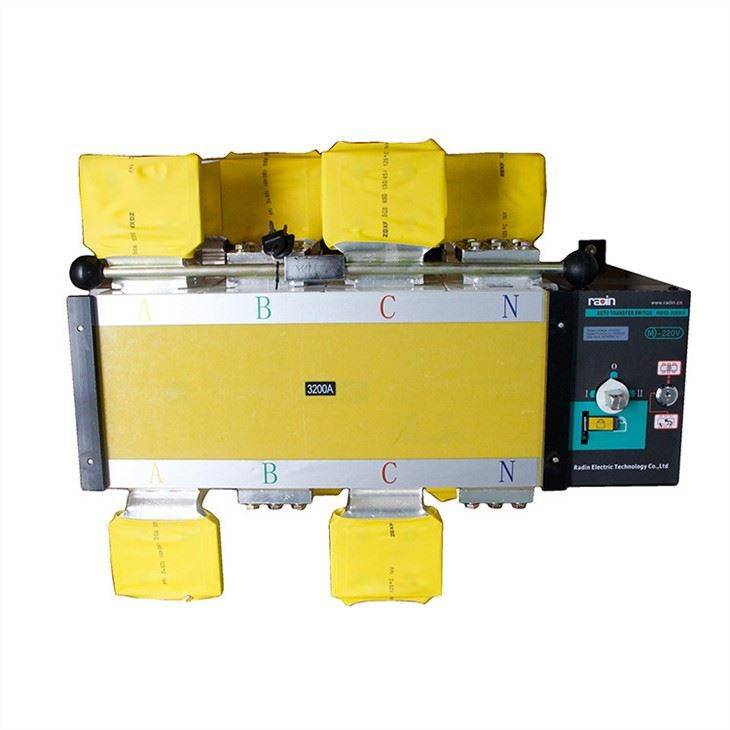

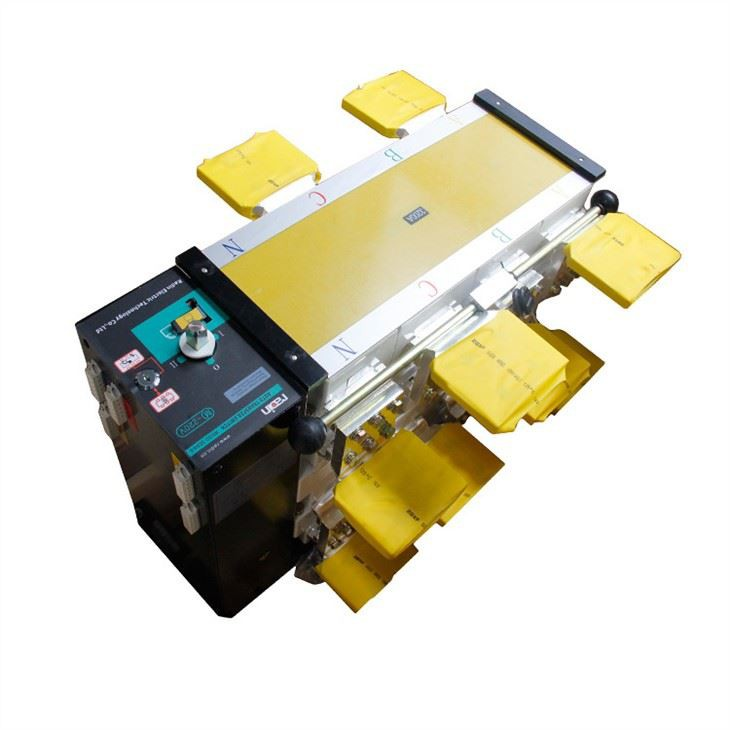

RDS2-3200 Fire Pump Transfer Switch 3200 amp Automatic Transfer Switches

RDS2 automatic transfer switch series has 10 sizes, which are 125A, 160A, 250A, 630A, 1000A, 1250A, 1600A, 2000A, 2500A and 3200A. We design and developed the ATS by our own R&D team, radin’s ATS is featured with elegant outlook and distinguished design. The new ATS moulds has built-in B/E/F/G control modules (optional), available from 125A to 1600A. 2000A – 3200A is another mold as pictures shows below, it has auto transfer logic and can work with external controllers like Deepsea, ComAp and Smartgen.

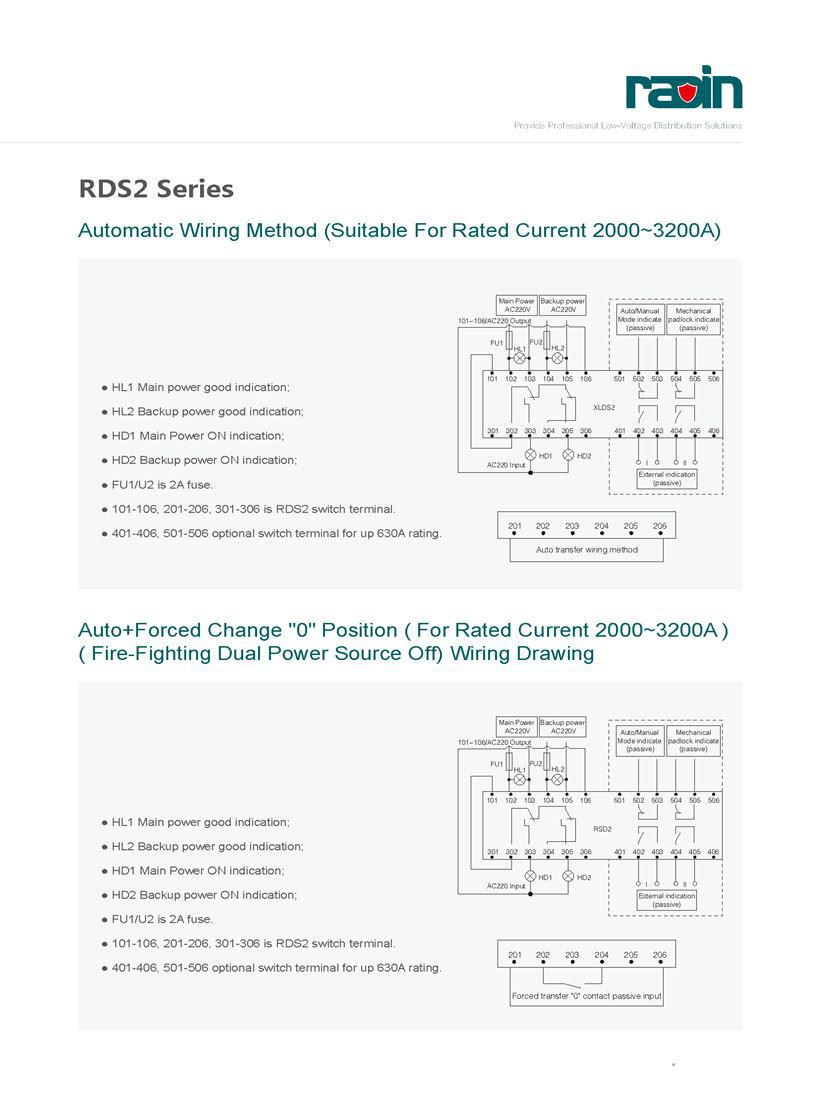

Note: Terminals design was changed to 2 input 1 output, user-friendly wiring.

New RDS2 automatic transfer switch features compare to it’s last generation.

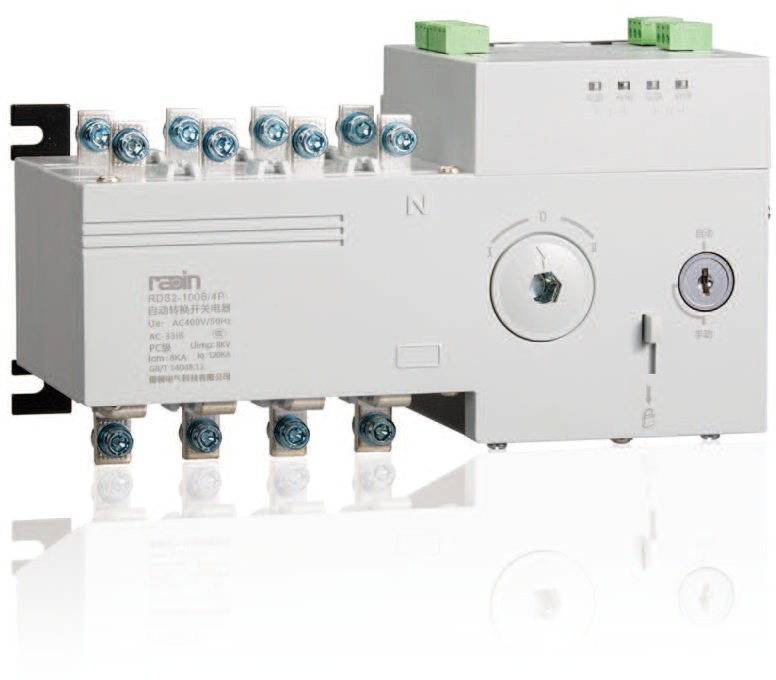

RDS2 Series

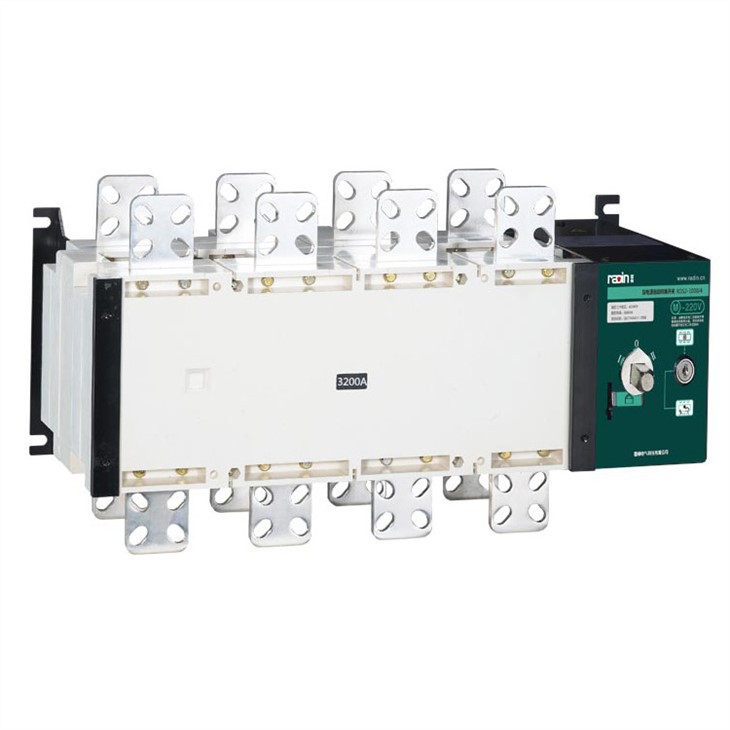

RDS2-2000-3200A Outline And Installation Size

Smaller size, easy installation, space saving

Adopt modular design, operating unit, transmission mechanism , control circuit fully independent, easy for replacement;

Mechanical interlock device use gear transmission, avoid two MCB close at same time; Controller power supply and power source sampling power separate from SCM control system, from the hardware design to overcome the EMI.

Reliable mechanical interlock device and electrical interlock protection, avoid two MCCB close at same time; Controller power supply and power source sampling power separate from SCM control system, from the hardware design to overcome the EMI;

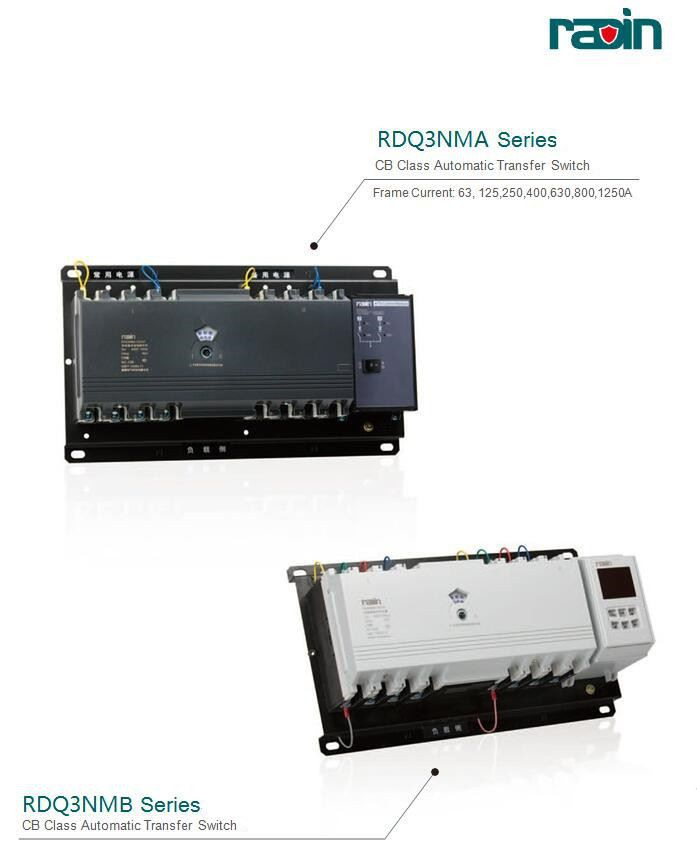

Controller display panel removable can be separately install, to match different installation requirement; Frame current: 63, 125, 250, 400, 630, 800, 1250A

RDS2 Series

PC Class Automatic Transfer Switch

Adopt two input one output design, easy for wiring;

With "0" position technology, can be forced to "0" position under emergency situation to match the fire-linkage requirement;

Optional multifunction intelligent controller with programmable high/low voltage protection high/low frequency protection, adjustable transfer time delay, adjustable center delay time build-in engine exerciser, fault transfer to "0" function is optional;

Optional separate LCD display, optional Rs485 communication function;

Optional functions: Center delay, fault to "0" position, Engine exerciser, Current limit etc Frame current: 125, 160, 250, 630, 1600, 2000, 3200A

RDS3 Series

PC Class Automatic Transfer Switch

Smaller Size, easy installation, space saving;

10Ie making and breaking capacity, reach AC-33B utilization category; With multifunction intelligent controller, programmable high/low voltage protection, high/low frequency protection, adjustable transfer delay time, adjustable center delay time, build-in engine exerciser, fault transfer to "0" function is optional;

Removable LCD display, to match different installation requirement; Frame current: 125A, 250A, 630A.
