In a fire emergency, every second counts. The sprinkler system is the first line of defense, and its effectiveness depends entirely on water pressure. The fire pump provides that pressure, but the pump itself relies on one critical component: the motor starter. This device is the single point of failure between a power source and life-saving water delivery. Unlike industrial starters designed to protect expensive motors, fire pump starters operate under a completely different mandate. They are engineered to keep the motor running at all costs, even if it leads to self-destruction. This guide provides a clear technical framework for selecting a Motor starter that meets the stringent requirements of NFPA 20 and NEC 695, balancing electrical constraints with the absolute need for reliability.
Reliability Over Protection: Fire pump starters prioritize "fail-to-run" over equipment preservation.
Starting Method Impact: The choice between Star-Delta, Soft Start, or DOL (Direct-On-Line) depends heavily on your facility's power grid and generator capacity.
Compliance is Non-Negotiable: Starters must include an emergency mechanical run handle and be capable of handling locked-rotor current indefinitely.
Future-Proofing: Intelligent and multi-function starters reduce footprint by integrating control for both pumps and smoke-spill fans.
The core principle governing fire pump motor starters is fundamentally different from that of any other industrial motor control. A standard starter's primary job is to protect the motor from electrical faults like overloads and overheating. It uses thermal overload relays to trip the circuit and shut down the motor if it draws too much current for too long. This saves the motor from expensive damage. In a fire, however, a damaged motor is an acceptable loss; a failed sprinkler system is not.
A fire-rated starter flips this logic on its head. Its design philosophy is "run to destruction." The goal is not motor preservation but uninterrupted operation during an emergency. Instead of delicate overload protection, fire pump starters are built for overcurrent handling. They must withstand the extreme electrical stress of a struggling motor without shutting down.
Standard Starters: Prioritize motor protection. They will trip on thermal overload to prevent winding burnout.
Fire-Rated Starters: Prioritize operation. They deliberately omit thermal overload relays to ensure the pump runs no matter the condition, until the fire is extinguished or the motor burns out.
This "run to destruction" mandate is codified in standards like the National Electrical Code (NEC), specifically Article 695. A critical requirement is that the overcurrent protection device (typically a circuit breaker) must be sized to carry the motor's locked-rotor current (LRC) indefinitely. Locked-rotor current is the massive surge of amperage a motor draws when it is stalled or trying to start—often 600% or more of its normal running current. While a standard breaker would trip instantly under these conditions, a fire pump breaker is selected and set to hold on, ensuring power is never cut to the motor during a critical moment.
To guarantee operation even in the event of a complete controller failure, NFPA 20 requires a manual override. This "emergency run mechanical control" is a physical latch or handle on the starter. Activating it bypasses all electronic circuits, relays, and logic boards. It mechanically forces the main power contactors to close, connecting the motor directly to the power source. This ensures the pump can be started even if the starter's entire control system is compromised by heat, water, or electronic failure. It is the ultimate failsafe, embodying the principle that the pump must run, no matter what.
The method used to start the fire pump motor has a profound impact on the building's electrical infrastructure, particularly the emergency generator. The primary trade-off is between the simplicity of full-voltage starting and the reduced electrical stress of soft-starting methods. Each has its place, and the right choice depends on your site's power capacity.
Direct-On-Line (DOL) starting is the simplest, most robust method. It connects the motor directly to the full line voltage. While reliable, this approach creates a massive inrush current (often 6-8 times the motor's full load amps) and significant mechanical shock to the pump and piping. DOL is best suited for smaller motors or facilities with a very stiff power grid or an oversized generator that can absorb the surge without a critical voltage drop.
A classic reduced-voltage starting method, the Star-delta motor starter works by first connecting the motor windings in a "star" (or wye) configuration. This reduces the starting voltage and current to approximately 33% of a DOL start. After a preset time, the starter transitions the windings to a "delta" configuration for normal full-voltage operation.
Pros: Significantly reduces starting current, lessening the load on generators and the utility grid.
Cons: The transition from star to delta can cause a momentary current and torque spike, especially in open-transition models. This can still stress mechanical components.
Modern solid-state soft starters use silicon-controlled rectifiers (SCRs) to gradually ramp up the voltage supplied to the motor. This provides a smooth, stepless acceleration.
Pros: Offers the smoothest start, eliminating the water hammer effect in piping and minimizing mechanical wear. It provides excellent control over starting current.
Cons: They are more expensive and complex than traditional starters. For NFPA compliance, they must include a bypass contactor that engages once the motor is at full speed, ensuring the solid-state electronics are not a point of failure during extended run times.

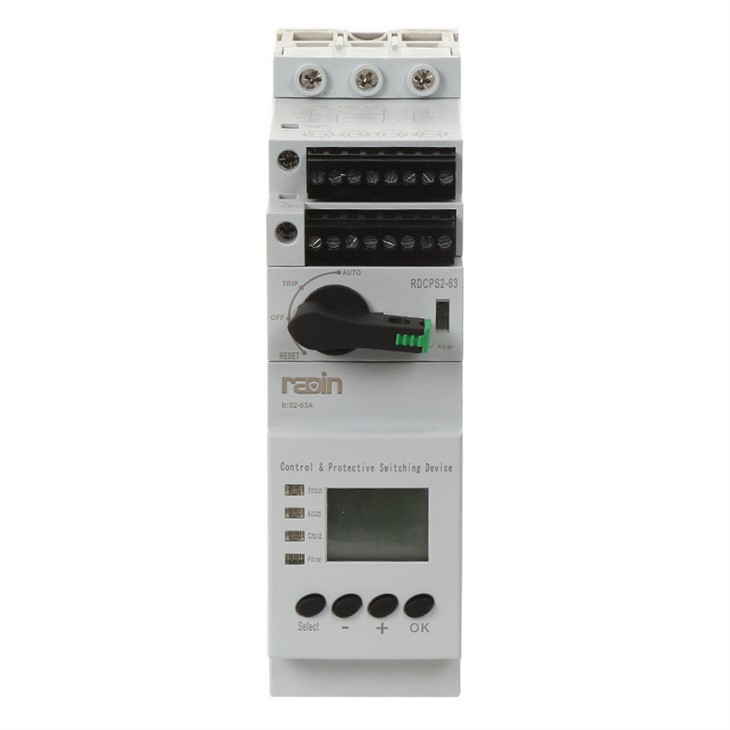

The latest evolution in motor control involves digital, microprocessor-based units. An Intelligent Motor starter integrates control, diagnostics, and communication into a single package. These advanced systems provide real-time monitoring of voltage, current, and phase balance. They can communicate directly with a Building Management System (BMS) via protocols like Modbus or BACnet, offering remote status updates and fault logging. An All in one motor starter can further simplify system design by consolidating multiple functions into one device.
| Feature | Across-the-Line (DOL) | Star-Delta | Soft Starter |
|---|---|---|---|
| Inrush Current | Very High (600%+) | Reduced (~33% of DOL) | Adjustable / Lowest |
| Mechanical Stress | High | Medium (transition spike) | Very Low |
| Complexity | Low | Medium | High |
| Upfront Cost | Low | Medium | High |
| Best Use Case | Small motors, robust power grid | Medium motors, moderate power constraints | Large motors, sensitive grids, preventing water hammer |
Selecting the right starter goes beyond comparing methods. You must analyze its impact on your entire emergency power system and building infrastructure. Poor planning here can lead to oversized generators, failed starts, or non-compliance.
The single biggest factor influenced by your choice of Motor Starter for Pumps is the required size of the emergency standby generator. A DOL starter's massive inrush current demands a much larger (and more expensive) generator to handle the surge without an excessive voltage dip that could stall the motor or affect other life-safety loads. A soft starter, by limiting the inrush current, may allow for a significantly smaller generator, potentially offsetting its higher upfront cost.
As mandated by NEC 695, the starter, its disconnecting means, and all associated wiring must be able to handle the thermal and magnetic stress of the motor's locked-rotor current indefinitely. This is not a theoretical exercise. If debris enters the pump and jams the impeller, the motor will stall but continue to draw LRC. The entire circuit must be robust enough to withstand this worst-case scenario without tripping a breaker or melting a component, ensuring power remains available if the obstruction clears.
In modern high-rise buildings, fire safety involves more than just water. Smoke extraction systems are equally critical. A Multi-function motor starter platform can simplify design and maintenance by providing a unified control solution. Evaluating the need for a single system that can act as both a pump starter and a motor starter for fans control can reduce the panel footprint, streamline wiring, and simplify spare parts inventory. This integrated approach is especially valuable in complex life-safety systems.
The power feeders running to the fire pump starter must be fire-rated, often requiring long, heavy cables. Over these long distances, voltage drop becomes a significant concern. Ohm's law dictates that voltage will drop as current flows through the resistance of the cable. During the high-current starting phase, this drop can be severe. If the voltage at the motor terminals falls too low, the motor may not produce enough torque to start the pump, especially against a full column of water. You must calculate the voltage drop under locked-rotor conditions to ensure the cable gauge is sufficient to deliver adequate starting torque.
Choosing the right starter is only half the battle. Proper installation, wiring, and system design are crucial for ensuring the reliable operation demanded by fire codes. Overlooking these practical details can compromise the entire system.
The electrical feeders that supply the fire pump must survive the very fire they are meant to fight. Codes mandate that these circuits have a 2-hour fire resistance rating. This is typically achieved in one of two ways:
Concrete Encasement: The electrical conduits are encased in at least 2 inches of concrete.
Fire-Resistive Cables: Using specialized cables like Mineral-Insulated (MI) cable that are inherently fire-resistant.
This protection must extend from the power source all the way to the fire pump controller's terminals, ensuring the integrity of the power supply during a prolonged fire event.
Fire sprinkler systems are designed to be pressurized at all times. Minor leaks in the vast network of pipes can cause this pressure to slowly drop. To prevent the massive main fire pump from constantly cycling on and off to compensate for these small leaks (a "nuisance start"), a much smaller pressure-maintenance pump, or "jockey pump," is installed. This pump has its own separate, smaller motor starter. It is calibrated to activate at a slightly higher pressure point than the main pump, efficiently handling minor leaks and preserving the main pump for true emergencies.
Not all fire pumps are in buildings. Skid-mounted or vehicle-based systems for industrial or wildland firefighting have unique requirements. The motor starter must be designed for high-vibration environments. Control power is often supplied by a DC source, such as the vehicle's 24V battery system, requiring different control circuit components. Connectors and wiring must be secured to withstand the rigors of transport over uneven terrain.
Even with perfect design, errors during installation and commissioning can create hidden points of failure. Common pitfalls include:
Incorrect Timer Settings: Setting the transition timer on a Star-Delta starter too short or too long can cause excessive current spikes or a stalled start.
Inadequate Ventilation: Soft starters generate significant heat from their SCRs. If the starter enclosure is not properly ventilated, the electronics can overheat and fail prematurely.
Improper Phase Rotation: Connecting the power phases in the wrong order will cause the pump to spin backward, producing no pressure. This must be verified during initial testing.
The reliability of your fire pump system is directly tied to the quality of its components and the support behind them. Choosing the right Motor starter manufacturer is a critical decision that impacts long-term safety and cost.
Compliance is not optional. The primary credentials to look for are:
UL 218: This is the Underwriters Laboratories standard specifically for Fire Pump Controllers.
FM Global Approval: Factory Mutual provides another widely respected third-party certification for fire protection equipment.
A manufacturer whose products carry these listings has undergone rigorous testing to ensure their starters meet the demanding performance and reliability standards required for life-safety applications.
A fire pump is a long-term asset that requires regular testing and maintenance, including annual flow tests. When issues arise, you need fast, competent support. Evaluate a manufacturer's local presence. Do they have technical support staff and a ready supply of spare parts in your region? Waiting for a replacement component to be shipped from overseas is not an option when a life-safety system is down.
It's easy to focus on the upfront purchase price of the starter, but this is a misleading metric. You must consider the Total Cost of Ownership. A cheap DOL starter might seem attractive, but if it forces you to buy a much larger and more expensive emergency generator, the total project cost will be higher. A more expensive soft starter could lead to overall savings by allowing for a smaller generator and less robust wiring. Analyze the full system cost, not just the starter's price tag.
Modern facilities rely on integrated systems for monitoring and control. Does the motor starter manufacturer provide seamless integration with Building Management Systems? Look for native support for open protocols like Modbus or BACnet. This simplifies remote monitoring of the pump's status ("Ready," "Running," "Fault"), which is a key component of modern property management and safety protocols.
Choosing a fire-fighting pump motor starter is a decision with zero margin for error. The selection process must be driven by an unwavering commitment to reliability and full compliance with life-safety codes. Your final choice should not be based on cost alone, but on a holistic analysis of your facility's power infrastructure. Prioritize starting methods that align with your site’s electrical stiffness, whether that is a robust DOL starter for a small pump on a strong grid or a sophisticated soft starter to protect a sensitive generator. Always ensure your chosen solution is fully compliant with NFPA 20 and NEC 695. The next logical step is to conduct a thorough power system study to determine the maximum allowable inrush current, which will definitively guide your selection between a Star-Delta, Soft Starter, or DOL configuration and ensure your system performs flawlessly when it matters most.
A: No. A standard Variable Frequency Drive (VFD) cannot be used unless it is specifically UL-listed for fire pump service. These special-purpose VFDs are required to have an integrated, fully-rated bypass contactor that allows the motor to run directly from the line in case of VFD failure, ensuring operational redundancy.
A: In an open transition starter, the motor is momentarily disconnected from the power source during the switch from the star to the delta winding configuration. This can cause a significant electrical and mechanical shock. A closed transition starter uses an extra contactor and resistors to keep the motor connected to power during the transition, resulting in a much smoother and less disruptive switchover.
A: This is intentional and a critical safety feature. A thermal overload relay is designed to protect the motor from heat damage by shutting it off. For a fire pump, the priority is to keep water flowing, not to protect the motor. The starter is designed to let the motor run to destruction if necessary to fight the fire.
A: No, provided they are designed and listed for fire pump service. While they contain complex electronics, compliant models must include the mandatory emergency run mechanical handle. This handle completely bypasses all digital logic, providing a robust mechanical failsafe that guarantees the motor can be started even if the entire electronic control board fails.
