In industrial water management, pump motor failure isn't just an inconvenience; it's a primary cause of significant operational downtime and costly emergency repairs. While catastrophic failures are obvious, the real threats are often the "silent killers" that degrade pump health long before any visible signs of distress appear. Conditions like dry running, sustained overload, and phase loss quietly chip away at motor insulation, bearings, and seals, leading to premature and often unexpected breakdowns. This guide provides a technical deep-dive into these common failure modes. We will explore how to evaluate and implement robust protection strategies using modern Motor starter technology, moving beyond basic protection to ensure long-term reliability for your critical pumping infrastructure.
Dry-Run Detection: Shaft power monitoring is more reliable than current-only sensing for detecting "under-load" conditions.
Standard Compliance: Adhering to NEMA (90% voltage limits) and NEC (125% current settings) prevents nuisance tripping.
Technology Shift: Transitioning from basic contactors to intelligent motor starters reduces TCO by integrating multiple protection relays into one unit.
Phase Protection: Immediate shutdown during phase loss is non-negotiable to prevent rapid winding temperature spikes.
Protecting a water pump motor involves understanding threats that go far beyond a simple jammed impeller. Standard overload relays are designed for obvious faults, but the most common causes of failure are often slow-burning, subtle issues that conventional protection misses. To truly secure a motor's longevity, you must account for the specific physics of its application environment.
Motor overload is more than just a mechanical jam. In the world of water pumps, especially submersible types, overload often builds up gradually. Consider these "invisible" sources:
Silt and Debris Buildup: Over time, submersible pumps operating in wells or sumps can accumulate silt, sand, or other solids. This buildup increases the hydraulic load, forcing the motor to work harder to move the same volume of fluid. The current draw creeps up slowly, often staying just below the trip point of a basic relay until significant damage is already done.
-
As pump bearings wear, friction increases. This adds a consistent mechanical load that translates directly into higher electrical demand on the motor. It's a slow, degenerative process that a simple thermal overload might not distinguish from normal operational variance.
Dry running is one of the fastest and most destructive failure modes for a water pump. The pumped fluid serves two critical functions: lubrication and cooling. When it's absent, a catastrophic chain reaction begins almost instantly.
Without the cooling effect of water, mechanical seals can overheat and fail within seconds. In pumps with tight tolerances, like magnetic drive pumps, the impeller can physically melt onto the shaft, seizing the pump completely. This type of failure isn't just a repair; it often requires a full pump replacement.
For three-phase motors, a stable and balanced power supply is non-negotiable. When one phase is lost (single-phasing) or when voltages between phases are unequal, the consequences are severe. The motor attempts to compensate by drawing significantly more current through the remaining windings. This creates intense, localized overheating that rapidly degrades the motor's insulation.
Industry standards like IEC 60085 classify motor insulation by its thermal tolerance. Even a small voltage unbalance can raise winding temperatures beyond their class rating, effectively "cooking" the insulation and leading to a short circuit between windings. This is why immediate detection and shutdown during a phase loss event are crucial.
A basic thermal overload relay has a simple mechanism: it trips when a bimetallic strip gets too hot. However, it has a poor "memory" of previous heat events. If a motor undergoes several start-stop cycles in quick succession, residual heat builds up in the windings. A simple relay might have cooled down between cycles, but the motor core has not. A modern multi-function motor starter incorporates "thermal memory." It models the motor's heating and cooling curve, accounting for this "heat soak" to prevent a restart until the motor is truly at a safe temperature, preventing cumulative thermal damage.
Effective motor protection relies on monitoring the right electrical parameters. While current sensing is the most common method, it has significant blind spots, especially for pump applications. A comprehensive strategy evaluates current, voltage, and power to build a complete picture of motor health.
Current sensing is the foundation of motor protection. It's primarily used to detect overloads and short circuits. Devices like the Star-delta motor starter are excellent at managing the high inrush current during startup, reducing electrical and mechanical stress. The thermal overload relay within the starter then monitors the running current to protect against sustained overloads.
However, its major limitation is detecting under-load conditions, such as dry running. When a pump loses its fluid, the motor's workload decreases dramatically, and so does the current draw. A standard overload relay, looking only for high current, is completely blind to this dangerous condition.
Voltage monitoring protects the motor from the quality of the power supply. Key protections include:
Undervoltage Protection: According to NEMA standards, motors should operate within +/- 10% of their rated voltage. Running a motor on low voltage causes it to draw more current to produce the required torque, leading to overheating. A voltage monitor set to the NEMA 90% rule will trip the motor offline before damage occurs.
Phase Loss/Unbalance: As discussed, this is a critical protection that disconnects the motor instantly if a phase is lost or if the voltage between phases becomes dangerously imbalanced.
Phase Reversal: For many pump types, running in reverse can cause significant damage or inefficiency. Voltage protection in Motor Starter for Pumps can detect incorrect phase sequencing and prevent the motor from starting in the wrong direction.
For dry-run protection, monitoring shaft power is the gold standard. Power (measured in kW) is a function of both torque and speed. Unlike current, which can be non-linear at low loads, power provides a direct and sensitive measurement of the actual work the pump is performing. When a pump runs dry, its workload plummets, and the drop in power is immediate and distinct. An intelligent starter monitoring power can detect this sharp decrease and shut the motor down far more reliably than a device just looking at amperage.
Protection can be achieved through external sensors or internal algorithms within the starter. Each has its place, and the best choice depends on the application's criticality and budget.
| Protection Method | Pros | Cons |
|---|---|---|
| Sensor-Based (External) e.g., Flow Switches, Pressure Sensors, Level Probes | - Direct measurement of the physical process. - Very reliable when properly installed and maintained. | - Adds cost, complexity, and wiring. - Sensors can fail, clog, or require calibration. - Creates additional potential points of failure. |
| Sensorless (Internal Algorithm) e.g., VFD/Starter Power Monitoring | - No external hardware required. - Lower installation cost and complexity. - Integrated into the motor control unit. | - Relies on precise calibration and tuning. - Can be less accurate in variable-load applications. - Performance depends on the quality of the starter's algorithm. |
The hardware you choose dictates the level of protection your pump motor receives. The market offers a spectrum of solutions, from basic electromechanical devices to sophisticated, data-driven systems. Making the right choice involves matching the technology to the application's needs and long-term goals.
The classic star-delta starter is a workhorse for reducing start-up stress on both the motor and the power supply. By starting the motor in a "star" connection, it limits the initial voltage and reduces inrush current to about one-third of a direct-on-line start. This is particularly beneficial for high-inertia loads like large centrifugal fans, making it a common choice for motor starters for fans control where a soft start is needed to prevent belt slippage or mechanical shock.
An Intelligent Motor starter represents a significant leap forward. It replaces discrete components with an integrated, microprocessor-based unit that offers comprehensive protection and data. When selecting one, look for these key features:
Digital Display: Provides real-time readouts of current, voltage, and power, simplifying diagnostics.
Fault Logging: Stores a history of trip events, helping technicians quickly identify the root cause of a problem.
Programmable Under-Load Protection: Allows you to set a specific low-power threshold and delay time to create customized dry-run protection.
Communication Protocols: Built-in Modbus, Profibus, or Ethernet/IP allows for integration with a central SCADA or BMS system for remote monitoring and control.

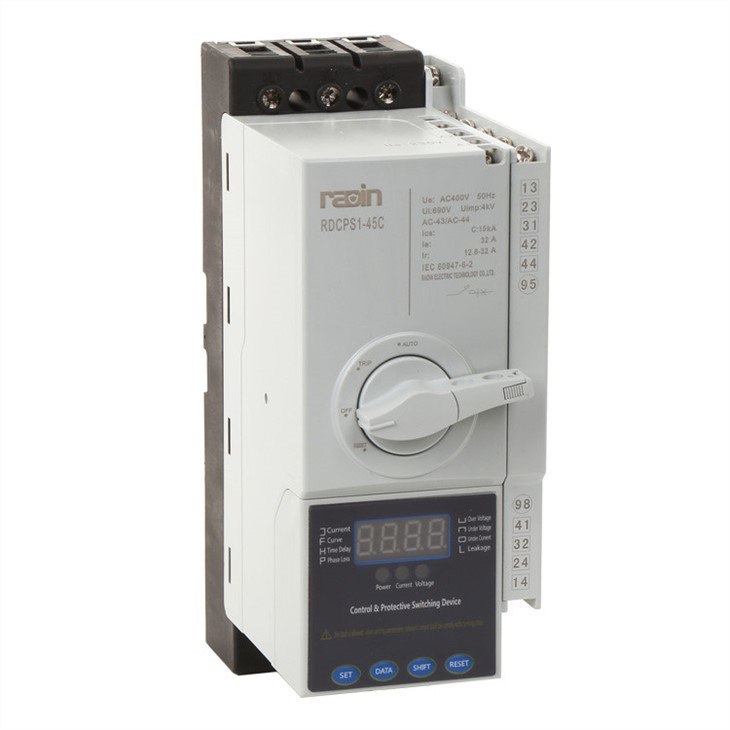

An All in one motor starter, also known as a Motor Protection Circuit Breaker (MPCB) or Control and Protective Switching Device (CPS), offers a compelling return on investment. It combines the functions of a contactor, thermal overload relay, and phase failure protection into a single, compact device. This consolidation delivers several advantages:
Reduced Panel Space: A smaller footprint allows for more compact control panels.
Simplified Wiring: Fewer components mean less wiring time and fewer potential connection failures.
Guaranteed Coordination: The components are designed and tested to work together perfectly, ensuring reliable protection.
When evaluating options from any Motor starter manufacturer, go beyond the basic specifications. Here’s what to demand to ensure you get a robust and flexible solution:
Adjustable Trip Classes: A starter should offer selectable trip classes (e.g., Class 10, 20, 30). Class 10 is for standard starts, while Class 30 allows for longer acceleration times needed for high-inertia loads without nuisance tripping.
Wide Adjustment Range: Look for a wide current adjustment range on the overload setting. This provides flexibility if the motor is ever replaced with a slightly different model.
Communication Compatibility: Ensure the device supports the communication protocol used in your facility (e.g., Modbus/RTU, Profinet) for seamless integration.
Certifications and Standards: Verify that the starter meets relevant UL, CE, and IEC standards for safety and performance.
Even the most advanced motor starter is ineffective if not calibrated correctly. Proper implementation is a balancing act: setting protection thresholds tight enough to prevent damage but loose enough to avoid nuisance trips that disrupt operations. Following industry best practices is key to achieving this balance.
The National Electrical Code (NEC) generally requires the thermal overload trip setting not to exceed 125% of the motor's Full Load Amps (FLA) rating from its nameplate. However, a common point of confusion arises with the service factor (SF). Some motors have a service factor of 1.15, meaning they can safely handle a 15% overload. The 125% rule accounts for this.
Best Practice: First, check the motor starter's documentation. Some electronic starters have the 125% factor built-in, meaning you should set the trip to the exact FLA on the nameplate. For traditional bimetallic starters, you will likely need to manually set it to 125% of the FLA. Misinterpreting this is a leading cause of both nuisance trips (set too low) and motor damage (set too high).
The magnetic trip function provides instantaneous protection against severe overcurrents, like a short circuit. However, it must be set high enough to ignore the motor's normal inrush current during startup, which can be up to 800% of the FLA for a fraction of a second. Setting the magnetic trip too low will cause the starter to trip every time the pump starts. The starter's manual will provide guidance on setting this based on the motor type and starting method.
When implementing under-load or dry-run protection, an instantaneous trip can be problematic. Momentary air bubbles in the pipeline or sudden pressure surges can cause a brief drop in motor load, triggering a false alarm.
Best Practice: Implement a time delay of 2-5 seconds. The starter should only trip if the low-load condition persists continuously for this duration. This simple logic filter allows the system to ride through transient conditions without causing unnecessary downtime, while still providing rapid protection for a true dry-running event.
While it may seem safer to set the undervoltage trip point higher (e.g., at 95% of nominal voltage), this often leads to system instability. Power grids experience minor, normal voltage sags. A 95% threshold can cause frequent trips from these insignificant fluctuations. The industry-standard benchmark, as guided by NEMA, is to set the undervoltage trip at 90% of the nominal voltage. This provides robust protection against harmful brownouts without being overly sensitive to normal grid behavior.
Investing in advanced motor protection is not just an expense; it's a strategic decision that lowers the total cost of ownership for your pumping systems. The return on investment (ROI) is realized through reduced downtime, lower maintenance costs, improved energy efficiency, and mitigated operational risks.
The core value proposition is shifting from a reactive to a preventative maintenance model. Consider the true cost of a motor failure. It's not just the price of a new motor. It includes:
The cost of emergency labor, often at premium overtime rates.
Rental costs for cranes or specialized equipment needed to pull a large pump.
The value of lost production or services while the pump is offline.
When you compare the cost of a $10,000 pump rewind and associated downtime against the upfront cost of a $500 intelligent starter that could have prevented the failure, the ROI becomes immediately clear.
Modern intelligent motor starters contribute to energy savings beyond basic protection. By closely monitoring motor parameters, they can provide data on power factor. Poor power factor means you are drawing more current than necessary to do the work, which can lead to penalties from the utility company. Some advanced starters can even help optimize motor performance to improve efficiency and reduce peak demand charges, directly impacting your electricity bill.
Choosing the right hardware today prepares you for the needs of tomorrow. Opting for modular systems with communication capabilities is a future-proof strategy. As your facility moves toward greater automation and centralized control (SCADA), a starter with a Modbus or Profinet module can be easily integrated. This scalability allows you to start with a standalone protective device and later connect it to a larger network without needing to replace the core hardware.
In critical applications, the ability to recover quickly from a fault is paramount. This is where the concept of "Type 2 Coordination" comes in. This IEC standard ensures that after a short-circuit fault, the starter and its associated components are not only safe but also immediately reusable. A Type 1 coordinated starter may need to be replaced after a fault, extending downtime. Investing in Type 2 rated equipment is an investment in operational resilience, significantly mitigating the risk of prolonged outages.
The paradigm for protecting water pump motors has fundamentally shifted. We've moved from relying on simple, reactive components to implementing proactive, intelligent systems that diagnose and prevent failures before they occur. A modern protection strategy is not about a single device but a holistic understanding of the electrical and physical forces at play. For critical water infrastructure, prioritizing starters with power-based dry-run detection and instantaneous phase-loss sensitivity is no longer an option—it's a necessity for ensuring reliability and managing operational costs. Your next step should be a thorough audit of your current pump control panels to assess their compliance with modern NEMA and IEC protection standards and identify opportunities for upgrades to multi-function motor starters.
A: A standard Motor starter typically consists of discrete components like a contactor and a bimetallic overload relay. An intelligent motor starter is an integrated, microprocessor-based device. It combines multiple protection functions (overload, phase loss, under-load) and often includes digital displays, fault logging, and communication capabilities for remote monitoring, providing far more data and protection in a single unit.
A: The most common reason is an incorrectly set magnetic trip function. Motors draw a very high inrush current for a fraction of a second when starting. If the magnetic protection is set too sensitively, it mistakes this normal inrush for a short circuit and trips. The setting must be adjusted to allow this temporary peak current to pass while still protecting against a genuine fault.
A: No, not by itself. A star-delta starter's primary function is to reduce inrush current during startup. Its standard thermal overload relay only protects against high-current (overload) conditions. To protect against dry running, which is a low-current (under-load) condition, you must add a separate under-load relay or use an intelligent starter with this function built-in.
A: The best protection is a modern electronic overload relay or an intelligent motor starter with dedicated phase-loss detection. These devices monitor the voltage and current in all three phases continuously. If one phase is lost, they can trip the motor in under three seconds, preventing the rapid winding overheating that would otherwise destroy the motor.
A: Yes, absolutely. An all-in-one motor starter (or CPS) is highly versatile. It provides overload, short-circuit, and often phase-loss protection in one compact unit. For fan control, especially on high-inertia fans, you should choose a model with an adjustable trip class (e.g., Class 20 or 30) to accommodate the longer startup time without causing a nuisance trip.
